Koch curve
You are encouraged to solve this task according to the task description, using any language you may know.
Draw a Koch curve. See details: Koch curve
Action!
Action! language does not support recursion. Therefore an iterative approach with a stack has been proposed.
INCLUDE "H6:REALMATH.ACT"
DEFINE MAXSIZE="20"
INT ARRAY SinTab=[
0 4 9 13 18 22 27 31 36 40 44 49 53 58 62 66 71 75 79 83
88 92 96 100 104 108 112 116 120 124 128 132 136 139 143
147 150 154 158 161 165 168 171 175 178 181 184 187 190
193 196 199 202 204 207 210 212 215 217 219 222 224 226
228 230 232 234 236 237 239 241 242 243 245 246 247 248
249 250 251 252 253 254 254 255 255 255 256 256 256 256]
BYTE ARRAY
depthStack(MAXSIZE),stageStack(MAXSIZE)
BYTE stacksize=[0]
INT FUNC Sin(INT a)
WHILE a<0 DO a==+360 OD
WHILE a>360 DO a==-360 OD
IF a<=90 THEN
RETURN (SinTab(a))
ELSEIF a<=180 THEN
RETURN (SinTab(180-a))
ELSEIF a<=270 THEN
RETURN (-SinTab(a-180))
ELSE
RETURN (-SinTab(360-a))
FI
RETURN (0)
INT FUNC Cos(INT a)
RETURN (Sin(a-90))
BYTE FUNC IsEmpty()
IF stacksize=0 THEN RETURN (1) FI
RETURN (0)
BYTE FUNC IsFull()
IF stacksize=MAXSIZE THEN RETURN (1) FI
RETURN (0)
PROC Push(BYTE depth,stage)
IF IsFull() THEN Break() FI
depthStack(stacksize)=depth
stageStack(stackSize)=stage
stacksize==+1
RETURN
PROC Pop(BYTE POINTER depth,stage)
IF IsEmpty() THEN Break() FI
stacksize==-1
depth^=depthStack(stacksize)
stage^=stageStack(stacksize)
RETURN
PROC DrawKoch(INT x,y REAL POINTER len BYTE depth)
BYTE stage
INT angle=[180],c
REAL rx,ry,r256,tmp1,tmp2
IntToReal(x,rx)
IntToReal(y,ry)
IntToReal(256,r256)
Push(depth,0)
WHILE IsEmpty()=0
DO
Pop(@depth,@stage)
IF depth=0 THEN
Plot(x,y)
;x==+Cos(angle)*len/256
c=Cos(angle)
IntToRealForNeg(c,tmp1)
RealDiv(tmp1,r256,tmp2)
RealMult(tmp2,len,tmp1)
RealAdd(rx,tmp1,tmp2)
RealAssign(tmp2,rx)
x=RealToInt(rx)
;y==-Sin(angle)*len/256
c=Sin(angle)
IntToRealForNeg(c,tmp1)
RealDiv(tmp1,r256,tmp2)
RealMult(tmp2,len,tmp1)
RealSub(ry,tmp1,tmp2)
RealAssign(tmp2,ry)
y=RealToInt(ry)
DrawTo(x,y)
ELSE
IF stage=1 THEN
angle==-60
ELSEIF stage=2 THEN
angle==+120
ELSEIF stage=3 THEN
angle==-60
FI
IF stage<=3 THEN
Push(depth,stage+1)
Push(depth-1,0)
FI
FI
OD
RETURN
PROC Main()
BYTE CH=$02FC,COLOR1=$02C5,COLOR2=$02C6
REAL len
Graphics(8+16)
Color=1
COLOR1=$0C
COLOR2=$02
ValR("3.7",len)
DrawKoch(10,140,len,4)
DO UNTIL CH#$FF OD
CH=$FF
RETURN- Output:
Screenshot from Atari 8-bit computer
Ada
with Ada.Command_Line;
with Ada.Numerics.Generic_Elementary_Functions;
with Ada.Text_IO;
with PDF_Out;
procedure Koch_Curve is
package Real_Math is
new Ada.Numerics.Generic_Elementary_Functions (PDF_Out.Real);
use Real_Math, PDF_Out, Ada.Command_Line, Ada.Text_IO;
subtype Angle_Deg is Real;
type Level_Type is range 0 .. 7;
Purple : constant Color_Type := (0.7, 0.0, 0.5);
Length : constant Real := 400.0;
Corner : constant Point := (90.0, 580.0);
Level : Level_Type;
Current : Point := (0.0, 0.0);
Direction : Angle_Deg := Angle_Deg'(60.0);
Doc : PDF_Out_File;
procedure Koch (Level : Level_Type; Length : Real) is
begin
if Level = 0 then
Current := Current + Length * Point'(Sin (Direction, 360.0),
Cos (Direction, 360.0));
Doc.Line (Corner + Current);
else
Koch (Level - 1, Length / 3.0); Direction := Direction - 60.0;
Koch (Level - 1, Length / 3.0); Direction := Direction + 120.0;
Koch (Level - 1, Length / 3.0); Direction := Direction - 60.0;
Koch (Level - 1, Length / 3.0);
end if;
end Koch;
begin
if Argument_Count /= 1 then
Put_Line ("koch_curve <level>");
Put_Line (" <level> 0 .. 7");
Put_Line ("open koch.pdf to view ouput");
return;
end if;
Level := Level_Type'Value (Argument (1));
Doc.Create ("koch.pdf");
Doc.Page_Setup (A4_Portrait);
Doc.Margins (Margins_Type'(Left => Cm_2_5,
others => One_cm));
Doc.Color (Purple);
Doc.Move (Corner);
for A in 1 .. 3 loop
Koch (Level, Length);
Direction := Direction + 120.0;
end loop;
Doc.Finish_Path (Close_Path => True,
Rendering => Fill,
Rule => Even_Odd);
Doc.Close;
end Koch_Curve;
ALGOL 68
Generates an SVG file containing the curve using the L-System. Very similar to the Algol 68 Sierpinski square curve sample.
Note the Algol 68 L-System library source code is on a separate page on Rosetta Code - follow the above link and then to the Talk page.
BEGIN # Koch Curve in SVG #
# uses the RC Algol 68 L-System library for the L-System evaluation & #
# interpretation #
PR read "lsystem.incl.a68" PR # include L-System utilities #
PROC koch curve = ( STRING fname, INT size, length, order, init x, init y )VOID:
IF FILE svg file;
BOOL open error := IF open( svg file, fname, stand out channel ) = 0
THEN
# opened OK - file already exists and #
# will be overwritten #
FALSE
ELSE
# failed to open the file #
# - try creating a new file #
establish( svg file, fname, stand out channel ) /= 0
FI;
open error
THEN # failed to open the file #
print( ( "Unable to open ", fname, newline ) );
stop
ELSE # file opened OK #
REAL x := init x;
REAL y := init y;
INT angle := 0;
put( svg file, ( "<svg xmlns='http://www.w3.org/2000/svg' width='"
, whole( size, 0 ), "' height='", whole( size, 0 ), "'>"
, newline, "<rect width='100%' height='100%' fill='white'/>"
, newline, "<path stroke-width='1' stroke='black' fill='none' d='"
, newline, "M", whole( x, 0 ), ",", whole( y, 0 ), newline
)
);
LSYSTEM ssc = ( "F++F++F"
, ( "F" -> "F-F++F-F"
)
);
STRING curve = ssc EVAL order;
curve INTERPRET ( ( CHAR c )VOID:
IF c = "F" THEN
x +:= length * cos( angle * pi / 180 );
y +:= length * sin( angle * pi / 180 );
put( svg file, ( " L", whole( x, 0 ), ",", whole( y, 0 ), newline ) )
ELIF c = "+" THEN
angle +:= 60 MODAB 360
ELIF c = "-" THEN
angle -:= 60 MODAB 360
FI
);
put( svg file, ( "'/>", newline, "</svg>", newline ) );
close( svg file )
FI # sierpinski square # ;
koch curve( "koch.svg", 600, 5, 4, 150, 150 )
ENDAmazing Hopper
Based on C++ code. Execute:
hopper src/kock_curve.com > kockcurve.svg
or
./src/kock_curve.com > kockcurve.svg
#!/usr/bin/hopper
#include <hopper.h>
#proto generateKockCurve(_S_,_I_)
#proto kochPoints(_S_,_I_)
#proto kochNext(_P_)
main:
SQRT3_2 = 0.86602540378444
_generate Kock Curve (600, 5)
exit(0)
.locals
generate Kock Curve (_SIZE_, _ITERATIONS_)
{"<svg xmlns='http://www.w3.org/2000/svg' width='"}
{_SIZE_,"' height='",_SIZE_,"'>\n"}
{"<rect width='100%' height='100%' fill='black'/>\n"}
{"<path stroke-width='1' stroke='white' fill='none' d='"} print
points=0, let( points := _koch Points(_SIZE_, _ITERATIONS_) )
vSize=0,size(points),mov(vSize),rows(vSize,nRows)
for (i = 1; n= nRows, {i}lethan(n), ++i)
iif( {i,1} eq?, {"M"} , {"L"}), [i,1]get(points), {","}, [i,2]get(points), {"\n"},print
next
{"z'/>\n</svg>\n"}print
back
koch Points(_SIZE_, _ITERATIONS_)
#hl {
Length = ((_SIZE_ * SQRT3_2) * 0.95)
x = (_SIZE_ - Length)/2
y = ((_SIZE_/2) - (Length * SQRT3_2 / 3))
}
points={}
{x, y},addrow(points)
{x} PLUS ( {Length}div by(2) ), {y} PLUS ( {Length} mul by ( SQRT3_2)), addrow(points)
{x} plus ( Length), {y},addrow(points)
{x, y},addrow(points)
for ( i = 1, {i} lethan ( _ITERATIONS_), ++i)
let clear( points := _koch Next(points))
next
{points}
back
koch Next(points)
vSize=0,size(points),mov(vSize)
rows(vSize,nRows)
output={}
x0 = 0,y0=0, x1=0, y1=0
for ( i = 1, {i}plus(1) lethan( nRows ), ++i)
#hl{
x0 = points[i,1]
y0 = points[i,2]
x1 = points[(i + 1),1]
y1 = points[(i + 1),2]
dy = y1 - y0
dx = x1 - x0
}
{x0, y0} addrow(output)
#hl{
x0 + (dx/3)
y0 + (dy/3)
}, addrow(output)
#hl{
x0 + (dx/2) - (dy * (SQRT3_2/3))
y0 + (dy/2) + (dx * (SQRT3_2/3))
},addrow(output)
#hl{
x0 + (2 * (dx/3))
y0 + (2 * (dy/3))
},addrow(output)
next
#hl{
x1
y1
},addrow(output)
{output}
backAutoHotkey
Requires Gdip Library
gdip1()
KochX := 0, KochY := 0
Koch(0, 0, A_ScreenWidth, A_ScreenHeight, 4, Arr:=[])
xmin := xmax := ymin := ymax := 0
for i, point in Arr
{
xmin := A_Index = 1 ? point.x : xmin < point.x ? xmin : point.x
xmax := point.x > xmax ? point.x : xmax
ymin := A_Index = 1 ? point.y : ymin < point.y ? ymin : point.y
ymax := point.y > ymax ? point.y : ymax
}
for i, point in Arr
points .= point.x - xmin + KochX "," point.y - ymin + KochY "|"
points := Trim(points, "|")
Gdip_DrawLines(G, pPen, Points)
UpdateLayeredWindow(hwnd1, hdc, 0, 0, Width, Height)
return
; ---------------------------------------------------------------
Koch(x1, y1, x2, y2, iter, Arr) {
Pi := 3.141592653589793
angle := Pi / 3 ; 60 degrees
x3 := (x1*2 + x2) / 3
y3 := (y1*2 + y2) / 3
x4 := (x1 + x2*2) / 3
y4 := (y1 + y2*2) / 3
x5 := x3 + (x4-x3)*Cos(angle) + (y4-y3)*Sin(angle)
y5 := y3 - (x4-x3)*Sin(angle) + (y4-y3)*Cos(angle)
if (iter > 0)
{
iter--
koch(x1, y1, x3, y3, iter, Arr)
koch(x3, y3, x5, y5, iter, Arr)
koch(x5, y5, x4, y4, iter, Arr)
koch(x4, y4, x2, y2, iter, Arr)
}
else
{
Arr[Arr.count()+1, "x"] := x1, Arr[Arr.count(), "y"] := y1
Arr[Arr.count()+1, "x"] := x3, Arr[Arr.count(), "y"] := y3
Arr[Arr.count()+1, "x"] := x5, Arr[Arr.count(), "y"] := y5
Arr[Arr.count()+1, "x"] := x4, Arr[Arr.count(), "y"] := y4
Arr[Arr.count()+1, "x"] := x2, Arr[Arr.count(), "y"] := y2
}
}
; ---------------------------------------------------------------
gdip1(){
global
If !pToken := Gdip_Startup()
{
MsgBox, 48, gdiplus error!, Gdiplus failed to start. Please ensure you have gdiplus on your system
ExitApp
}
OnExit, Exit
Width := A_ScreenWidth, Height := A_ScreenHeight
Gui, 1: -Caption +E0x80000 +LastFound +OwnDialogs +Owner +AlwaysOnTop
Gui, 1: Show, NA
hwnd1 := WinExist()
hbm := CreateDIBSection(Width, Height)
hdc := CreateCompatibleDC()
obm := SelectObject(hdc, hbm)
G := Gdip_GraphicsFromHDC(hdc)
Gdip_SetSmoothingMode(G, 4)
pPen := Gdip_CreatePen(0xFFFF0000, 2)
}
; ---------------------------------------------------------------
gdip2(){
global
Gdip_DeleteBrush(pBrush)
Gdip_DeletePen(pPen)
SelectObject(hdc, obm)
DeleteObject(hbm)
DeleteDC(hdc)
Gdip_DeleteGraphics(G)
}
; ---------------------------------------------------------------
Exit:
gdip2()
Gdip_Shutdown(pToken)
ExitApp
Return
BASIC256
global RtoD, DtoR
RtoD = 180 / Pi
DtoR = Pi / 180
global posX, posY, angulo
posX = 170 : posY = 100 : angulo = 0
global ancho, alto
ancho = 650 : alto = 650
graphsize ancho, alto
subroutine kochLado(longitud, fondo)
if fondo = 0 then
dx = cos(angulo*DtoR) * longitud
dy = sin(angulo*DtoR) * longitud
color rgb(5,100,24)
line (posX, posY, posX+dx, posY+dy)
posX += dx
posY += dy
else
call kochLado(longitud/3.0, fondo-1)
angulo += 60
call kochLado(longitud/3.0, fondo-1)
angulo -= 120
call kochLado(longitud/3.0, fondo-1)
angulo += 60
call kochLado(longitud/3.0, fondo-1)
end if
end subroutine
subroutine CopoNieveKoch(longitud, recursionfondo)
for i = 1 to 6
call kochLado(longitud,recursionfondo)
angulo -= 300
next i
end subroutine
for n = 0 To 7
clg
fastgraphics
text 3,4, "Copo de nieve de Koch"
text 4,16, "Iteración número: " & n
call CopoNieveKoch(280, n)
pause 0.8
refresh
next n
imgsave "Koch_curve.jpg", "jpg"
endC
Interactive program which takes the width, height (of the Graphics window) and recursion level of the Koch curve as inputs, prints out usage on incorrect invocation. Requires the WinBGIm library.
#include<graphics.h>
#include<stdlib.h>
#include<stdio.h>
#include<math.h>
#define pi M_PI
typedef struct{
double x,y;
}point;
void kochCurve(point p1,point p2,int times){
point p3,p4,p5;
double theta = pi/3;
if(times>0){
p3 = (point){(2*p1.x+p2.x)/3,(2*p1.y+p2.y)/3};
p5 = (point){(2*p2.x+p1.x)/3,(2*p2.y+p1.y)/3};
p4 = (point){p3.x + (p5.x - p3.x)*cos(theta) + (p5.y - p3.y)*sin(theta),p3.y - (p5.x - p3.x)*sin(theta) + (p5.y - p3.y)*cos(theta)};
kochCurve(p1,p3,times-1);
kochCurve(p3,p4,times-1);
kochCurve(p4,p5,times-1);
kochCurve(p5,p2,times-1);
}
else{
line(p1.x,p1.y,p2.x,p2.y);
}
}
int main(int argC, char** argV)
{
int w,h,r;
point p1,p2;
if(argC!=4){
printf("Usage : %s <window width> <window height> <recursion level>",argV[0]);
}
else{
w = atoi(argV[1]);
h = atoi(argV[2]);
r = atoi(argV[3]);
initwindow(w,h,"Koch Curve");
p1 = (point){10,h-10};
p2 = (point){w-10,h-10};
kochCurve(p1,p2,r);
getch();
closegraph();
}
return 0;
}
C++
The output of this program is an SVG file depicting a Koch snowflake.
// See https://en.wikipedia.org/wiki/Koch_snowflake
#include <fstream>
#include <iostream>
#include <vector>
constexpr double sqrt3_2 = 0.86602540378444; // sqrt(3)/2
struct point {
double x;
double y;
};
std::vector<point> koch_next(const std::vector<point>& points) {
size_t size = points.size();
std::vector<point> output(4*(size - 1) + 1);
double x0, y0, x1, y1;
size_t j = 0;
for (size_t i = 0; i + 1 < size; ++i) {
x0 = points[i].x;
y0 = points[i].y;
x1 = points[i + 1].x;
y1 = points[i + 1].y;
double dy = y1 - y0;
double dx = x1 - x0;
output[j++] = {x0, y0};
output[j++] = {x0 + dx/3, y0 + dy/3};
output[j++] = {x0 + dx/2 - dy * sqrt3_2/3, y0 + dy/2 + dx * sqrt3_2/3};
output[j++] = {x0 + 2 * dx/3, y0 + 2 * dy/3};
}
output[j] = {x1, y1};
return output;
}
std::vector<point> koch_points(int size, int iterations) {
double length = size * sqrt3_2 * 0.95;
double x = (size - length)/2;
double y = size/2 - length * sqrt3_2/3;
std::vector<point> points{
{x, y},
{x + length/2, y + length * sqrt3_2},
{x + length, y},
{x, y}
};
for (int i = 0; i < iterations; ++i)
points = koch_next(points);
return points;
}
void koch_curve_svg(std::ostream& out, int size, int iterations) {
out << "<svg xmlns='http://www.w3.org/2000/svg' width='"
<< size << "' height='" << size << "'>\n";
out << "<rect width='100%' height='100%' fill='black'/>\n";
out << "<path stroke-width='1' stroke='white' fill='none' d='";
auto points(koch_points(size, iterations));
for (size_t i = 0, n = points.size(); i < n; ++i)
out << (i == 0 ? "M" : "L") << points[i].x << ',' << points[i].y << '\n';
out << "z'/>\n</svg>\n";
}
int main() {
std::ofstream out("koch_curve.svg");
if (!out) {
std::cerr << "Cannot open output file\n";
return EXIT_FAILURE;
}
koch_curve_svg(out, 600, 5);
return EXIT_SUCCESS;
}
- Output:
Delphi
Fancy version, shows six iterations of both single-line and triangle version drawn to graphics screen. Uses vector libraries to simplify the process
{===== These routines would normally be in extermal ======}
{===== libraries, but they are presented here for clarity ======}
type T2DVector=packed record
X,Y: double;
end;
type T2DLine = packed record
P1,P2: T2DVector;
end;
procedure ClearImage(Image: TImage; Color: TColor);
var R: TRect;
begin
R:=Rect(0,0,Image.Picture.Bitmap.Width,Image.Picture.Bitmap.Height);
Image.Canvas.Brush.Color:=Color;
Image.Canvas.Brush.Style:=bsSolid;
Image.Canvas.Pen.Mode:=pmCopy;
Image.Canvas.Pen.Style:=psSolid;
Image.Canvas.Pen.Color:=Color;
Image.Canvas.Rectangle(R);
Image.Invalidate;
end;
procedure DrawLine2D(Canvas: TCanvas; L: T2DLine; C: TColor);
{Draw Line on specified canvas}
begin
Canvas.Pen.Color:=C;
Canvas.MoveTo(Trunc(L.P1.X),Trunc(L.P1.Y));
Canvas.LineTo(Trunc(L.P2.X),Trunc(L.P2.Y));
end;
function MakeVector2D(const X,Y: double): T2DVector;
{Create 2D Vector from X and Y}
begin
Result.X:=X;
Result.Y:=Y;
end;
function VectorAdd2D(const V1,V2: T2DVector): T2DVector;
{Add V1 and V2}
begin
Result.X:= V1.X + V2.X;
Result.Y:= V1.Y + V2.Y;
end;
function VectorSubtract2D(const V1,V2: T2DVector): T2DVector;
{Subtract V2 from V1}
begin
Result.X:= V1.X - V2.X;
Result.Y:= V1.Y - V2.Y;
end;
function VectorABS2D(const V: T2DVector): double;
{Find ABS of vector}
begin
Result:=Sqrt(Sqr(V.X) + Sqr(V.Y));
end;
function LineLength2D(const L: T2DLine) : double; overload;
{ Find length of a line defined by P1 and P2 }
begin
Result:=VectorABS2D(VectorSubtract2D(L.P2,L.P1));
end;
function ScalarDivide2D(const V: T2DVector; const S: double): T2DVector;
{Divide vector by scalar}
begin
Result.X:=V.X / S;
Result.Y:=V.Y / S;
end;
function ScalarProduct2D(const V: T2DVector; const S: double): T2DVector;
{Multiply vector by scalar}
begin
Result.X:=V.X * S;
Result.Y:=V.Y * S;
end;
function UnitVector2D(const V: T2DVector): T2DVector;
{Return unit vector}
var L: double;
begin
L:=VectorABS2D(V);
if L=0.0 then L:=1E-99;
Result.X:=V.X / L;
Result.Y:=V.Y / L;
end;
function GetUnitNormal2D(const V: T2DVector): T2DVector; overload;
{Returns perpendicular unit vector}
begin
Result:=UnitVector2D(MakeVector2D(-V.Y, V.X));
end;
function ExtendLine2D(const L1: T2DLine; const Len: double): T2DVector;
{ Return a point that extends line L1 by Len }
var Len1,UX,UY : double;
begin
Len1 := LineLength2D(L1)+1E-9;
UX := (L1.P2.X - L1.P1.X)/Len1;
UY := (L1.P2.Y - L1.P1.Y)/Len1;
Result.X := L1.P2.X +(UX *Len);
Result.Y := L1.P2.Y+(UY *Len);
end;
{---------------------------------------------------------------------------}
{Array of lines to contain the snow flake}
type TLineArray = array of T2DLine;
{Screen and display parameters}
var ScreenSize: TPoint;
var SquareBox: TRect;
var BoxSize: integer;
procedure ConfigureScreen(Image: TImage);
{Setup screen parameters based Image component}
begin
ScreenSize:=Point(Image.Width, Image.Height);
if ScreenSize.X<ScreenSize.Y then BoxSize:=ScreenSize.X
else BoxSize:=ScreenSize.Y;
SquareBox:=Rect(0,0,BoxSize,BoxSize);
OffsetRect(SquareBox,(ScreenSize.X-BoxSize) div 2,(ScreenSize.Y-BoxSize) div 2);
end;
procedure DrawLines(Canvas: TCanvas; Lines: TLineArray);
{Draw all the lines in the snow flake}
var I: integer;
begin
for I:=0 to High(Lines) do
DrawLine2D(Canvas,Lines[I],clRed);
end;
procedure BreakLine(L: T2DLine; var L1,L2,L3,L4: T2DLine);
{Break one line into the four new lines of the next iteration}
var Len,Len3,O: double;
var Delta: TPoint;
var P1,P2,P3,P4,P5,Half: T2DVector;
begin
Len:=LineLength2D(L);
Len3:=Len/3;
O:= Sqrt(sqr(Len3)-sqr(Len3/2));
P1:=L.P1;
P2:=ExtendLine2D(L,-Len3*2);
P4:=ExtendLine2D(L,-Len3);
P5:=L.P2;
Half:=ScalarDivide2D(VectorAdd2D(P4,P2),2);
P3:=GetUnitNormal2D(VectorSubtract2D(P4,P2));
P3:=ScalarProduct2D(P3,O);
P3:=VectorAdd2D(P3,Half);
L1.P1:=P1; L1.P2:=P2;
L2.P1:=P2; L2.P2:=P3;
L3.P1:=P3; L3.P2:=P4;
L4.P1:=P4; L4.P2:=P5;
end;
procedure BreakAndStoreLines(Line: T2DLine; var Lines: TLineArray);
{Break one line and store the resulting four in array}
var Len: integer;
begin
Len:=Length(Lines);
SetLength(Lines,Len+4);
BreakLine(Line, Lines[Len+0],Lines[Len+1],Lines[Len+2],Lines[Len+3]);
end;
procedure BreakArray(var Lines: TLineArray);
{Break all the lines in an array and replace them with new lines}
var I: integer;
var AT: TLineArray;
begin
AT:=Lines;
SetLength(Lines,0);
for I:=0 to High(AT) do
BreakAndStoreLines(AT[I], Lines);
end;
procedure LineSeed(var Lines: TLineArray);
{Put single line seed in array}
var Border: integer;
begin
Border:=MulDiv(BoxSize,10,100);
SetLength(Lines,1);
Lines[0].P1:=MakeVector2D(SquareBox.Left + Border, SquareBox.Top + Border);
Lines[0].P2:=MakeVector2D(SquareBox.Right - Border, SquareBox.Top + Border);
end;
procedure TriangleSeed(var Lines: TLineArray);
{Put triangle seed in array}
const Border = 15;
var R: TRect;
var PixelBorder: integer;
var H: double;
begin
SetLength(Lines,3);
PixelBorder:=MulDiv(BoxSize,Border,100);
R.Left:=SquareBox.Left + PixelBorder;
R.Right:=SquareBox.Right - PixelBorder;
R.Top:=SquareBox.Top + MulDiv(PixelBorder,1414,1000);
R.Bottom:=SquareBox.Bottom - PixelBorder;
OffsetRect(R,0,-MulDiv(BoxSize,15,100));
Lines[0].P1:=MakeVector2D(R.Left, R.Bottom);
Lines[0].P2:=MakeVector2D(R.Right, R.Bottom);
Lines[1].P1:=Lines[0].P2;
Lines[1].P2:=MakeVector2D((R.Right+R.Left) div 2,R.Top);
Lines[2].P1:=Lines[1].P2;
Lines[2].P2:=Lines[0].P1;
end;
procedure DoKochSnowFlake(Image: TImage);
{Construct and display various Koch snow flakes}
var Lines: TLineArray;
procedure IterateSnowflakes;
{Iterate through six phases of snow flakes}
var I,J: integer;
begin
for I:=1 to 6 do
begin
ClearImage(Image,clWhite);
Image.Canvas.Pen.Color:=clBlack;
Image.Canvas.Rectangle(SquareBox);
Image.Canvas.TextOut(10, 15, IntToStr(I)+' '+IntToStr(Length(Lines)));
DrawLines(Image.Canvas,Lines);
Image.Repaint;
Sleep(2000);
BreakArray(Lines);
end;
end;
begin
ConfigureScreen(Image);
{Iterate snow flake line}
LineSeed(Lines);
IterateSnowflakes;
{Iterate snow flake triangle}
TriangleSeed(Lines);
IterateSnowflakes;
end;
- Output:
EasyLang
proc koch x1 y1 x2 y2 iter . .
x3 = (x1 * 2 + x2) / 3
y3 = (y1 * 2 + y2) / 3
x4 = (x1 + x2 * 2) / 3
y4 = (y1 + y2 * 2) / 3
x5 = x3 + (x4 - x3) * cos 60 + (y4 - y3) * sin 60
y5 = y3 - (x4 - x3) * sin 60 + (y4 - y3) * cos 60
if iter > 0
iter -= 1
koch x1 y1 x3 y3 iter
koch x3 y3 x5 y5 iter
koch x5 y5 x4 y4 iter
koch x4 y4 x2 y2 iter
else
line x1 y1
line x3 y3
line x5 y5
line x4 y4
line x2 y2
.
.
linewidth 0.3
x1 = 15
y1 = 30
move x1 y1
for ang = 0 step 120 to 240
x2 = x1 + 70 * cos ang
y2 = y1 + 70 * sin ang
koch x1 y1 x2 y2 4
x1 = x2
y1 = y2
.
Factor
The approach taken is to generate a Thue-Morse sequence. Using turtle graphics, move forward for each 0 encountered and rotate 60 degrees for each 1 encountered. Remarkably, this produces a Koch curve.
USING: accessors images images.testing images.viewer kernel
literals math math.constants math.functions sequences ;
IN: rosetta-code.koch-curve
CONSTANT: order 17
CONSTANT: theta 1.047197551196598 ! 60 degrees in radians
CONSTANT: move-distance 0.25
CONSTANT: dim { 600 400 }
CONSTANT: offset-x 500
CONSTANT: offset-y 300
: <koch-image> ( -- image )
<rgb-image> dim >>dim
dim product 3 * [ 255 ] B{ } replicate-as >>bitmap ;
: thue-morse ( n -- seq )
{ 0 } swap [ [ ] [ [ 1 bitxor ] map ] bi append ] times ;
TUPLE: turtle
{ heading initial: 0 } { x initial: 0 } { y initial: 0 } ;
: turn ( turtle -- turtle' )
[ theta + 2pi mod ] change-heading ;
: move ( turtle -- turtle' )
dup heading>> [ cos move-distance * + ] curry change-x
dup heading>> [ sin move-distance * + ] curry change-y ;
: step ( turtle elt -- turtle' )
[ move ] [ drop turn ] if-zero ;
: setup-pixel ( turtle -- pixel x y )
{ 0 0 0 } swap [ x>> ] [ y>> ] bi
[ >integer ] bi@ [ offset-x + ] [ offset-y + ] bi* ;
: koch-curve ( -- )
<koch-image> turtle new over order thue-morse [
[ dup setup-pixel ] [ set-pixel-at ] [ step drop ] tri*
] 2with each image-window ;
MAIN: koch-curve
- Output:
![[1]](https://i.imgur.com/MVS8QiS.png){kind=link}
Forth
include lib/graphics.4th
include lib/math.4th
include lib/enter.4th
: (p3&p5) 2* + 3 / ; ( n1 n2 -- n2+n2+n1/3)
: (p3) rot (p3&p5) >r swap (p3&p5) r> ;
: (p5) rot swap (p3&p5) >r (p3&p5) r> ;
: (*/10K) * 10K 2 / + 10K / ; ( n1 n2 -- n1*n2/10000)
: koch ( x1 y1 x2 y2 n --)
dup 0> if
1- >r 2over 2over (p5)
2>r 2over 2over (p3) 2r> ( x1 y1 x2 y2 x3 y3 x5 y5 )
PI*10K 3 / >r 2over 2over rot - >r swap - >r ( R: n theta y5-y3 x5-x3)
2over r@ r"@ (sin) (*/10K) - r'@ r"@ (cos) (*/10K) +
swap r@ r"@ (cos) (*/10K) + r'@ r"@ (sin) (*/10K) +
rdrop rdrop rdrop swap ( x1 y1 x2 y2 x3 y3 x5 y5 x4 y4 R: n)
2rot 2>r 2>r 2rot 2r> 2r> 2rot ( x2 y2 x5 y5 x4 y4 x3 y3 x1 y1 R: n)
2over r@ recurse ( x2 y2 x5 y5 x4 y4 x3 y3 R: n )
2over r@ recurse ( x2 y2 x5 y5 x4 y4 R: n )
2over r@ recurse ( x2 y2 x5 y5 R: n)
2swap r> recurse ( --)
;then drop line
;
600 pic_width ! 600 pic_height ! \ set canvas size
color_image 255 whiteout blue \ paint blue on white
." Level (0-4): " enter 0 max 4 min >r
450 100 450 500 r@ koch \ paint the snowflake
115 300 450 100 r@ koch
450 500 115 300 r> koch
s" gkoch.ppm" save_image \ save the image
FreeBASIC
Const Pi = 4 * Atn(1)
Const RtoD = 180 / Pi
Const DtoR = Pi / 180
Dim Shared As Single posX = 260, posY = 90, angulo = 0
Screen 19 : Color 0,15
Sub kochLado(longitud As Integer, fondo As Integer)
Dim As Single dx, dy
If fondo = 0 Then
dx = Cos(angulo*DtoR) * longitud
dy = Sin(angulo*DtoR) * longitud
Line (posX, posY)-(posX+dx, posY+dy), 2
posX += dx
posY += dy
Else
kochLado(longitud/3.0, fondo-1)
angulo += 60
kochLado(longitud/3.0, fondo-1)
angulo -= 120
kochLado(longitud/3.0, fondo-1)
angulo += 60
kochLado(longitud/3.0, fondo-1)
End If
End Sub
Sub CopoNieveKoch(longitud As Integer, recursionfondo As Integer)
For i As Integer = 1 To 6
kochLado(longitud,recursionfondo)
angulo -= 300
Next i
End Sub
For n As Integer = 0 To 5
Cls
Locate 3,4: Print "Copo de nieve de Koch"
Locate 4,4: Print "Iteracion numero: " & n
CopoNieveKoch(280, n)
Sleep 800
Next n
color 4: Locate 6,4: Print "Pulsa una tecla..."
Bsave "Koch_curve.bmp",0
Sleep
End
Fōrmulæ
Fōrmulæ programs are not textual, visualization/edition of programs is done showing/manipulating structures but not text. Moreover, there can be multiple visual representations of the same program. Even though it is possible to have textual representation —i.e. XML, JSON— they are intended for storage and transfer purposes more than visualization and edition.
Programs in Fōrmulæ are created/edited online in its website.
In this page you can see and run the program(s) related to this task and their results. You can also change either the programs or the parameters they are called with, for experimentation, but remember that these programs were created with the main purpose of showing a clear solution of the task, and they generally lack any kind of validation.
Solution
It can be done using an L-system. There are generic functions written in Fōrmulæ to compute an L-system in the page L-system.
The program that creates a Koch curve is:
Go
package main
import (
"github.com/fogleman/gg"
"math"
)
var dc = gg.NewContext(512, 512)
func koch(x1, y1, x2, y2 float64, iter int) {
angle := math.Pi / 3 // 60 degrees
x3 := (x1*2 + x2) / 3
y3 := (y1*2 + y2) / 3
x4 := (x1 + x2*2) / 3
y4 := (y1 + y2*2) / 3
x5 := x3 + (x4-x3)*math.Cos(angle) + (y4-y3)*math.Sin(angle)
y5 := y3 - (x4-x3)*math.Sin(angle) + (y4-y3)*math.Cos(angle)
if iter > 0 {
iter--
koch(x1, y1, x3, y3, iter)
koch(x3, y3, x5, y5, iter)
koch(x5, y5, x4, y4, iter)
koch(x4, y4, x2, y2, iter)
} else {
dc.LineTo(x1, y1)
dc.LineTo(x3, y3)
dc.LineTo(x5, y5)
dc.LineTo(x4, y4)
dc.LineTo(x2, y2)
}
}
func main() {
dc.SetRGB(1, 1, 1) // White background
dc.Clear()
koch(100, 100, 400, 400, 4)
dc.SetRGB(0, 0, 1) // Blue curve
dc.SetLineWidth(2)
dc.Stroke()
dc.SavePNG("koch.png")
}
- Output:
Image is similar to Ring entry.
Haskell
Generates SVG for a Koch snowflake. To view, save to a text file with an .svg extension, and open in a browser.
import Data.Bifunctor (bimap)
import Text.Printf (printf)
------------------------ KOCH CURVE ----------------------
kochSnowflake ::
Int ->
(Float, Float) ->
(Float, Float) ->
[(Float, Float)]
kochSnowflake n a b =
concat $
zipWith (kochCurve n) points (xs <> [x])
where
points@(x : xs) = [a, equilateralApex a b, b]
kochCurve ::
Int ->
(Float, Float) ->
(Float, Float) ->
[(Float, Float)]
kochCurve n ab xy = ab : go n (ab, xy)
where
go 0 (_, xy) = [xy]
go n (ab, xy) =
let (mp, mq) = midThirdOfLine ab xy
points@(_ : xs) =
[ ab,
mp,
equilateralApex mp mq,
mq,
xy
]
in go (pred n) =<< zip points xs
equilateralApex ::
(Float, Float) ->
(Float, Float) ->
(Float, Float)
equilateralApex = rotatedPoint (pi / 3)
rotatedPoint ::
Float ->
(Float, Float) ->
(Float, Float) ->
(Float, Float)
rotatedPoint theta (ox, oy) (a, b) = (ox + dx, oy - dy)
where
(dx, dy) = rotatedVector theta (a - ox, oy - b)
rotatedVector :: Float -> (Float, Float) -> (Float, Float)
rotatedVector angle (x, y) =
( x * cos angle - y * sin angle,
x * sin angle + y * cos angle
)
midThirdOfLine ::
(Float, Float) ->
(Float, Float) ->
((Float, Float), (Float, Float))
midThirdOfLine (a, b) (x, y) = (p, f p)
where
(dx, dy) = ((x - a) / 3, (y - b) / 3)
f = bimap (dx +) (dy +)
p = f (a, b)
-------------------------- TEST ---------------------------
main :: IO ()
main =
putStrLn $
svgFromPoints 1024 $
kochSnowflake 4 (200, 600) (800, 600)
-------------------------- SVG ----------------------------
svgFromPoints :: Int -> [(Float, Float)] -> String
svgFromPoints w xys =
unlines
[ "<svg xmlns=\"http://www.w3.org/2000/svg\"",
unwords
[ "width=\"512\" height=\"512\" viewBox=\"5 5",
sw,
sw,
"\"> "
],
"<path d=\"M" <> points <> "\" ",
unwords [
"stroke-width=\"2\"",
"stroke=\"red\"",
"fill=\"transparent\"/>"
],
"</svg>"
]
where
sw = show w
showN = printf "%.2g"
points =
( unwords
. fmap
( ((<>) . showN . fst)
<*> ((' ' :) . showN . snd)
)
)
xys
IS-BASIC
100 PROGRAM "Koch.bas"
110 OPTION ANGLE DEGREES
120 SET 22,1:SET 23,0:SET 24,42:SET 25,26
130 OPEN #101:"video:"
140 DISPLAY #101:AT 1 FROM 1 TO 26
150 SET PALETTE 0,252
160 PLOT 300,700;ANGLE 0;
170 FOR I=1 TO 3
180 CALL KOCH(0,800)
190 PLOT RIGHT 120;
200 NEXT
210 DEF KOCH(A,D)
220 IF D>12 THEN
230 LET D=D/3
240 CALL KOCH(A,D)
250 CALL KOCH(60,D)
260 CALL KOCH(-120,D)
270 CALL KOCH(60,D)
280 ELSE
290 PLOT LEFT A;FORWARD D;
300 END IF
310 END DEFJ
seg=: [ + [: +/\ (0,1r3*1,(^j.(,-)_2 o.1r2),1) * -~
koch=: [: ,/ 2 seg/\ ]
require'plot'
tri=: ^ j. 4r3 * (_2 o. 0) * i._4
plot koch ^: 5 tri
The idea is to continually expand the segments between a list of points in the complex plane. Given consecutive x and y in the list, v = (y-x)/3 is a vector representing 1/3 of the trip from x to y. An iteration building the Koch curve starts at x, advances by v, advances by v rotated by 60 degrees, advances by v rotated -60 degrees, and finally advances by another v, reaching y. x seg y produces this expansion. koch takes a list of points and expands segments between consecutive ones, producing another list. koch ^: 5 does this 5 times, and plot shows the snowflake in a window.
Java
import java.awt.Point;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.Arrays;
import java.util.ArrayList;
import java.util.List;
public final class KochCurve {
public static void main(String[] aArgs) throws IOException {
List<Point> points = initialEquilateralTriangle();
for ( int i = 1; i < 5; i++ ) {
points = nextIteration(points);
}
String text = kochCurveText(points, IMAGE_SIZE);
Files.write(Paths.get("C:/Users/psnow/Desktop/koch.svg"), text.getBytes());
}
private static List<Point> initialEquilateralTriangle() {
final int margin = 50;
final int boxSize = IMAGE_SIZE - margin;
final int sideLength = Math.round(boxSize * SIN_60_DEGREES);
final int x = ( boxSize + margin - sideLength ) / 2;
final int y = Math.round(( boxSize + margin ) / 2 - sideLength * SIN_60_DEGREES / 3);
List<Point> points = Arrays.asList(
new Point(x, y),
new Point(x + sideLength / 2, Math.round(y + sideLength * SIN_60_DEGREES)),
new Point(x + sideLength, y),
new Point(x, y)
);
return points;
}
private static List<Point> nextIteration(List<Point> aPoints) {
List<Point> result = new ArrayList<Point>();
for ( int i = 0; i < aPoints.size() - 1; i++ ) {
final int x0 = aPoints.get(i).x;
final int y0 = aPoints.get(i).y;
final int x1 = aPoints.get(i + 1).x;
final int y1 = aPoints.get(i + 1).y;
final int dy = y1 - y0;
final int dx = x1 - x0;
result.add(aPoints.get(i));
result.add( new Point(x0 + dx / 3, y0 + dy / 3) );
result.add( new Point(Math.round(x0 + dx / 2 - dy * SIN_60_DEGREES / 3),
Math.round(y0 + dy / 2 + dx * SIN_60_DEGREES / 3)) );
result.add( new Point(x0 + 2 * dx / 3, y0 + 2 * dy / 3) ) ;
}
result.add(aPoints.get(aPoints.size() - 1));
return result;
}
private static String kochCurveText(List<Point> aPoints, int aSize) {
StringBuilder text = new StringBuilder();
text.append("<svg xmlns='http://www.w3.org/2000/svg'");
text.append(" width='" + aSize + "' height='" + aSize + "'>\n");
text.append("<rect style='width:100%;height:100%;fill:cyan'/>\n");
text.append("<polygon points='");
for ( int i = 0; i < aPoints.size(); i++ ) {
text.append(aPoints.get(i).x + ", " + aPoints.get(i).y + " ");
}
text.append("' style='fill:pink;stroke:black;stroke-width:2'/>\n</svg>\n");
return text.toString();
}
private static final int IMAGE_SIZE = 700;
private static final float SIN_60_DEGREES = (float) Math.sin(Math.PI / 3.0);
}
- Output:
JavaScript
Generates SVG. To view, save to a file with the extension '.svg', and open in a browser.
(() => {
'use strict';
// kochSnowflake :: Int -> (Float, Float) -> (Float, Float)
// -> [(Float, Float)]
const kochSnowflake = n => a => b => {
// List of points on a Koch snowflake of order n, derived
// from an equilateral triangle with base a b.
const points = [a, equilateralApex(a)(b), b];
return concat(
zipWith(kochCurve(n))(points)(
points.slice(1).concat([points[0]])
)
);
};
// koch :: Int -> (Float, Float) -> (Float, Float)
// -> [(Float, Float)]
const kochCurve = n => ab => xy => {
// A Koch curve of order N, starting at the point
// (a, b), and ending at the point (x, y).
const go = n => ([ab, xy]) =>
0 !== n ? (() => {
const [mp, mq] = midThirdOfLine(ab)(xy);
const points = [
ab,
mp,
equilateralApex(mp)(mq),
mq,
xy
];
return zip(points)(points.slice(1))
.flatMap(go(n - 1))
})() : [xy];
return [ab].concat(go(n)([ab, xy]));
};
// equilateralApex :: (Float, Float) -> (Float, Float) -> (Float, Float)
const equilateralApex = p => q =>
rotatedPoint(Math.PI / 3)(p)(q);
// rotatedPoint :: Float -> (Float, Float) ->
// (Float, Float) -> (Float, Float)
const rotatedPoint = theta => ([ox, oy]) => ([a, b]) => {
// The point ab rotated theta radians
// around the origin xy.
const [dx, dy] = rotatedVector(theta)(
[a - ox, oy - b]
);
return [ox + dx, oy - dy];
};
// rotatedVector :: Float -> (Float, Float) -> (Float, Float)
const rotatedVector = theta => ([x, y]) =>
// The vector xy rotated by theta radians.
[
x * Math.cos(theta) - y * Math.sin(theta),
x * Math.sin(theta) + y * Math.cos(theta)
];
// midThirdOfLine :: (Float, Float) -> (Float, Float)
// -> ((Float, Float), (Float, Float))
const midThirdOfLine = ab => xy => {
// Second of three equal segments of
// the line between ab and xy.
const
vector = zipWith(dx => x => (dx - x) / 3)(xy)(ab),
f = zipWith(add)(vector),
p = f(ab);
return [p, f(p)];
};
// TEST -----------------------------------------------
// main :: IO ()
const main = () =>
// SVG showing a Koch snowflake of order 4.
console.log(
svgFromPoints(1024)(
kochSnowflake(5)(
[200, 600]
)([800, 600])
)
);
// SVG ----------------------------------------------
// svgFromPoints :: Int -> [(Int, Int)] -> String
const svgFromPoints = w => ps => [
'<svg xmlns="http://www.w3.org/2000/svg"',
`width="500" height="500" viewBox="5 5 ${w} ${w}">`,
`<path d="M${
ps.flatMap(p => p.map(n => n.toFixed(2))).join(' ')
}" `,
'stroke-width="2" stroke="red" fill="transparent"/>',
'</svg>'
].join('\n');
// GENERIC --------------------------------------------
// add :: Num -> Num -> Num
const add = a => b => a + b;
// concat :: [[a]] -> [a]
const concat = xs => [].concat.apply([], xs);
// zip :: [a] -> [b] -> [(a, b)]
const zip = xs => ys =>
xs.slice(
0, Math.min(xs.length, ys.length)
).map((x, i) => [x, ys[i]]);
// zipWith :: (a -> b -> c) -> [a] -> [b] -> [c]
const zipWith = f => xs => ys =>
xs.slice(
0, Math.min(xs.length, ys.length)
).map((x, i) => f(x)(ys[i]));
// MAIN ---
return main();
})();
jq
Works with gojq, the Go implementation of jq
This entry uses an L-system and turtle graphics to generate an SVG file which can be viewed using a web browser, at least if the file type is `.svg`.
See Category_talk:Jq-turtle for the turtle.jq module used here. Please note that the `include` directive may need to be modified depending on the location of the included file, and the command-line options used.
include "turtle" {search: "."};
def rules:
{ F: "F+F--F+F",
"": "F--F--F" };
def koch($count):
rules as $rules
| def repeat($count):
if $count <= 0 then .
else gsub("F"; $rules["F"])
| repeat($count-1)
end;
$rules[""] | repeat($count) ;
def interpret($x):
if $x == "+" then turtleRotate(60)
elif $x == "-" then turtleRotate(-60)
elif $x == "F" then turtleForward(4)
else .
end;
def koch_curve($n):
koch($n)
| split("")
| reduce .[] as $action (turtle([0,300]) | turtleDown;
interpret($action) ) ;
koch_curve(5)
| draw(1200)
Julia
Multiple snowflake plots. Copied from https://www.juliabloggers.com/koch-snowflakes-for-the-holidays/.
using Plots
function pointskoch(points, maxk, α = sqrt(3)/2)
Q = [0 -1; 1 0]
for k = 1:maxk
n = length(points)
new_points = Vector{Float64}[]
for i = 1:n-1
p1, p2 = points[i], points[i+1]
v = (p2 - p1) / 3
q1 = p1 + v
q2 = p1 + 1.5v + α * Q * v
q3 = q1 + v
append!(new_points, [p1, q1, q2, q3])
end
push!(new_points, points[end])
points = new_points
end
return points
end
function plot_koch(points; c=:red, kwargs...)
n = length(points)
plot(leg=false, axis=false, grid=false, background=:white)
px = [p[1] for p in points]
py = [p[2] for p in points]
plot!(px, py, c=c; kwargs...)
end
function plot_koch!(points; c=:red, kwargs...)
n = length(points)
px = [p[1] for p in points]
py = [p[2] for p in points]
plot!(px, py, c=c; kwargs...)
end
function main()
pyplot(size=(600,300))
points = [[0.0; 0.0], [1.0; 0.0]]
for k = 0:7
new_points = pointskoch(points, k)
plot_koch(new_points)
ylims!(-0.1, 0.4)
png("line-koch-$k")
end
pyplot(size=(200,200))
for N = 2:8
points = [[sin(2π*i/N), cos(2π*i/N)] for i = 0:N]
plot_koch(points, c=:blue)
points = pointskoch(points, 6)
plot_koch!(points)
xlims!(-1.5, 1.5)
ylims!(-1.5, 1.5)
png("polygon-$N")
points = [[sin(2π*i/N), cos(2π*i/N)] for i = N:-1:0]
plot_koch(points, c=:blue)
points = pointskoch(points, 6)
plot_koch!(points)
xlims!(-1.5, 1.5)
ylims!(-1.5, 1.5)
png("polygon-reverse-$N")
if N > 2
points = [[sin(2π*i/N), cos(2π*i/N)] for i = N:-1:0]
α = 0.85 / tan(π / N)
α = 3 * sqrt(N) / 5
points = pointskoch(points, 5, α)
plot_koch(points)
xlims!(-1.5, 1.5)
ylims!(-1.5, 1.5)
png("stargon-$N")
end
end
# [1.5, 1.2, 0.96, 0.85
# [√3/2, 1.2, 1.32, 1.47
maxk = 5
points = [[sin(2π*i/3), cos(2π*i/3)] for i = 3:-1:0]
points = pointskoch(points, maxk)
plot_koch(points)
xlims!(-1.1, 1.1)
ylims!(-0.9, 1.3)
png("reverse-koch")
N = 4
points = [[cos(2π*i/N), sin(2π*i/N)] for i = 0:N]
points = pointskoch(points, maxk, 1.25)
plot_koch(points)
png("star")
points = [[0.0; 0.0], [1.0; 0.0], [1.0; 1.0], [0.0; 1.0], [0.0; 0.0]]
points = pointskoch(points, maxk, 1.2)
plot_koch(points)
png("reverse-star")
for N = 3:5
points = [[cos(2π*i/N), sin(2π*i/N)] for i = 1:N]
points = [i % 2 == 0 ? zeros(2) : points[div(i, 2) + 1] for i = 0:2N]
points = pointskoch(points, 5, 1.0)
plot_koch(points)
xlims!(-1.2, 1.2)
ylims!(-1.2, 1.2)
png("tri-$N")
end
N = 3
points = [[sin(2π*i/N), cos(2π*i/N)] for i = 0:N]
points = pointskoch(points, maxk)
plot_koch(points)
α = 0.6
plot_koch!(α^2 * points)
plot_koch!(α^4 * points)
points = [[y,x] for (x,y) in points]
plot_koch!(α * points, c=:green)
plot_koch!(α^3 * points, c=:green)
png("koch")
run(`montage tri-3.png koch.png tri-4.png tri-5.png reverse-star.png star.png -geometry +2+2 background.jpg`)
end
function large_koch()
pyplot(size=(2000,2000))
N = 3
points = [[sin(2π*i/N), cos(2π*i/N)] for i = 0:N]
points = pointskoch(points, 1)
plot_koch(points)
α = 3/sqrt(3)
maxp = 11
for p = 1:maxp
points = α * [[-y;x] for (x,y) in points]
if p < 7
points = pointskoch(points, 1)
end
plot_koch!(points, c=p%2==1 ? :green : :red)
xlims!(-1.1α^p, 1.1α^p)
ylims!(-1.1α^p, 1.1α^p)
png("koch-large-sub-$p")
end
xlims!(-1.1α^maxp, 1.1α^maxp)
ylims!(-1.1α^maxp, 1.1α^maxp)
png("koch-large")
end
function koch_julia()
colors = [RGB(0.584, 0.345, 0.698) RGB(0.667, 0.475, 0.757);
RGB(0.220, 0.596, 0.149) RGB(0.376, 0.678, 0.318);
RGB(0.796, 0.235, 0.200) RGB(0.835, 0.388, 0.361)]
plot()
plot_koch([])
α = sqrt(3)/3
for (i,θ) in enumerate([2π*i/3 for i = 0:2])
points = [[sin(2π*i/3), cos(2π*i/3)] for i = 0:3]
points = pointskoch(points, 6)
plot_koch!([[sin(θ) + x; cos(θ) + y] for (x,y) in points], c=colors[i,1], lw=2)
for p = 1:8
points = α * [[-y; x] for (x,y) in points]
plot_koch!([[sin(θ) + x; cos(θ) + y] for (x,y) in points], c=colors[i,p%2+1], lw=2)
end
end
xlims!(-2.1, 2.1)
ylims!(-1.9, 2.3)
png("koch-julia")
end
#main()
#large_koch()
koch_julia()
Kotlin
This incorporates code from other relevant tasks in order to provide a runnable example. The image produced is saved to disk where it can be viewed with a utility such as EOG.
// Version 1.2.41
import java.awt.Color
import java.awt.Graphics
import java.awt.image.BufferedImage
import kotlin.math.*
import java.io.File
import javax.imageio.ImageIO
val Double.asI get() = this.toInt()
class Point(var x: Int, var y: Int)
class BasicBitmapStorage(width: Int, height: Int) {
val image = BufferedImage(width, height, BufferedImage.TYPE_3BYTE_BGR)
fun fill(c: Color) {
val g = image.graphics
g.color = c
g.fillRect(0, 0, image.width, image.height)
}
fun setPixel(x: Int, y: Int, c: Color) = image.setRGB(x, y, c.getRGB())
fun getPixel(x: Int, y: Int) = Color(image.getRGB(x, y))
fun drawLine(x0: Int, y0: Int, x1: Int, y1: Int, c: Color) {
val dx = abs(x1 - x0)
val dy = abs(y1 - y0)
val sx = if (x0 < x1) 1 else -1
val sy = if (y0 < y1) 1 else -1
var xx = x0
var yy = y0
var e1 = (if (dx > dy) dx else -dy) / 2
var e2: Int
while (true) {
setPixel(xx, yy, c)
if (xx == x1 && yy == y1) break
e2 = e1
if (e2 > -dx) { e1 -= dy; xx += sx }
if (e2 < dy) { e1 += dx; yy += sy }
}
}
fun koch(x1: Double, y1: Double, x2: Double, y2: Double, it: Int) {
val angle = PI / 3.0 // 60 degrees
val clr = Color.blue
var iter = it
val x3 = (x1 * 2.0 + x2) / 3.0
val y3 = (y1 * 2.0 + y2) / 3.0
val x4 = (x1 + x2 * 2.0) / 3.0
val y4 = (y1 + y2 * 2.0) / 3.0
val x5 = x3 + (x4 - x3) * cos(angle) + (y4 - y3) * sin(angle)
val y5 = y3 - (x4 - x3) * sin(angle) + (y4 - y3) * cos(angle)
if (iter > 0) {
iter--
koch(x1, y1, x3, y3, iter)
koch(x3, y3, x5, y5, iter)
koch(x5, y5, x4, y4, iter)
koch(x4, y4, x2, y2, iter)
}
else {
drawLine(x1.asI, y1.asI, x3.asI, y3.asI, clr)
drawLine(x3.asI, y3.asI, x5.asI, y5.asI, clr)
drawLine(x5.asI, y5.asI, x4.asI, y4.asI, clr)
drawLine(x4.asI, y4.asI, x2.asI, y2.asI, clr)
}
}
}
fun main(args: Array<String>) {
val width = 512
val height = 512
val bbs = BasicBitmapStorage(width, height)
with (bbs) {
fill(Color.white)
koch(100.0, 100.0, 400.0, 400.0, 4)
val kFile = File("koch_curve.jpg")
ImageIO.write(image, "jpg", kFile)
}
}
- Output:
Image is similar to Ring entry.
Lambdatalk
{def koch
{lambda {:d :n}
{if {< :n 1}
then M:d
else {koch {/ :d 3} {- :n 1}} T-60
{koch {/ :d 3} {- :n 1}} T120
{koch {/ :d 3} {- :n 1}} T-60
{koch {/ :d 3} {- :n 1}} }}}
-> koch
{def K {koch 300 4}}
-> K
{svg {@ width="580" height="580" style="box-shadow:0 0 8px #000;"}
{polyline {@ points="{turtle 140 140 0 {K}}"
stroke="#f00" fill="transparent"}}
{polyline {@ points="{turtle 140 440 90 {K}}"
stroke="#0f0" fill="transparent"}}
{polyline {@ points="{turtle 440 440 180 {K}}"
stroke="#00f" fill="transparent"}}
{polyline {@ points="{turtle 440 140 270 {K}}"
stroke="#ff0" fill="transparent"}}
}
The output is a "square of Koch" which can be seen in
http://lambdaway.free.fr/lambdawalks/?view=koch
Logo
to ff :l :i
cs
right 90
pd
pr [lenght] show form :l 4 0
pr [iterations] show form :i 4 0
koch :l :i
end
to koch :len :iterations
ifelse :iterations = 1 [fd :len] [
koch :len :iterations - 1
left 60
koch :len :iterations - 1
right 120
koch :len :iterations - 1
left 60
koch :len :iterations - 1]
end
to zzz
ifelse YesNoBox [Welcome] [YES=run it, NO=show me the code] [ff 22 3] [edall]
end
Make "startup [zzz]Lua
Using the Bitmap class here, with an ASCII pixel representation, then extending with line() as here, then extending further..
local cos, sin, floor, pi = math.cos, math.sin, math.floor, math.pi
function Bitmap:render()
for y = 1, self.height do
print(table.concat(self.pixels[y]))
end
end
function Bitmap:drawKochPath(path, x, y, angle, speed, color)
local rules = {
["+"] = function() angle = angle + pi/3 end,
["-"] = function() angle = angle - pi/3 end,
["F"] = function()
local nx, ny = x+speed*cos(angle), y+speed*sin(angle)
self:line(floor(x*2+0.5), floor(y+0.5), floor(nx*2+0.5), floor(ny+0.5), color)
x, y = nx, ny
end
}
path:gsub("(.)", function(c) rules[c]() end)
end
function LSystem(axiom, rules, reps)
for i = 1, reps do
axiom = axiom:gsub("(.)", function(c) return rules[c] or c end)
end
return axiom
end
function KochPath(reps) return LSystem("F--F--F--", { F = "F+F--F+F" }, reps) end
demos = {
{ n=0, w= 11, h= 6, x=1, y= 4 },
{ n=1, w= 22, h=14, x=1, y= 9 },
{ n=2, w= 60, h=34, x=1, y=24 },
{ n=3, w=168, h=96, x=1, y=71 }
}
for _,d in ipairs(demos) do
bitmap = Bitmap(d.w, d.h)
bitmap:clear(".")
bitmap:drawKochPath(KochPath(d.n), d.x, d.y, 0, 3, "@")
bitmap:render()
print()
end
- Output:
........... .....@..... ....@.@.... ...@...@... ..@@@@@@@.. ........... ...................... ...........@.......... ..........@.@......... .........@...@........ ..@@@@@@@.....@@@@@@@. ...@..............@... ....@@...........@.... ....@.............@... ...@...............@.. ..@@@@@@@.....@@@@@@@. .........@...@........ ..........@.@......... ...........@.......... ...................... ............................................................ .............................@@............................. ............................@..@............................ ....................@@@@@@@@....@@@@@@@..................... .....................@...............@...................... ......................@.............@....................... ...........@@..........@...........@@..........@@........... ..........@..@........@..............@........@..@.......... ..@@@@@@@@....@@@@@@@@................@@@@@@@@....@@@@@@@... ...@...................................................@.... ....@.................................................@..... .....@...............................................@...... ....@.................................................@..... ...@...................................................@.... ..@@@@@@@........................................@@@@@@@@... .........@......................................@........... ..........@@...................................@............ ..........@.....................................@........... .........@.......................................@.......... ..@@@@@@@.........................................@@@@@@@... ...@..................................................@..... ....@@...............................................@...... ....@.................................................@..... ...@...................................................@.... ..@@@@@@@.....@@@@@@@.................@@@@@@@.....@@@@@@@... .........@...@.......@...............@.......@...@.......... ..........@.@.........@.............@.........@.@........... ...........@...........@...........@@..........@............ ......................@..............@...................... ....................@@@@@@@.....@@@@@@@..................... ...........................@...@............................ ............................@.@............................. .............................@.............................. ............................................................ ........................................................................................................................................................................ ...................................................................................@@................................................................................... ..................................................................................@..@.................................................................................. ..........................................................................@@@@@@@@....@@@@@@@........................................................................... ...........................................................................@...............@............................................................................ ............................................................................@.............@............................................................................. .................................................................@...........@...........@...........@.................................................................. ................................................................@.@.........@.............@.........@.@................................................................. ...............................................................@...@.......@...............@.......@...@................................................................ ........................................................@@@@@@@.....@@@@@@@.................@@@@@@@.....@@@@@@@......................................................... .........................................................@..................................................@........................................................... ..........................................................@@...............................................@............................................................ ..........................................................@.................................................@........................................................... .........................................................@...................................................@.......................................................... ........................................................@@@@@@@........................................@@@@@@@@......................................................... ...............................................................@......................................@................................................................. .............................@..................................@@...................................@...................................@.............................. ............................@.@.................................@.....................................@.................................@.@............................. ...........................@...@...............................@.......................................@...............................@...@............................ ....................@@@@@@@.....@@@@@@@.................@@@@@@@.........................................@@@@@@@.................@@@@@@@.....@@@@@@@..................... .....................@...............@...................@...................................................@...................@...............@...................... ......................@.............@.....................@.................................................@.....................@.............@....................... ...........@@..........@...........@@..........@@..........@...............................................@@..........@@..........@...........@@..........@@........... ..........@..@........@..............@........@..@........@..................................................@........@..@........@..............@........@..@.......... ..@@@@@@@@....@@@@@@@@................@@@@@@@@....@@@@@@@@....................................................@@@@@@@@....@@@@@@@@................@@@@@@@@....@@@@@@@... ...@...............................................................................................................................................................@.... ....@.............................................................................................................................................................@..... .....@...........................................................................................................................................................@@..... ....@..............................................................................................................................................................@.... ..@@@@@@@.....................................................................................................................................................@@@@@@@... .........@...................................................................................................................................................@.......... ..........@.................................................................................................................................................@........... ...........@...............................................................................................................................................@............ ..........@.................................................................................................................................................@........... .........@...................................................................................................................................................@.......... ..@@@@@@@.....................................................................................................................................................@@@@@@@... ...@..............................................................................................................................................................@..... ....@@...........................................................................................................................................................@...... ....@.............................................................................................................................................................@..... ...@...............................................................................................................................................................@.... ..@@@@@@@....@@@@@@@@............................................................................................................................@@@@@@@@....@@@@@@@@... .........@..@........@..........................................................................................................................@........@..@........... ..........@@..........@@.......................................................................................................................@..........@@............ ......................@.........................................................................................................................@....................... .....................@...........................................................................................................................@...................... ....................@@@@@@@.................................................................................................................@@@@@@@..................... ...........................@...............................................................................................................@............................ ............................@.............................................................................................................@............................. .............................@...........................................................................................................@@............................. ............................@..............................................................................................................@............................ ....................@@@@@@@@................................................................................................................@@@@@@@..................... .....................@...........................................................................................................................@...................... ......................@.........................................................................................................................@....................... ...........@@..........@.......................................................................................................................@@..........@@........... ..........@..@........@..........................................................................................................................@........@..@.......... ..@@@@@@@@....@@@@@@@@............................................................................................................................@@@@@@@@....@@@@@@@... ...@...............................................................................................................................................................@.... ....@.............................................................................................................................................................@..... .....@...........................................................................................................................................................@...... ....@.............................................................................................................................................................@..... ...@...............................................................................................................................................................@.... ..@@@@@@@....................................................................................................................................................@@@@@@@@... .........@..................................................................................................................................................@........... ..........@@...............................................................................................................................................@............ ..........@.................................................................................................................................................@........... .........@...................................................................................................................................................@.......... ..@@@@@@@.....................................................................................................................................................@@@@@@@... ...@..............................................................................................................................................................@..... ....@@...........................................................................................................................................................@...... ....@.............................................................................................................................................................@..... ...@...............................................................................................................................................................@.... ..@@@@@@@.....@@@@@@@.................@@@@@@@.....@@@@@@@.....................................................@@@@@@@.....@@@@@@@.................@@@@@@@.....@@@@@@@... .........@...@.......@...............@.......@...@.......@...................................................@.......@...@.......@...............@.......@...@.......... ..........@.@.........@.............@.........@.@.........@.................................................@.........@.@.........@.............@.........@.@........... ...........@...........@...........@@..........@...........@...............................................@@..........@...........@...........@@..........@............ ......................@..............@....................@..................................................@....................@..............@...................... ....................@@@@@@@.....@@@@@@@.................@@@@@@@.........................................@@@@@@@.................@@@@@@@.....@@@@@@@..................... ...........................@...@...............................@.......................................@...............................@...@............................ ............................@.@.................................@.....................................@.................................@.@............................. .............................@...................................@...................................@@..................................@.............................. ................................................................@......................................@................................................................ ........................................................@@@@@@@@........................................@@@@@@@......................................................... .........................................................@...................................................@.......................................................... ..........................................................@.................................................@........................................................... ...........................................................@...............................................@............................................................ ..........................................................@.................................................@........................................................... .........................................................@...................................................@.......................................................... ........................................................@@@@@@@....@@@@@@@@................@@@@@@@@....@@@@@@@@......................................................... ...............................................................@..@........@..............@........@..@................................................................. ................................................................@@..........@@...........@..........@@.................................................................. ............................................................................@.............@............................................................................. ...........................................................................@...............@............................................................................ ..........................................................................@@@@@@@....@@@@@@@@........................................................................... .................................................................................@..@................................................................................... ..................................................................................@@.................................................................................... ........................................................................................................................................................................
Mathematica /Wolfram Language
Graphics[{GeometricTransformation[KochCurve[5], RotationTransform[Pi, {0.5, 0}]],
GeometricTransformation[KochCurve[5], RotationTransform[-Pi/3, {1, 0}]],
GeometricTransformation[KochCurve[5], RotationTransform[Pi/3, {0, 0}]]}]
Maxima
Using turtle.mac package for turtle graphics in Maxima.
set_draw_defaults(
terminal = svg,
dimensions = [350,350],
proportional_axes = xy) $
wxdraw2d(
turtle(
to(koch_snowflake, [n, len],
ifelse(n = 0,
[forward(len)],
[koch_snowflake(n - 1, len),
right(60),
koch_snowflake(n - 1, len),
left(120),
koch_snowflake(n - 1, len),
right(60),
koch_snowflake(n - 1, len)]
)
),
repeat(6,
koch_snowflake(5, 300),
right(60)
)
)
);
Nim
from math import sin, cos, PI
import libgd
const
width = 512
height = 512
iterations = 4
proc kochCurve(img: gdImagePtr, x1, y1, x2, y2: float, iter: int): void =
let angle = PI / 3 # 60 degrees
let x3 = (x1 * 2 + x2) / 3
let y3 = (y1 * 2 + y2) / 3
let x4 = (x1 + x2 * 2) / 3
let y4 = (y1 + y2 * 2) / 3
let x5 = x3 + (x4 - x3) * cos(angle) + (y4 - y3) * sin(angle)
let y5 = y3 - (x4 - x3) * sin(angle) + (y4 - y3) * cos(angle)
if iter > 0:
img.kochCurve(x1, y1, x3, y3, iter - 1)
img.kochCurve(x3, y3, x5, y5, iter - 1)
img.kochCurve(x5, y5, x4, y4, iter - 1)
img.kochCurve(x4, y4, x2, y2, iter - 1)
else:
img.drawLine(startPoint=[x1.int, y1.int], endPoint=[x3.int, y3.int])
img.drawLine(startPoint=[x3.int, y3.int], endPoint=[x5.int, y5.int])
img.drawLine(startPoint=[x5.int, y5.int], endPoint=[x4.int, y4.int])
img.drawLine(startPoint=[x4.int, y4.int], endPoint=[x2.int, y2.int])
proc main() =
withGd imageCreate(width, height) as img:
let white = img.backgroundColor(0xffffff)
let red = img.foregroundColor(0xff0000)
img.kochCurve(100, 100, 400, 400, iterations)
let png_out = open("koch_curve.png", fmWrite)
img.writePng(png_out)
png_out.close()
main()
Perl
use SVG;
use List::Util qw(max min);
use constant pi => 2 * atan2(1, 0);
# Compute the curve with a Lindemayer-system
my $koch = 'F--F--F';
$koch =~ s/F/F+F--F+F/g for 1..5;
# Draw the curve in SVG
($x, $y) = (0, 0);
$theta = pi/3;
$r = 2;
for (split //, $koch) {
if (/F/) {
push @X, sprintf "%.0f", $x;
push @Y, sprintf "%.0f", $y;
$x += $r * cos($theta);
$y += $r * sin($theta);
}
elsif (/\+/) { $theta += pi/3; }
elsif (/\-/) { $theta -= pi/3; }
}
$xrng = max(@X) - min(@X);
$yrng = max(@Y) - min(@Y);
$xt = -min(@X)+10;
$yt = -min(@Y)+10;
$svg = SVG->new(width=>$xrng+20, height=>$yrng+20);
$points = $svg->get_path(x=>\@X, y=>\@Y, -type=>'polyline');
$svg->rect(width=>"100%", height=>"100%", style=>{'fill'=>'black'});
$svg->polyline(%$points, style=>{'stroke'=>'orange', 'stroke-width'=>1}, transform=>"translate($xt,$yt)");
open $fh, '>', 'koch_curve.svg';
print $fh $svg->xmlify(-namespace=>'svg');
close $fh;
Koch curve (offsite image)
Phix
You can run this online here.
-- -- demo\rosetta\Koch_curve.exw -- =========================== -- with javascript_semantics include pGUI.e Ihandle dlg, canvas cdCanvas cddbuffer, cdcanvas integer ox = 0, oy = 0 procedure koch(atom x1, y1, x2, y2, integer iter) atom angle = -PI/3, -- -60 degrees x3 := (x1*2 + x2) / 3, y3 := (y1*2 + y2) / 3, x4 := (x1 + x2*2) / 3, y4 := (y1 + y2*2) / 3, x5 := x3 + (x4-x3)*cos(angle) + (y4-y3)*sin(angle), y5 := y3 - (x4-x3)*sin(angle) + (y4-y3)*cos(angle) if iter>0 then iter -= 1 koch(x1, y1, x3, y3, iter) koch(x3, y3, x5, y5, iter) koch(x5, y5, x4, y4, iter) koch(x4, y4, x2, y2, iter) else cdCanvasVertex(cddbuffer, x1+ox, y1+oy) cdCanvasVertex(cddbuffer, x3+ox, y3+oy) cdCanvasVertex(cddbuffer, x5+ox, y5+oy) cdCanvasVertex(cddbuffer, x4+ox, y4+oy) cdCanvasVertex(cddbuffer, x2+ox, y2+oy) end if end procedure function redraw_cb(Ihandle /*ih*/, integer /*posx*/, /*posy*/) atom {w,h} = IupGetIntInt(canvas, "DRAWSIZE") if w>h then ox = floor((w-h)/2); w=h else oy = floor((h-w)/2); h=w end if atom {x,y} = {w*0.05+w/6,h*0.05+h/4} {w,h} = {w*0.6,h*0.6} cdCanvasActivate(cddbuffer) cdCanvasBegin(cddbuffer, CD_OPEN_LINES) koch(x,y,x+w/2,y+h,4) koch(x+w/2,y+h,x+w,y,4) koch(x+w,y,x,y,4) cdCanvasEnd(cddbuffer) cdCanvasFlush(cddbuffer) return IUP_DEFAULT end function function map_cb(Ihandle ih) cdcanvas = cdCreateCanvas(CD_IUP, ih) cddbuffer = cdCreateCanvas(CD_DBUFFER, cdcanvas) cdCanvasSetBackground(cddbuffer, CD_WHITE) cdCanvasSetForeground(cddbuffer, CD_BLUE) return IUP_DEFAULT end function procedure main() IupOpen() canvas = IupCanvas("RASTERSIZE=512x512") IupSetCallbacks(canvas, {"MAP_CB", Icallback("map_cb"), "ACTION", Icallback("redraw_cb")}) dlg = IupDialog(canvas,`TITLE="Koch curve"`) IupShow(dlg) IupSetAttribute(canvas, "RASTERSIZE", NULL) -- release the minimum limitation if platform()!=JS then IupMainLoop() IupClose() end if end procedure main()
Processing
int l = 300;
void setup() {
size(400, 400);
background(0, 0, 255);
stroke(255);
// draw from center of screen
translate(width/2.0, height/2.0);
// center curve from lower-left corner of base equilateral triangle
translate(-l/2.0, l*sqrt(3)/6.0);
for (int i = 1; i <= 3; i++) {
kcurve(0, l);
rotate(radians(120));
translate(-l, 0);
}
}
void kcurve(float x1, float x2) {
float s = (x2-x1)/3;
if (s < 5) {
pushMatrix();
translate(x1, 0);
line(0, 0, s, 0);
line(2*s, 0, 3*s, 0);
translate(s, 0);
rotate(radians(60));
line(0, 0, s, 0);
translate(s, 0);
rotate(radians(-120));
line(0, 0, s, 0);
popMatrix();
return;
}
pushMatrix();
translate(x1, 0);
kcurve(0, s);
kcurve(2*s, 3*s);
translate(s, 0);
rotate(radians(60));
kcurve(0, s);
translate(s, 0);
rotate(radians(-120));
kcurve(0, s);
popMatrix();
}
The sketch can be run online :
here.
Processing Python mode
l = 300
def setup():
size(400, 400)
background(0, 0, 255)
stroke(255)
# draw from center of screen
translate(width / 2.0, height / 2.0)
# center curve from lower - left corner of base equilateral triangle
translate(-l / 2.0, l * sqrt(3) / 6.0)
for i in range(4):
kcurve(0, l)
rotate(radians(120))
translate(-l, 0)
def kcurve(x1, x2):
s = (x2 - x1) / 3.0
if s < 5:
pushMatrix()
translate(x1, 0)
line(0, 0, s, 0)
line(2 * s, 0, 3 * s, 0)
translate(s, 0)
rotate(radians(60))
line(0, 0, s, 0)
translate(s, 0)
rotate(radians(-120))
line(0, 0, s, 0)
popMatrix()
return
pushMatrix()
translate(x1, 0)
kcurve(0, s)
kcurve(2 * s, 3 * s)
translate(s, 0)
rotate(radians(60))
kcurve(0, s)
translate(s, 0)
rotate(radians(-120))
kcurve(0, s)
popMatrix()
Prolog
Produces an SVG file showing a Koch snowflake.
main:-
write_koch_snowflake('koch_snowflake.svg').
write_koch_snowflake(File):-
open(File, write, Stream),
koch_snowflake(Stream, 600, 5),
close(Stream).
koch_snowflake(Stream, Size, N):-
format(Stream, "<svg xmlns='http://www.w3.org/2000/svg' width='~d' height='~d'>\n",
[Size, Size]),
write(Stream, "<rect width='100%' height='100%' fill='black'/>\n"),
write(Stream, "<path stroke-width='1' stroke='white' fill='none' d='"),
Sqrt3_2 = 0.86602540378444,
Length is Size * Sqrt3_2 * 0.95,
X0 is (Size - Length)/2,
Y0 is Size/2 - Length * Sqrt3_2/3,
X1 is X0 + Length/2,
Y1 is Y0 + Length * Sqrt3_2,
X2 is X0 + Length,
format(Stream, 'M ~g,~g ', [X0, Y0]),
koch_curve(Stream, X0, Y0, X1, Y1, N),
koch_curve(Stream, X1, Y1, X2, Y0, N),
koch_curve(Stream, X2, Y0, X0, Y0, N),
write(Stream, "z'/>\n</svg>\n").
koch_curve(Stream, _, _, X1, Y1, 0):-
!,
format(Stream, 'L ~g,~g\n', [X1, Y1]).
koch_curve(Stream, X0, Y0, X1, Y1, N):-
N > 0,
Sqrt3_2 = 0.86602540378444,
N1 is N - 1,
Dx is X1 - X0,
Dy is Y1 - Y0,
X2 is X0 + Dx/3,
Y2 is Y0 + Dy/3,
X3 is X0 + Dx/2 - Dy * Sqrt3_2/3,
Y3 is Y0 + Dy/2 + Dx * Sqrt3_2/3,
X4 is X0 + 2 * Dx/3,
Y4 is Y0 + 2 * Dy/3,
koch_curve(Stream, X0, Y0, X2, Y2, N1),
koch_curve(Stream, X2, Y2, X3, Y3, N1),
koch_curve(Stream, X3, Y3, X4, Y4, N1),
koch_curve(Stream, X4, Y4, X1, Y1, N1).
- Output:
Media:Koch_snowflake_prolog.svg
Python
Functional
Generates SVG for a Koch snowflake. To view, save as a text file with the extension .svg, and open in a browser.
'''Koch curve'''
from math import cos, pi, sin
from operator import add, sub
from itertools import chain
# kochSnowflake :: Int -> (Float, Float) -> (Float, Float) -> [(Float, Float)]
def kochSnowflake(n, a, b):
'''List of points on a Koch snowflake of order n, derived
from an equilateral triangle with base a b.
'''
points = [a, equilateralApex(a, b), b]
return chain.from_iterable(map(
kochCurve(n),
points,
points[1:] + [points[0]]
))
# kochCurve :: Int -> (Float, Float) -> (Float, Float)
# -> [(Float, Float)]
def kochCurve(n):
'''List of points on a Koch curve of order n,
starting at point ab, and ending at point xy.
'''
def koch(n):
def goTuple(abxy):
ab, xy = abxy
if 0 == n:
return [xy]
else:
mp, mq = midThirdOfLine(ab, xy)
points = [
ab,
mp,
equilateralApex(mp, mq),
mq,
xy
]
return list(
chain.from_iterable(map(
koch(n - 1),
zip(points, points[1:])
))
)
return goTuple
def go(ab, xy):
return [ab] + koch(n)((ab, xy))
return go
# equilateralApex :: (Float, Float) -> (Float, Float) -> (Float, Float)
def equilateralApex(p, q):
'''Apex of triangle with base p q.
'''
return rotatedPoint(pi / 3)(p, q)
# rotatedPoint :: Float -> (Float, Float) ->
# (Float, Float) -> (Float, Float)
def rotatedPoint(theta):
'''The point ab rotated theta radians
around the origin xy.
'''
def go(xy, ab):
ox, oy = xy
a, b = ab
dx, dy = rotatedVector(theta, (a - ox, oy - b))
return ox + dx, oy - dy
return go
# rotatedVector :: Float -> (Float, Float) -> (Float, Float)
def rotatedVector(theta, xy):
'''The vector xy rotated by theta radians.
'''
x, y = xy
return (
x * cos(theta) - y * sin(theta),
x * sin(theta) + y * cos(theta)
)
# midThirdOfLine :: (Float, Float) -> (Float, Float)
# -> ((Float, Float), (Float, Float))
def midThirdOfLine(ab, xy):
'''Second of three equal segments of
the line between ab and xy.
'''
vector = [x / 3 for x in map(sub, xy, ab)]
def f(p):
return tuple(map(add, vector, p))
p = f(ab)
return (p, f(p))
# -------------------------- TEST --------------------------
# main :: IO ()
def main():
'''SVG for Koch snowflake of order 4.
'''
print(
svgFromPoints(1024)(
kochSnowflake(
4, (200, 600), (800, 600)
)
)
)
# -------------------------- SVG ---------------------------
# svgFromPoints :: Int -> [(Float, Float)] -> SVG String
def svgFromPoints(w):
'''Width of square canvas -> Point list -> SVG string.
'''
def go(xys):
xs = ' '.join(map(
lambda xy: str(round(xy[0], 2)) + ' ' + str(round(xy[1], 2)),
xys
))
return '\n'.join([
'<svg xmlns="http://www.w3.org/2000/svg"',
f'width="512" height="512" viewBox="5 5 {w} {w}">',
f'<path d="M{xs}" ',
'stroke-width="2" stroke="red" fill="transparent"/>',
'</svg>'
])
return go
# MAIN ---
if __name__ == '__main__':
main()
String rewriting
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.colors import hsv_to_rgb as hsv
def curve(axiom, rules, angle, depth):
for _ in range(depth):
axiom = ''.join(rules[c] if c in rules else c for c in axiom)
a, x, y = 0, [0], [0]
for c in axiom:
match c:
case '+':
a += 1
case '-':
a -= 1
case 'F' | 'G':
x.append(x[-1] + np.cos(a*angle*np.pi/180))
y.append(y[-1] + np.sin(a*angle*np.pi/180))
l = len(x)
# this is very slow, but pretty colors
for i in range(l - 1):
plt.plot(x[i:i+2], y[i:i+2], color=hsv([i/l, 1, .7]))
plt.gca().set_aspect(1)
plt.show()
curve('F++F++F', {'F': 'F+F--F+F'}, 60, 5)
#curve('F--XF--F--XF', {'X': 'XF+G+XF--F--XF+G+X'}, 45, 5)
#curve('F+XF+F+XF', {'X': 'XF-F+F-XF+F+XF-F+F-X'}, 90, 5)
#curve('F', {'F': 'G-F-G', 'G': 'F+G+F'}, 60, 7)
#curve('A', {'A': '+BF-AFA-FB+', 'B': '-AF+BFB+FA-'}, 90, 6)
#curve('FX+FX+', {'X': 'X+YF', 'Y': 'FX-Y'}, 90, 12)
QBasic
' Chaos: start at any point, this program uses the middle of the screen (or universe. One of six
' degrees of freedom (a direction) is chosen at random (by throwing a six-sided die), and a line
' is drawn from the old point to the new point in the direction indicated by the pip on the die.
'
' The traverse distance is always a fraction of the last distance drawn; the fraction (here) uses:
'
' +- -+
' | |
' distance <=== old_distance * | 1/2 - 1/8 - 1/32 - 1/128 - ... |
' | |
' +- -+
' ---or---
' +- -+
' | 1 1 1 1 |
' distance <=== old_distance * | --- - --- - ---- - ----- - ... |
' | 2**1 2**3 2**5 2**7 |
' +- -+
'
' (The series above has a limit of 1/3.)
'
' The six degrees of freedom: 1 6
'
' \ /
' \ /
' \ /
' 2 <------ X ------> 5
' / \
' / \
' / \
'
' 3 4
'
' When the amount to be moved is too small to show on the terminal screen, the chaos curve is
' starting again (from the initial point, the middle of the screen/universe).
'
' All subsequent chaos curves are superimposed on the first curve.
'
' The envelope of this chaos curve is defined as the snowflake curve.
'
' If any cursor key (one of the "arrow" keys) is pressed, program execution is halted.
'
' If any function key is pressed during execution, the random chaos curve is stopped, the screen
' cleared, and the snowflake curve is drawn by a non-random method (brute force).
'
' Once the random snowflake (chaos) curve is being drawn, the pressing of function keys 1-->9 will
' force the randomness to move in a particular direction, the direction (the degree of freedom) is
' the direction indicated by the number of times that function key is pressed for that curve point.
' That is, function key 1 is used for the first point (part of the chaos curve), function key 2 is
' used for the second point, function key 3 for the third point, etc.
DEFINT A-Y ' define variables that begin with A-->Y as integers.
DEFSNG Z ' define variables that begin with Z as single precision.
DIM XP(16,6),YP(16,6),KY(16) ' define some (integer) arrays.
MP= 16 ' set the maximum number of points (1st dimension) that can be plotted.
CLS ' clear the screen for visual fidelity.
SCREEN 2 ' make the screen high-res graphics.
GOTO 230 ' branch around a RETURN statement that ON KEY(i) uses.
220 RETURN
230 FK= 0 ' set FK (used to indicate that a function key was pressed).
FOR I=1 TO 10 ' allow the use of function keys to stop the deliberate snowflake
' curve and start drawing it randomly.
KY(I)= 0
ON KEY(I) GOSUB 220 ' allow the trapping of function keys, but don't process it as yet.
KEY(I) ON
KEY(I) STOP
NEXT I
CLS ' clear the screen for visual fidelity.
ZZ= 2 + TIMER ' on some PCs, a pause of at least one second prevents scrolling.
240 IF TIMER<ZZ THEN GOTO 240
RANDOMIZE TIMER ' randomize the RND function from the timer.
XM= 640 - 1 ' define the number of points on the screen (for plotting).
YM= 200 - 1
XO= XM \ 2 ' define the origin of the chaos curve.
YO= YM \ 2
ZT= 1 / 3 ' define the traverse distance, it's this distance that each part of
' the chaos curve "breaks", when the distance that the next part of
' the chaos curve is moved to.
ZA= 1 ' define the aspect ratio for the terminal screen.
ZX= XM * ZA ' define the initial distance to be plotted (for a line).
ZY= YM ' " " " " " " " " " "
FOR I=1 TO MP ' compute (once) all the x & y distances for each part of the curve.
ZX= ZX * ZT * ZA
ZY= ZY * ZT
XP(I, 1) = -ZX / 2
XP(I, 2) = -ZX
XP(I, 3) = -ZX / 2
XP(I, 4) = ZX / 2
XP(I, 5) = ZX
XP(I, 6) = ZX / 2
YP(I, 1) = -ZY
YP(I, 2) = 0
YP(I, 3) = ZY
YP(I, 4) = ZY
YP(I, 5) = 0
YP(I, 6) = -ZY
NEXT I
N0=0
FOR II=1 TO MP ' find the maximum number of points that can be plotted.
FOR I=1 TO 6
IF XP(II, I) <> 0 THEN N0= II
IF YP(II, I) <> 0 THEN N0= II
NEXT I
NEXT II
FOR I=11 TO 14 ' quit if any cursor key is pressed.
ON KEY(I) GOSUB 598
KEY(I) ON
NEXT I
FOR I=1 TO 10 ' If any function key is pressed during execution, the deliberate
ON KEY(I) GOSUB 400 ' curve is stopped, the screen is cleared, and the snowflake curve is
KEY(I) ON ' drawn by a random process (AKA, the chaos curve).
NEXT I
GOTO 500
400 FK= 1 ' come here when any function or cursor key is pressed, and set FK
' that is checked by the deliberate snowflake curve generator.
RETURN
500 CLS ' clear the screen before starting (for visual fidelity).
FOR I1=1 TO 6 ' plot the curve via non-random (deliberate calculation) points.
X1= XO + XP(1, I1)
Y1= YO + YP(1, I1)
IF FK THEN GOTO 600
LINE (XO, YO) - (X1, Y1)
FOR I2=1 TO 6
X2= X1 + XP(2,I2)
Y2= Y1 + YP(2,I2)
IF FK THEN GOTO 600
LINE (X1, Y1) - (X2, Y2)
FOR I3=1 TO 6
X3= X2 + XP(3, I3)
Y3= Y2 + YP(3, I3)
IF FK THEN GOTO 600
LINE (X2, Y2) - (X3, Y3)
FOR I4=1 TO 6
X4= X3 + XP(4, I4)
Y4= Y3 + YP(4, I4)
IF FK THEN GOTO 600
LINE (X3, Y3) - (X4, Y4)
FOR I5=1 TO 6
X5= X4 + XP(5, I5)
Y5= Y4 + YP(5, I5)
IF FK THEN GOTO 600
LINE (X4, Y4) - (X5, Y5)
NEXT I5
NEXT I4
NEXT I3
NEXT I2
NEXT I1
ZZ= 10+TIMER ' The snowflake curve is now complete.
555 IF TIMER<ZZ THEN GOTO 555 ' loop for ten seconds.
598 SYSTEM ' stick a fork in it, we're all done.
600 ON KEY(1) GOSUB 710 ' trap all function keys for toggling.
ON KEY(2) GOSUB 720
ON KEY(3) GOSUB 730
ON KEY(4) GOSUB 740
ON KEY(5) GOSUB 750
ON KEY(6) GOSUB 760
ON KEY(7) GOSUB 770
ON KEY(8) GOSUB 780
ON KEY(9) GOSUB 790
ON KEY(10) GOSUB 700
FOR I=1 TO MP ' re-active trapping all the function keys.
KEY(I) ON
NEXT I
CLS ' clear the screen before starting.
GOTO 900 ' go and start drawing the chaos curve.
700 FOR I0=1 TO MP ' reset all toggle settings for all points.
KY(I0)= 0
NEXT I0
RETURN
710 KI= 1 ' toggle setting for point #1 (bypass).
GOTO 800
720 KI= 2 ' toggle setting for point #2 (bypass).
GOTO 800
730 KI= 3 ' toggle setting for point #3 (bypass).
GOTO 800
740 KI= 4 ' toggle setting for point #4 (bypass).
GOTO 800
750 KI= 5 ' toggle setting for point #5 (bypass).
GOTO 800
760 KI= 6 ' toggle setting for point #6 (bypass).
GOTO 800
770 KI= 7 ' toggle setting for point #7 (bypass).
GOTO 800
780 KI= 8 ' toggle setting for point #8 (bypass).
GOTO 800
790 KI= 9 ' toggle setting for point #9 (bypass).
800 KY(KI)= (1 + KY(KI) ) MOD 7 ' reset toggle settings for all higher points.
FOR IK=KI+1 TO MP
KY(IK)= 0
NEXT IK
RETURN
900 N= 0 ' initialize the number of points in this particular chaos curve.
X= XO ' move the start-of-the-chaos-curve to the origin.
Y= YO
LINE (X, Y) - (X, Y)
N= N + 1 ' bump number of points drawn so far.
IF N>N0 THEN GOTO 900 ' # points drawn exceeds possible? Start another chaos curve.
' start of diminishing loop to create an envelope for the chaos curve.
IF KY(N) THEN R= KY(N) ELSE R= 1 + INT(RND*6)
X= X + XP(N, R) ' exercise a degree of freedom (one of six).
Y= Y + YP(N, R)
LINE -(X, Y) ' depending on the "die", draw the next part of the chaos curve.
GOTO 900 ' now, go and do another point.
Quackery
Using an L-system.
[ $ "turtleduck.qky" loadfile ] now!
[ $ "" swap witheach
[ nested quackery join ] ] is expand ( $ --> $ )
[ $ "FRFLLFRF" ] is F ( $ --> $ )
[ $ "L" ] is L ( $ --> $ )
[ $ "R" ] is R ( $ --> $ )
$ "FLLFLLF"
4 times expand
turtle
20 frames
witheach
[ dup char F = iff
[ drop 3 1 walk ] done
char L = iff
[ -1 6 turn ] done
1 6 turn ]
1 frames- Output:
Racket
#lang racket
(require metapict)
; rot: rotate d degrees around point p, where c is a point or curve
(def (rot d p c)
(rotated-aboutd d p c))
(define (koch a b n)
(match n
[0 (draw (curve a -- b))]
[_ (def 1/3ab (med 1/3 a b))
(def 2/3ab (med 2/3 a b))
(draw (koch a 1/3ab (- n 1))
(koch 1/3ab (rot 60 1/3ab 2/3ab) (- n 1))
(koch (rot 60 1/3ab 2/3ab) 2/3ab (- n 1))
(koch 2/3ab b (- n 1)))]))
(define (snow n)
(def a (pt 0 0))
(def b (pt 1 0))
(def c (rot 60 a b))
(draw (koch b a n)
(koch c b n)
(koch a c n)))
(scale 4 (snow 2))
Raku
(formerly Perl 6)
Koch curve, actually a full Koch snowflake.
use SVG;
role Lindenmayer {
has %.rules;
method succ {
self.comb.map( { %!rules{$^c} // $c } ).join but Lindenmayer(%!rules)
}
}
my $flake = 'F--F--F' but Lindenmayer( { F => 'F+F--F+F' } );
$flake++ xx 5;
my @points = (50, 440);
for $flake.comb -> $v {
state ($x, $y) = @points[0,1];
state $d = 2 + 0i;
with $v {
when 'F' { @points.append: ($x += $d.re).round(.01), ($y += $d.im).round(.01) }
when '+' { $d *= .5 + .8660254i }
when '-' { $d *= .5 - .8660254i }
}
}
say SVG.serialize(
svg => [
width => 600, height => 600, style => 'stroke:rgb(0,0,255)',
:rect[:width<100%>, :height<100%>, :fill<white>],
:polyline[ points => @points.join(','), :fill<white> ],
],
);
See: Koch snowflake
Variation using 90° angles:
use SVG;
role Lindenmayer {
has %.rules;
method succ {
self.comb.map( { %!rules{$^c} // $c } ).join but Lindenmayer(%!rules)
}
}
my $koch = 'F' but Lindenmayer( { F => 'F+F-F-F+F', } );
$koch++ xx 4;
my @points = (450, 250);
for $koch.comb -> $v {
state ($x, $y) = @points[0,1];
state $d = -5 - 0i;
with $v {
when 'F' { @points.append: ($x += $d.re).round(.01), ($y += $d.im).round(.01) }
when /< + - >/ { $d *= "{$v}1i" }
}
}
say SVG.serialize(
svg => [
width => 500, height => 300, style => 'stroke:rgb(0,0,255)',
:rect[:width<100%>, :height<100%>, :fill<white>],
:polyline[ points => @points.join(','), :fill<white> ],
],
);
See: Koch curve variant with 90° angles
Ring
# Project : Koch curve
load "guilib.ring"
paint = null
new qapp
{
win1 = new qwidget() {
setwindowtitle("Koch curve")
setgeometry(100,100,500,600)
label1 = new qlabel(win1) {
setgeometry(10,10,400,400)
settext("")
}
new qpushbutton(win1) {
setgeometry(150,500,100,30)
settext("draw")
setclickevent("draw()")
}
show()
}
exec()
}
func draw
p1 = new qpicture()
color = new qcolor() {
setrgb(0,0,255,255)
}
pen = new qpen() {
setcolor(color)
setwidth(1)
}
paint = new qpainter() {
begin(p1)
setpen(pen)
koch(100, 100, 400, 400, 4)
endpaint()
}
label1 { setpicture(p1) show() }
func koch x1, y1, x2, y2, it
angle = 60*3.14/180
x3 = (2*x1+x2)/3
y3 = (2*y1+y2)/3
x4 = (x1+2*x2)/3
y4 = (y1+2*y2)/3
x = x3 + (x4-x3)*cos(angle)+(y4-y3)*sin(angle)
y = y3 - (x4-x3)*sin(angle)+(y4-y3)*cos(angle)
if (it > 0)
koch(x1, y1, x3, y3, it-1)
koch(x3, y3, x, y, it-1)
koch(x, y, x4, y4, it-1)
koch(x4, y4, x2, y2, it-1)
else
paint.drawline(x1, y1, x3, y3)
paint.drawline(x3, y3, x, y)
paint.drawline(x, y, x4, y4)
paint.drawline(x4, y4, x2, y2)
okOutput image:
Ruby
Using a Lindenmayer System to produce a KochSnowflake or simple Koch Fractal
attr_reader :koch
def settings
size 600, 600
end
def setup
sketch_title '2D Koch'
@koch = KochSnowflake.new
koch.create_grammar 5
no_loop
end
def draw
background 0
koch.render
end
# LSystem class
class Grammar
attr_reader :axiom, :rules
def initialize(axiom, rules)
@axiom = axiom
@rules = rules
end
def apply_rules(prod)
prod.gsub(/./) { |token| rules.fetch(token, token) }
end
def generate(gen)
return axiom if gen.zero?
prod = axiom
gen.times do
prod = apply_rules(prod)
end
prod
end
end
Turtle = Struct.new(:x, :y, :theta)
# KochSnowflake class has access to Sketch methods eg :line, :width, :height
class KochSnowflake
include Processing::Proxy
attr_reader :grammar, :axiom, :draw_length, :production, :turtle
DELTA = 60.radians
def initialize
@axiom = 'F--F--F' # 'F' for simple Koch Curve
@grammar = Grammar.new(
axiom,
'F' => 'F+F--F+F'
)
@draw_length = 20
stroke 0, 255, 0
stroke_weight 2
@turtle = Turtle.new(width / 5, height * 0.7, 0)
end
def render
production.scan(/./) do |element|
case element
when 'F' # NB NOT using affine transforms
draw_line(turtle)
when '+'
turtle.theta += DELTA
when '-'
turtle.theta -= DELTA
when 'L', 'R'
else puts 'Grammar not recognized'
end
end
end
def draw_line(turtle)
x_temp = turtle.x
y_temp = turtle.y
@turtle.x += draw_length * Math.cos(turtle.theta)
@turtle.y += draw_length * Math.sin(turtle.theta)
line(x_temp, y_temp, turtle.x, turtle.y)
end
##############################
# create grammar from axiom and
# rules (adjust scale)
##############################
def create_grammar(gen)
@draw_length *= 0.6**gen
@production = @grammar.generate gen
end
end
Rust
Output is a file in SVG format depicting a Koch snowflake.
// [dependencies]
// svg = "0.8.0"
use svg::node::element::path::Data;
use svg::node::element::Path;
use svg::node::element::Rectangle;
const SQRT3_2: f64 = 0.86602540378444;
fn koch_curve(mut data: Data, x0: f64, y0: f64, x1: f64, y1: f64, order: usize) -> Data {
if order == 0 {
data = data.line_to((x1, y1));
} else {
let dx = x1 - x0;
let dy = y1 - y0;
let x2 = x0 + dx / 3.0;
let y2 = y0 + dy / 3.0;
let x3 = x0 + dx / 2.0 - dy * SQRT3_2 / 3.0;
let y3 = y0 + dy / 2.0 + dx * SQRT3_2 / 3.0;
let x4 = x0 + 2.0 * dx / 3.0;
let y4 = y0 + 2.0 * dy / 3.0;
data = koch_curve(data, x0, y0, x2, y2, order - 1);
data = koch_curve(data, x2, y2, x3, y3, order - 1);
data = koch_curve(data, x3, y3, x4, y4, order - 1);
data = koch_curve(data, x4, y4, x1, y1, order - 1);
}
data
}
fn write_koch_snowflake(file: &str, size: usize, order: usize) -> std::io::Result<()> {
let length = (size as f64) * SQRT3_2 * 0.95;
let x0 = ((size as f64) - length) / 2.0;
let y0 = (size as f64) / 2.0 - length * SQRT3_2 / 3.0;
let x1 = x0 + length / 2.0;
let y1 = y0 + length * SQRT3_2;
let x2 = x0 + length;
let mut data = Data::new().move_to((x0, y0));
data = koch_curve(data, x0, y0, x1, y1, order);
data = koch_curve(data, x1, y1, x2, y0, order);
data = koch_curve(data, x2, y0, x0, y0, order);
let path = Path::new()
.set("fill", "none")
.set("stroke", "white")
.set("stroke-width", "1")
.set("d", data);
let rect = Rectangle::new()
.set("width", "100%")
.set("height", "100%")
.set("fill", "black");
let document = svg::Document::new()
.set("width", size)
.set("height", size)
.add(rect)
.add(path);
svg::save(file, &document)
}
fn main() {
write_koch_snowflake("koch_snowflake.svg", 600, 5).unwrap();
}
- Output:
Sidef
Using the LSystem class defined at Hilbert curve.
var rules = Hash(
F => 'F+F--F+F',
)
var lsys = LSystem(
width: 800,
height: 800,
xoff: -210,
yoff: -90,
len: 8,
angle: 60,
color: 'dark green',
)
lsys.execute('F--F--F', 4, "koch_snowflake.png", rules)
Output image: Koch snowflake
VBScript
VBScript does'nt have access to the OS graphics, so the code generates SVG code in an HTML file then opens it in the default browser A Turtle graphics library makes defining the curve easy.
option explicit
'outputs turtle graphics to svg file and opens it
const pi180= 0.01745329251994329576923690768489 ' pi/180
const pi=3.1415926535897932384626433832795 'pi
class turtle
dim fso
dim fn
dim svg
dim iang 'radians
dim ori 'radians
dim incr
dim pdown
dim clr
dim x
dim y
public property let orient(n):ori = n*pi180 :end property
public property let iangle(n):iang= n*pi180 :end property
public sub pd() : pdown=true: end sub
public sub pu() :pdown=FALSE :end sub
public sub rt(i)
ori=ori - i*iang:
if ori<0 then ori = ori+pi*2
end sub
public sub lt(i):
ori=(ori + i*iang)
if ori>(pi*2) then ori=ori-pi*2
end sub
public sub bw(l)
x= x+ cos(ori+pi)*l*incr
y= y+ sin(ori+pi)*l*incr
end sub
public sub fw(l)
dim x1,y1
x1=x + cos(ori)*l*incr
y1=y + sin(ori)*l*incr
if pdown then line x,y,x1,y1
x=x1:y=y1
end sub
Private Sub Class_Initialize()
setlocale "us"
initsvg
pdown=true
end sub
Private Sub Class_Terminate()
disply
end sub
private sub line (x,y,x1,y1)
svg.WriteLine "<line x1=""" & x & """ y1= """& y & """ x2=""" & x1& """ y2=""" & y1 & """/>"
end sub
private sub disply()
dim shell
svg.WriteLine "</svg></body></html>"
svg.close
Set shell = CreateObject("Shell.Application")
shell.ShellExecute fn,1,False
end sub
private sub initsvg()
dim scriptpath
Set fso = CreateObject ("Scripting.Filesystemobject")
ScriptPath= Left(WScript.ScriptFullName, InStrRev(WScript.ScriptFullName, "\"))
fn=Scriptpath & "SIERP.HTML"
Set svg = fso.CreateTextFile(fn,True)
if SVG IS nothing then wscript.echo "Can't create svg file" :vscript.quit
svg.WriteLine "<!DOCTYPE html>" &vbcrlf & "<html>" &vbcrlf & "<head>"
svg.writeline "<style>" & vbcrlf & "line {stroke:rgb(255,0,0);stroke-width:.5}" &vbcrlf &"</style>"
svg.writeline "</head>"&vbcrlf & "<body>"
svg.WriteLine "<svg xmlns=""http://www.w3.org/2000/svg"" width=""800"" height=""800"" viewBox=""0 0 800 800"">"
end sub
end class
sub koch (n,le)
if n=0 then x.fw le :exit sub
koch n-1, le/3
x.lt 1
koch n-1, le/3
x.rt 2
koch n-1, le/3
x.lt 1
koch n-1, le/3
end sub
dim x,i
set x=new turtle
x.iangle=60
x.orient=0
x.incr=3
x.x=100:x.y=300
for i=0 to 3
koch 7,100
x.rt 2
next
set x=nothing 'show image in browser
Wren
import "graphics" for Canvas, Color, Point
import "dome" for Window
import "math" for M
class Game {
static init() {
Window.title = "Koch curve"
Canvas.resize(512, 512)
Window.resize(512, 512)
Canvas.cls(Color.white) // white background
koch(100, 100, 400, 400, 4)
koch(101, 100, 401, 400, 4) // 2 pixels wide
}
static koch(x1, y1, x2, y2, iter) {
var angle = Num.pi / 3 // 60 degrees
var x3 = (x1*2 + x2) / 3
var y3 = (y1*2 + y2) / 3
var x4 = (x1 + x2*2) / 3
var y4 = (y1 + y2*2) / 3
var x5 = x3 + (x4-x3)*M.cos(angle) + (y4-y3)*M.sin(angle)
var y5 = y3 - (x4-x3)*M.sin(angle) + (y4-y3)*M.cos(angle)
if (iter > 0) {
iter = iter - 1
koch(x1, y1, x3, y3, iter)
koch(x3, y3, x5, y5, iter)
koch(x5, y5, x4, y4, iter)
koch(x4, y4, x2, y2, iter)
} else {
Canvas.line(x1, y1, x3, y3, Color.blue)
Canvas.line(x3, y3, x5, y5, Color.blue)
Canvas.line(x5, y5, x4, y4, Color.blue)
Canvas.line(x4, y4, x2, y2, Color.blue)
}
}
static update() {}
static draw(dt) {}
}
XPL0
real PosX, PosY, Angle;
proc DrawSide(Depth, Dist); \Draw side as 4 segments
int Depth; real Dist;
int I; real Dir;
def Deg2Rad = 3.14159265358979323846/180.;
[Dir:= [0., -60., 120., -60.];
for I:= 0 to 3 do
[Angle:= Angle + Dir(I);
if Depth < 4 then DrawSide(Depth+1, Dist/3.)
else [PosX:= PosX + Dist*Cos(Angle*Deg2Rad);
PosY:= PosY + Dist*Sin(Angle*Deg2Rad);
Line(fix(PosX), fix(PosY), $F \BrWhite\);
];
];
];
int Side;
[SetVid($107); \set 1280x1024x8 VESA graphic display
PosX:= float(1280/2); PosY:= 0.;
Move(fix(PosX), fix(PosY)); \set start of Line
Angle:= 60.; \heading = 60 degrees
for Side:= 1 to 3 do \sides of triangle
[DrawSide(0, 290.);
Angle:= Angle + 120.;
];
]- Output:
Essentially the same as the C++ image.
zkl
Uses Image Magick and the PPM class from http://rosettacode.org/wiki/Bitmap/Bresenham%27s_line_algorithm#zkl
var width=512, height=512, img=PPM(width,height,0xFfffFF); // white canvas
var angle=(60.0).toRad();
const green=0x00FF00;
fcn koch(x1,y1, x2,y2, it){
x3,y3 := (x1*2 + x2) /3, (y1*2 + y2) /3;
x4,y4 := (x1 + x2*2)/3, (y1 + y2*2)/3;
x:=x3 + (x4-x3)*angle.cos() + (y4-y3)*angle.sin();
y:=y3 - (x4-x3)*angle.sin() + (y4-y3)*angle.cos();
if(it>0){
it-=1;
koch(x1,y1, x3,y3, it);
koch(x3,y3, x, y, it);
koch(x, y, x4,y4, it);
koch(x4,y4, x2,y2, it);
}else{
x,y, x1,y1, x2,y2, x3,y3, x4,y4 =
T(x,y, x1,y1, x2,y2, x3,y3, x4,y4).apply("toInt");
img.line(x1,y1, x3,y3, green);
img.line(x3,y3, x, y, green);
img.line(x, y, x4,y4, green);
img.line(x4,y4, x2,y2, green);
}
}
koch(100.0,100.0, 400.0,400.0, 4);
img.writeJPGFile("koch.zkl.jpg");Image at koch curve

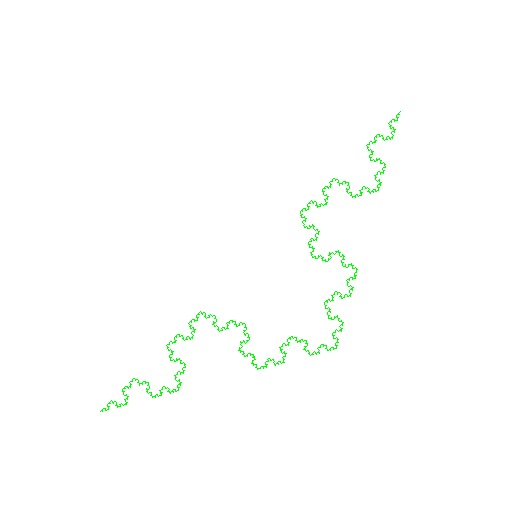

Using a Lindenmayer system and turtle graphics to draw a Koch snowflake:
lsystem("F--F--F", Dictionary("F","F+F--F+F"), "+-", 4) // snowflake
//lsystem("F", Dictionary("F","F+F--F+F"), "+-", 3) // curve
: turtle(_);
fcn lsystem(axiom,rules,consts,n){ // Lindenmayer system --> string
foreach k in (consts){ rules.add(k,k) }
buf1,buf2 := Data(Void,axiom).howza(3), Data().howza(3); // characters
do(n){
buf1.pump(buf2.clear(), rules.get);
t:=buf1; buf1=buf2; buf2=t; // swap buffers
}
buf1.text // n=4 snow flake --> 1,792 characters
}
fcn turtle(koch){
const D=10.0;
dir,deg60, x,y := 0.0, (60.0).toRad(), 20.0, 710.0; // turtle; x,y are float
img,color := PPM(850,950), 0x00ff00;
foreach c in (koch){
switch(c){
case("F"){ // draw forward
dx,dy := D.toRectangular(dir);
tx,ty := x,y; x,y = (x+dx),(y+dy);
img.line(tx.toInt(),ty.toInt(), x.toInt(),y.toInt(), color);
}
case("-"){ dir-=deg60 } // turn right 60*
case("+"){ dir+=deg60 } // turn left 60*
}
}
img.writeJPGFile("kochSnowFlake.zkl.jpg");
}Image at Koch snow flake

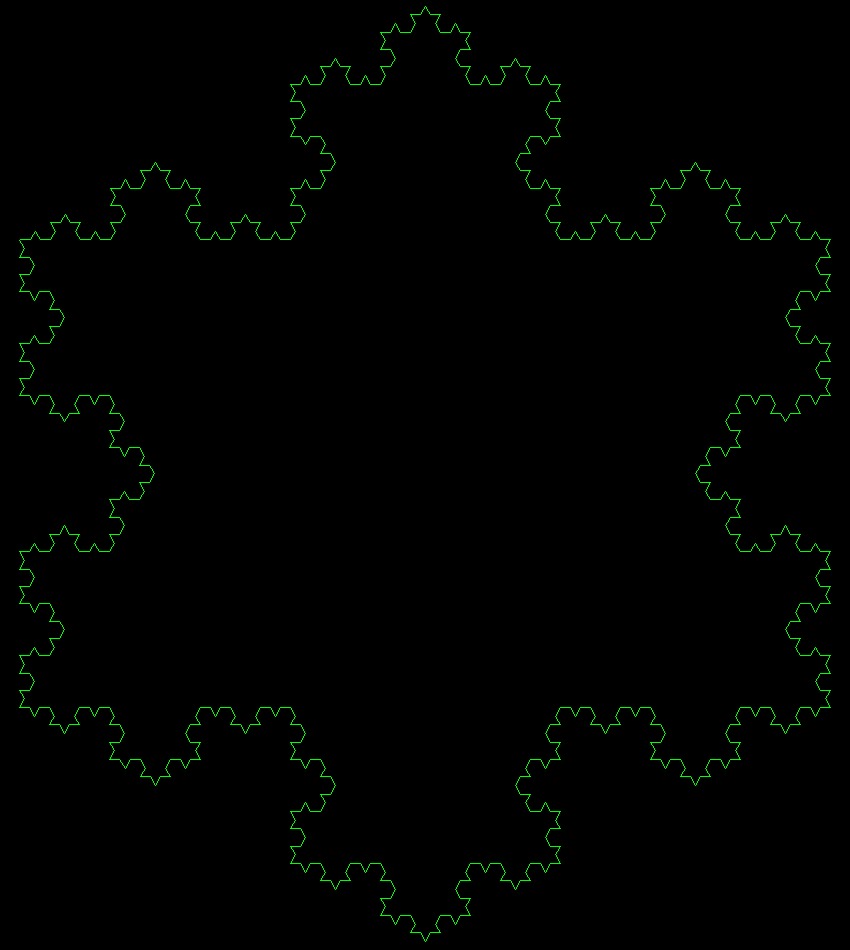

Categories:
- Programming Tasks
- Solutions by Programming Task
- Action!
- Action! Tool Kit
- Action! Real Math
- Ada
- APDF
- ALGOL 68
- ALGOL 68-l-system
- Amazing Hopper
- AutoHotkey
- BASIC256
- C
- C++
- Delphi
- Windows,Forms,SysUtils,Types,ExtCtrls,Graphics
- EasyLang
- Factor
- Forth
- FreeBASIC
- Fōrmulæ
- Go
- Go Graphics
- Haskell
- IS-BASIC
- J
- Java
- JavaScript
- Jq
- Julia
- Kotlin
- Lambdatalk
- Logo
- Lua
- Mathematica
- Wolfram Language
- Maxima
- Pages with broken file links
- Nim
- Nim-libgd
- Perl
- Phix
- Phix/pGUI
- Phix/online
- Processing
- Processing Python mode
- Prolog
- Python
- QBasic
- Quackery
- Racket
- Raku
- Ring
- Ruby
- RubyGems
- JRubyArt
- Rust
- Sidef
- VBScript
- Wren
- DOME
- XPL0
- Zkl
