# Ulam spiral (for primes)

Ulam spiral (for primes)
You are encouraged to solve this task according to the task description, using any language you may know.

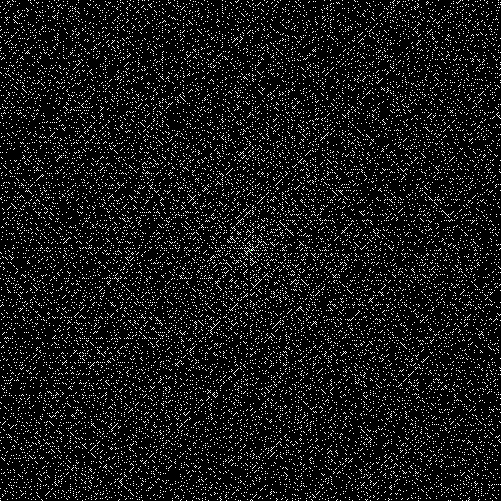

An Ulam spiral (of primes) is a method of visualizing primes when expressed in a (normally counter-clockwise) outward spiral (usually starting at 1),   constructed on a square grid, starting at the "center".

An Ulam spiral is also known as a   prime spiral.

The first grid (green) is shown with sequential integers,   starting at   1.

In an Ulam spiral of primes, only the primes are shown (usually indicated by some glyph such as a dot or asterisk),   and all non-primes as shown as a blank   (or some other whitespace).

Of course, the grid and border are not to be displayed (but they are displayed here when using these Wiki HTML tables).

Normally, the spiral starts in the "center",   and the   2nd   number is to the viewer's right and the number spiral starts from there in a counter-clockwise direction.

There are other geometric shapes that are used as well, including clock-wise spirals.

Also, some spirals (for the   2nd   number)   is viewed upwards from the   1st   number instead of to the right, but that is just a matter of orientation.

Sometimes, the starting number can be specified to show more visual striking patterns (of prime densities).

[A larger than necessary grid (numbers wise) is shown here to illustrate the pattern of numbers on the diagonals   (which may be used by the method to orientate the direction of spiral-construction algorithm within the example computer programs)].

Then, in the next phase in the transformation of the Ulam prime spiral,   the non-primes are translated to blanks.

In the orange grid below,   the primes are left intact,   and all non-primes are changed to blanks.

Then, in the final transformation of the Ulam spiral (the yellow grid),   translate the primes to a glyph such as a     or some other suitable glyph.

 65 64 63 62 61 60 59 58 57 66 37 36 35 34 33 32 31 56 67 38 17 16 15 14 13 30 55 68 39 18 5 4 3 12 29 54 69 40 19 6 1 2 11 28 53 70 41 20 7 8 9 10 27 52 71 42 21 22 23 24 25 26 51 72 43 44 45 46 47 48 49 50 73 74 75 76 77 78 79 80 81
 61 59 37 31 67 17 13 5 3 29 19 2 11 53 41 7 71 23 43 47 73 79
 • • • • • • • • • • • • • • • • • • • • • •

The Ulam spiral becomes more visually obvious as the grid increases in size.

For any sized   N × N   grid,   construct and show an Ulam spiral (counter-clockwise) of primes starting at some specified initial number   (the default would be 1),   with some suitably   dotty   (glyph) representation to indicate primes,   and the absence of dots to indicate non-primes.

You should demonstrate the generator by showing at Ulam prime spiral large enough to (almost) fill your terminal screen.

## 11l

Translation of: Python
```F cell(n, =x, =y, start = 1)
V d = 0
y = y - n I/ 2
x = x - (n - 1) I/ 2
V l = 2 * max(abs(x), abs(y))
d = I y >= x {(l * 3 + x + y)} E (l - x - y)
R (l - 1) ^ 2 + d + start - 1

F show_spiral(n, symbol = ‘# ’, start = 1, =space = ‘’)
V top = start + n * n + 1
V is_prime = [0B, 0B, 1B] [+] [1B, 0B] * (top I/ 2)
L(x) 3 .< 1 + Int(sqrt(top))
I !is_prime[x]
L.continue
L(i) (x * x .< top).step(x * 2)
is_prime[i] = 0B

(Int -> String) f = _ -> @symbol

I space == ‘’
space = ‘ ’ * symbol.len

I symbol.empty
V max_str = String(n * n + start - 1).len
I space == ‘’
space = (‘.’ * max_str)‘ ’
f = x -> String(x).rjust(@max_str)‘ ’

V cell_str = x -> I @is_prime[x] {@f(x)} E @space

L(y) 0 .< n
print((0 .< n).map(x -> cell(@n, x, @y, @start)).map(v -> @cell_str(v)).join(‘’))
print()

show_spiral(10, symbol' ‘# ’, space' ‘  ’)
show_spiral(9, symbol' ‘’, space' ‘ - ’)```
Output:
```      #
#   #
#           #   #
#   #       #
#   #   #
#     # #   #
#   #
#       #
#       #       #
#           #

-  -  -  - 61  - 59  -  -
- 37  -  -  -  -  - 31  -
67  - 17  -  -  - 13  -  -
-  -  -  5  -  3  - 29  -
-  - 19  -  -  2 11  - 53
- 41  -  7  -  -  -  -  -
71  -  -  - 23  -  -  -  -
- 43  -  -  - 47  -  -  -
73  -  -  -  -  - 79  -  -
```

## 360 Assembly

Translation of: Fortran

Compacted and optimized solution.

```*        Ulam spiral               26/04/2016
ULAM     CSECT
USING  ULAM,R13           set base register
SAVEAREA B      STM-SAVEAREA(R15)  skip savearea
DC     17F'0'             savearea
STM      STM    R14,R12,12(R13)    prolog
ST     R13,4(R15)         save previous SA
ST     R15,8(R13)         linkage in previous SA
LA     R5,1               n=1
LH     R8,NSIZE           x=nsize
SRA    R8,1
LA     R8,1(R8)           x=nsize/2+1
LR     R9,R8              y=x
LR     R1,R5              n
BAL    R14,ISPRIME
C      R0,=F'1'           if isprime(n)
BNE    NPRMJ0
BAL    R14,SPIRALO        spiral(x,y)=o
NPRMJ0   LA     R5,1(R5)           n=n+1
LA     R6,1               i=1
LOOPI1   LH     R2,NSIZE           do i=1 to nsize-1 by 2
BCTR   R2,0
CR     R6,R2              if i>nsize-1
BH     ELOOPI1
LR     R7,R6              j=i; do j=1 to i
LOOPJ1   LA     R8,1(R8)           x=x+1
LR     R1,R5              n
BAL    R14,ISPRIME
C      R0,=F'1'           if isprime(n)
BNE    NPRMJ1
BAL    R14,SPIRALO        spiral(x,y)=o
NPRMJ1   LA     R5,1(R5)           n=n+1
BCT    R7,LOOPJ1          next j
ELOOPJ1  LR     R7,R6              j=i; do j=1 to i
LOOPJ2   BCTR   R9,0               y=y-1
LR     R1,R5              n
BAL    R14,ISPRIME
C      R0,=F'1'           if isprime(n)
BNE    NPRMJ2
BAL    R14,SPIRALO        spiral(x,y)=o
NPRMJ2   LA     R5,1(R5)           n=n+1
BCT    R7,LOOPJ2          next j
ELOOPJ2  LR     R7,R6              j=i
LA     R7,1(R7)           j=i+1; do j=1 to i+1
LOOPJ3   BCTR   R8,0               x=x-1
LR     R1,R5              n
BAL    R14,ISPRIME
C      R0,=F'1'           if isprime(n)
BNE    NPRMJ3
BAL    R14,SPIRALO        spiral(x,y)=o
NPRMJ3   LA     R5,1(R5)           n=n+1
BCT    R7,LOOPJ3          next j
ELOOPJ3  LR     R7,R6              j=i
LA     R7,1(R7)           j=i+1; do j=1 to i+1
LOOPJ4   LA     R9,1(R9)           y=y+1
LR     R1,R5              n
BAL    R14,ISPRIME
C      R0,=F'1'           if isprime(n)
BNE    NPRMJ4
BAL    R14,SPIRALO        spiral(x,y)=o
NPRMJ4   LA     R5,1(R5)           n=n+1
BCT    R7,LOOPJ4          next j
ELOOPJ4  LA     R6,2(R6)           i=i+2
B      LOOPI1
ELOOPI1  LH     R7,NSIZE           j=nsize
BCTR   R7,0               j=nsize-1; do j=1 to nsize-1
LOOPJ5   LA     R8,1(R8)           x=x+1
LR     R1,R5              n
BAL    R14,ISPRIME
C      R0,=F'1'           if isprime(n)
BNE    NPRMJ5
BAL    R14,SPIRALO        spiral(x,y)=o
NPRMJ5   LA     R5,1(R5)           n=n+1
BCT    R7,LOOPJ5          next j
ELOOPJ5  LA     R6,1               i=1
LOOPI2   CH     R6,NSIZE           do i=1 to nsize
BH     ELOOPI2
LA     R10,PG             reset buffer
LA     R7,1               j=1
LOOPJ6   CH     R7,NSIZE           do j=1 to nsize
BH     ELOOPJ6
LR     R1,R7              j
BCTR   R1,0               (j-1)
MH     R1,NSIZE           (j-1)*nsize
AR     R1,R6              r1=(j-1)*nsize+i
LA     R14,SPIRAL-1(R1)   @spiral(j,i)
MVC    0(1,R10),0(R14)    output spiral(j,i)
LA     R10,1(R10)         pgi=pgi+1
LA     R7,1(R7)           j=j+1
B      LOOPJ6
ELOOPJ6  XPRNT  PG,80              print
LA     R6,1(R6)           i=i+1
B      LOOPI2
ELOOPI2  L      R13,4(0,R13)       reset previous SA
LM     R14,R12,12(R13)    restore previous env
XR     R15,R15            set return code
BR     R14                call back
ISPRIME  CNOP   0,4     ---------- isprime function
C      R1,=F'2'           if nn=2
BNE    NOT2
LA     R0,1               rr=1
B      ELOOPII
NOT2     C      R1,=F'2'           if nn<2
BL     RRZERO
LR     R2,R1              nn
LA     R4,2               2
SRDA   R2,32              shift
DR     R2,R4              nn/2
C      R2,=F'0'           if nn//2=0
BNE    TAGII
RRZERO   SR     R0,R0              rr=0
B      ELOOPII
TAGII    LA     R0,1               rr=1
LA     R4,3               ii=3
LOOPII   LR     R3,R4              ii
MR     R2,R4              ii*ii
CR     R3,R1              if ii*ii<=nn
BH     ELOOPII
LR     R3,R1              nn
LA     R2,0               clear
DR     R2,R4              nn/ii
LTR    R2,R2              if nn//ii=0
BNZ    NEXTII
SR     R0,R0              rr=0
B      ELOOPII
NEXTII   LA     R4,2(R4)           ii=ii+2
B      LOOPII
ELOOPII  BR     R14     ---------- end isprime return rr
SPIRALO  CNOP   0,4     ---------- spiralo subroutine
LR     R1,R8              x
BCTR   R1,0               x-1
MH     R1,NSIZE           (x-1)*nsize
AR     R1,R9              r1=(x-1)*nsize+y
LA     R10,SPIRAL-1(R1)   r10=@spiral(x,y)
MVC    0(1,R10),O         spiral(x,y)=o
BR     R14     ---------- end spiralo
NS       EQU    79                 4n+1
NSIZE    DC     AL2(NS)            =H'ns'
O        DC     CL1'*'             if prime
PG       DC     CL80' '            buffer
LTORG
SPIRAL   DC     (NS*NS)CL1' '
YREGS
END    ULAM```
Output:
```        *   * *   *
*     *         *
*   * *
* *     *
* *   *       *
* *   *
*   * *     * * *
* * * *   *
* * *
*   *  ** * * *
* * *
*   *
*   * *   *   * *
*   *     *     *
*           *
* *     *   *   *
*           *
*   * *
* *   *     *
```

This is a generic solution. It is straightforward to use it to print spirals for any kind of numbers, rather than spirals of primes, only.

The specification of package generic_ulam is as follows:

```generic
Size: Positive;
-- determines the size of the square
with function Represent(N: Natural) return String;
-- this turns a number into a string to be printed
-- the length of the output should not change
-- e.g., Represent(N) may return " #" if N is a prime
-- and "  " else
with procedure Put_String(S: String);
-- outputs a string, no new line
with procedure New_Line;
-- the name says all
package Generic_Ulam is

procedure Print_Spiral;
-- calls Put_String(Represent(I)) N^2 times
--       and New_Line N times

end Generic_Ulam;
```

Here is the implementation:

```package body Generic_Ulam is

subtype Index is Natural range 0 .. Size-1;
subtype Number is Positive range 1 .. Size**2;

function Cell(Row, Column: Index) return Number is
-- outputs the number at the given position in the square
-- taken from the Python solution
X: Integer := Column - (Size-1)/2;
Y: Integer := Row - Size/2;
MX: Natural := abs(X);
MY: Natural := abs(Y);
L: Natural := 2 * Natural'Max(MX, MY);
D: Integer;
begin
if Y >= X then
D := 3 * L + X + Y;
else
D := L - X - Y;
end if;
return (L-1) ** 2 + D;
end Cell;

procedure Print_Spiral is
N: Number;
begin
for R in Index'Range loop
for C in Index'Range loop
N := Cell(R, C);
Put_String(Represent(N));
end loop;
New_Line;
end loop;
end Print_Spiral;

end Generic_Ulam;
```

The folowing implementation prints a 29*29 spiral with the primes represented as numbers, and a 10*10 spiral with the primes as boxes. It uses the generic function Prime_Numbers.Is_Prime, as specified in Prime decomposition#Ada.

```with Generic_Ulam, Ada.Text_IO, Prime_Numbers;

procedure Ulam is

package P is new Prime_Numbers(Natural, 0, 1, 2);

function Vis(N: Natural) return String is
(if P.Is_Prime(N) then " <>" else "   ");

function Num(N: Natural) return String is
(if P.Is_Prime(N) then
(if N < 10 then "  " elsif N < 100 then " " else "") & Natural'Image(N)
else " ---");

procedure NL is
begin
end NL;

package Numeric is new Generic_Ulam(29, Num,  Ada.Text_IO.Put, NL);
package Visual  is new Generic_Ulam(10, Vis,  Ada.Text_IO.Put, NL);

begin
Numeric.Print_Spiral;
NL;
Visual.Print_Spiral;
end Ulam;
```
Output:
``` --- --- --- --- --- --- --- --- --- --- --- --- 773 --- --- --- 769 --- --- --- --- --- --- --- 761 --- --- --- 757
--- 677 --- --- --- 673 --- --- --- --- --- --- --- --- --- --- --- 661 --- 659 --- --- --- --- --- 653 --- --- ---
787 --- 577 --- --- --- --- --- 571 --- 569 --- --- --- --- --- 563 --- --- --- --- --- 557 --- --- --- --- --- ---
--- --- --- --- --- --- --- --- --- 479 --- --- --- --- --- --- --- --- --- --- --- 467 --- --- --- 463 --- --- ---
--- --- --- --- 401 --- --- --- 397 --- --- --- --- --- --- --- 389 --- --- --- --- --- 383 --- --- --- --- --- ---
--- --- --- 487 --- --- --- --- --- --- --- --- --- 317 --- --- --- 313 --- 311 --- --- --- 307 --- 461 --- 647 ---
--- --- --- --- --- --- 257 --- --- --- --- --- 251 --- --- --- --- --- --- --- --- --- 241 --- 379 --- --- --- 751
--- 683 --- --- --- --- --- 197 --- --- --- 193 --- 191 --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
--- --- --- --- --- --- --- --- --- --- --- --- --- --- 139 --- 137 --- --- --- --- --- 239 --- --- --- 547 --- ---
--- --- --- 491 --- --- --- 199 --- 101 --- --- ---  97 --- --- --- --- --- --- --- 181 --- --- --- 457 --- 643 ---
--- --- --- --- --- --- --- --- --- --- --- --- --- ---  61 ---  59 --- --- --- 131 --- --- --- --- --- --- --- ---
--- --- --- --- --- 331 --- --- --- 103 ---  37 --- --- --- --- ---  31 ---  89 --- 179 --- --- --- --- --- 641 ---
797 --- 587 --- 409 --- 263 --- 149 ---  67 ---  17 --- --- ---  13 --- --- --- --- --- --- --- 373 --- --- --- ---
--- --- --- --- --- --- --- --- --- --- --- --- ---   5 ---   3 ---  29 --- --- --- --- --- --- --- --- --- --- ---
--- --- --- --- --- --- --- --- 151 --- --- ---  19 --- ---   2  11 ---  53 --- 127 --- 233 --- --- --- 541 --- 743
--- 691 --- --- --- --- --- --- --- 107 ---  41 ---   7 --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
--- --- --- --- --- --- --- --- --- ---  71 --- --- ---  23 --- --- --- --- --- --- --- --- --- --- --- --- --- ---
--- --- --- 499 --- 337 --- --- --- 109 ---  43 --- --- ---  47 --- --- ---  83 --- 173 --- --- --- 449 --- --- ---
--- --- 593 --- --- --- 269 --- --- ---  73 --- --- --- --- ---  79 --- --- --- --- --- 229 --- 367 --- --- --- 739
--- --- --- --- --- --- --- --- --- --- --- 113 --- --- --- --- --- --- --- --- --- --- --- 293 --- --- --- --- ---
--- --- --- --- --- --- 271 --- 157 --- --- --- --- --- 163 --- --- --- 167 --- --- --- 227 --- --- --- --- --- ---
--- --- --- 503 --- --- --- 211 --- --- --- --- --- --- --- --- --- --- --- 223 --- --- --- --- --- --- --- 631 ---
--- --- --- --- 419 --- --- --- --- --- 277 --- --- --- 281 --- 283 --- --- --- --- --- --- --- --- --- --- --- ---
--- --- --- --- --- --- --- --- --- 347 --- 349 --- --- --- 353 --- --- --- --- --- 359 --- --- --- 443 --- --- ---
809 --- 599 --- 421 --- --- --- --- --- --- --- --- --- 431 --- 433 --- --- --- --- --- 439 --- --- --- --- --- 733
--- 701 --- --- --- 509 --- --- --- --- --- --- --- --- --- --- --- 521 --- 523 --- --- --- --- --- --- --- --- ---
811 --- 601 --- --- --- --- --- 607 --- --- --- --- --- 613 --- --- --- 617 --- 619 --- --- --- --- --- --- --- ---
--- --- --- --- --- --- --- 709 --- --- --- --- --- --- --- --- --- 719 --- --- --- --- --- --- --- 727 --- --- ---
--- --- --- --- --- --- --- --- 821 --- 823 --- --- --- 827 --- 829 --- --- --- --- --- --- --- --- --- 839 --- ---

<>
<>    <>
<>                <>    <>
<>    <>          <>
<>    <>    <>
<>       <> <>    <>
<>    <>
<>          <>
<>          <>          <>
<>                <>         ```

## ALGOL 68

Works with: ALGOL 68G version Any - tested with release 2.8.3.win32
```BEGIN # construct a Ulam spiral for primes                                   #
PR read "primes.incl.a68" PR                   # include prime utilities #
# prints a Ulam spiral for primes with the specified width,              #
#        starting from init. Primes will be indicated by prime char and  #
#        non-primes by composite char. The center of the spiral will be  #
#        indicated by center char - unless the center value is prime     #
PROC print ulam spiral for primes = ( INT width, init, CHAR prime char, composite char, center char )VOID:
IF width >= 1 THEN
INT n = IF ODD width THEN width ELSE width + 1 FI;
[]BOOL prime = PRIMESIEVE ( init + ( n * n ) );
[ 1 : n, 1 : n ]CHAR spiral; FOR i TO n DO FOR j TO n DO spiral[ i, j ] := "_" OD OD;
INT y := ( n + 1 ) OVER 2;
INT x := y;
INT v := init;
spiral[ x, y ] := IF prime[ init ] THEN prime char ELSE center char FI;
INT w := 0;
WHILE x < 1 UPB spiral DO
w +:= 2;
x +:= 1;
y +:= 1;
FOR i TO w DO                                 #  right edge #
spiral[ x, y -:= 1 ] := IF prime[ v +:= 1 ] THEN prime char ELSE composite char FI
OD;
FOR i TO w DO                                 #    top edge #
spiral[ x -:= 1, y ] := IF prime[ v +:= 1 ] THEN prime char ELSE composite char FI
OD;
FOR i TO w DO                                 #   left edge #
spiral[ x, y +:= 1 ] := IF prime[ v +:= 1 ] THEN prime char ELSE composite char FI
OD;
FOR i TO w DO                                 # bottom edge #
spiral[ x +:= 1, y ] := IF prime[ v +:= 1 ] THEN prime char ELSE composite char FI
OD
OD;
FOR v pos TO width DO
FOR h pos TO width DO
print( ( spiral[ h pos, v pos ] ) )
OD;
print( ( newline ) )
OD
FI # ulam spiral for primes # ;

print ulam spiral for primes( 35, 1, "#", " ", "+" )
END```
Output:
```    # #                     #     #
# #     #   #           #
#   # #   #
#   #       #   # #
#   #           # #     #
# #     # #     #     #
#           #           #   #     #
#     #   #       #     #
#   #         #   # #   # # #
#       #     #         # #   #
#     #   # #               #
# #     #   #   #
#   #   # #   #       #   # #
# #   #
#       #   # #     # # #     # # #
# # # # # # # #   #       #
# # #           #
#   # +## # # #   # # #
#       # # #
#   #
#   # #   # #   #   # #   #   # #
#   #   #     #     # #   #
#           #
# #     #   #   #       #
#     #   #           #       #
#     #     #   # #
# #   #     #   #     #
# # # #         # #     #     # #
#   #           # #
# #     #     #   # #
# #       #         #       #     #
# #   # #         #
#   #     #     #         #
# #     #                 #
#       #           #   #     #
```

## C

```#include <stdio.h>
#include <stdint.h>
#include <stdlib.h>
#include <math.h>

typedef uint32_t bitsieve;

unsigned sieve_check(bitsieve *b, const unsigned v)
{
if ((v != 2 && !(v & 1)) || (v < 2))
return 0;
else
return !(b[v >> 6] & (1 << (v >> 1 & 31)));
}

bitsieve* sieve(const unsigned v)
{
unsigned i, j;
bitsieve *b = calloc((v >> 6) + 1, sizeof(uint32_t));

for (i = 3; i <= sqrt(v); i += 2)
if (!(b[i >> 6] & (1 << (i >> 1 & 31))))
for (j = i*i; j < v; j += (i << 1))
b[j >> 6] |= (1 << (j >> 1 & 31));

return b;
}

#define max(x,y) ((x) > (y) ? (x) : (y))

/* This mapping taken from python solution */
int ulam_get_map(int x, int y, int n)
{
x -= (n - 1) / 2;
y -= n / 2;

int mx = abs(x), my = abs(y);
int l = 2 * max(mx, my);
int d = y >= x ? l * 3 + x + y : l - x - y;

return pow(l - 1, 2) + d;
}

/* Passing a value of 0 as glyph will print numbers */
void output_ulam_spiral(int n, const char glyph)
{
/* An even side length does not make sense, use greatest odd value < n */
n -= n % 2 == 0 ? 1 : 0;

const char *spaces = ".................";
int mwidth = log10(n * n) + 1;

bitsieve *b = sieve(n * n + 1);
int x, y;

for (x = 0; x < n; ++x) {
for (y = 0; y < n; ++y) {
int z = ulam_get_map(y, x, n);

if (glyph == 0) {
if (sieve_check(b, z))
printf("%*d ", mwidth, z);
else
printf("%.*s ", mwidth, spaces);
}
else {
printf("%c", sieve_check(b, z) ? glyph : spaces[0]);
}
}
printf("\n");
}

free(b);
}

int main(int argc, char *argv[])
{
const int n = argc < 2 ? 9 : atoi(argv[1]);

output_ulam_spiral(n, 0);
printf("\n");

output_ulam_spiral(n, '#');
printf("\n");

return 0;
}
```
Output:

Run with a side-length of 29

```... ... ... ... ... ... ... ... ... ... ... ... 773 ... ... ... 769 ... ... ... ... ... ... ... 761 ... ... ... 757
... 677 ... ... ... 673 ... ... ... ... ... ... ... ... ... ... ... 661 ... 659 ... ... ... ... ... 653 ... ... ...
787 ... 577 ... ... ... ... ... 571 ... 569 ... ... ... ... ... 563 ... ... ... ... ... 557 ... ... ... ... ... ...
... ... ... ... ... ... ... ... ... 479 ... ... ... ... ... ... ... ... ... ... ... 467 ... ... ... 463 ... ... ...
... ... ... ... 401 ... ... ... 397 ... ... ... ... ... ... ... 389 ... ... ... ... ... 383 ... ... ... ... ... ...
... ... ... 487 ... ... ... ... ... ... ... ... ... 317 ... ... ... 313 ... 311 ... ... ... 307 ... 461 ... 647 ...
... ... ... ... ... ... 257 ... ... ... ... ... 251 ... ... ... ... ... ... ... ... ... 241 ... 379 ... ... ... 751
... 683 ... ... ... ... ... 197 ... ... ... 193 ... 191 ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
... ... ... ... ... ... ... ... ... ... ... ... ... ... 139 ... 137 ... ... ... ... ... 239 ... ... ... 547 ... ...
... ... ... 491 ... ... ... 199 ... 101 ... ... ...  97 ... ... ... ... ... ... ... 181 ... ... ... 457 ... 643 ...
... ... ... ... ... ... ... ... ... ... ... ... ... ...  61 ...  59 ... ... ... 131 ... ... ... ... ... ... ... ...
... ... ... ... ... 331 ... ... ... 103 ...  37 ... ... ... ... ...  31 ...  89 ... 179 ... ... ... ... ... 641 ...
797 ... 587 ... 409 ... 263 ... 149 ...  67 ...  17 ... ... ...  13 ... ... ... ... ... ... ... 373 ... ... ... ...
... ... ... ... ... ... ... ... ... ... ... ... ...   5 ...   3 ...  29 ... ... ... ... ... ... ... ... ... ... ...
... ... ... ... ... ... ... ... 151 ... ... ...  19 ... ...   2  11 ...  53 ... 127 ... 233 ... ... ... 541 ... 743
... 691 ... ... ... ... ... ... ... 107 ...  41 ...   7 ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
... ... ... ... ... ... ... ... ... ...  71 ... ... ...  23 ... ... ... ... ... ... ... ... ... ... ... ... ... ...
... ... ... 499 ... 337 ... ... ... 109 ...  43 ... ... ...  47 ... ... ...  83 ... 173 ... ... ... 449 ... ... ...
... ... 593 ... ... ... 269 ... ... ...  73 ... ... ... ... ...  79 ... ... ... ... ... 229 ... 367 ... ... ... 739
... ... ... ... ... ... ... ... ... ... ... 113 ... ... ... ... ... ... ... ... ... ... ... 293 ... ... ... ... ...
... ... ... ... ... ... 271 ... 157 ... ... ... ... ... 163 ... ... ... 167 ... ... ... 227 ... ... ... ... ... ...
... ... ... 503 ... ... ... 211 ... ... ... ... ... ... ... ... ... ... ... 223 ... ... ... ... ... ... ... 631 ...
... ... ... ... 419 ... ... ... ... ... 277 ... ... ... 281 ... 283 ... ... ... ... ... ... ... ... ... ... ... ...
... ... ... ... ... ... ... ... ... 347 ... 349 ... ... ... 353 ... ... ... ... ... 359 ... ... ... 443 ... ... ...
809 ... 599 ... 421 ... ... ... ... ... ... ... ... ... 431 ... 433 ... ... ... ... ... 439 ... ... ... ... ... 733
... 701 ... ... ... 509 ... ... ... ... ... ... ... ... ... ... ... 521 ... 523 ... ... ... ... ... ... ... ... ...
811 ... 601 ... ... ... ... ... 607 ... ... ... ... ... 613 ... ... ... 617 ... 619 ... ... ... ... ... ... ... ...
... ... ... ... ... ... ... 709 ... ... ... ... ... ... ... ... ... 719 ... ... ... ... ... ... ... 727 ... ... ...
... ... ... ... ... ... ... ... 821 ... 823 ... ... ... 827 ... 829 ... ... ... ... ... ... ... ... ... 839 ... ...

............#...#.......#...#
.#...#...........#.#.....#...
#.#.....#.#.....#.....#......
.........#...........#...#...
....#...#.......#.....#......
...#.........#...#.#...#.#.#.
......#.....#.........#.#...#
.#.....#...#.#...............
..............#.#.....#...#..
...#...#.#...#.......#...#.#.
..............#.#...#........
.....#...#.#.....#.#.#.....#.
#.#.#.#.#.#.#...#.......#....
.............#.#.#...........
........#...#..##.#.#.#...#.#
.#.......#.#.#...............
..........#...#..............
...#.#...#.#...#...#.#...#...
..#...#...#.....#.....#.#...#
...........#...........#.....
......#.#.....#...#...#......
...#...#...........#.......#.
....#.....#...#.#............
.........#.#...#.....#...#...
#.#.#.........#.#.....#.....#
.#...#...........#.#.........
#.#.....#.....#...#.#........
.......#.........#.......#...
........#.#...#.#.........#..
```

The following shows a spiral that's not necessarily square, which has questionable merit:

```#include <stdio.h>
#include <stdlib.h>

int isprime(int n)
{
int p;
for (p = 2; p*p <= n; p++)
if (n%p == 0) return 0;
return n > 2;
}

int spiral(int w, int h, int x, int y)
{
return y ? w + spiral(h - 1, w, y - 1, w - x - 1) : x;
}

int main(int c, char **v)
{
int i, j, w = 50, h = 50, s = 1;
if (c > 1 && (w = atoi(v[1])) <= 0) w = 50;
if (c > 2 && (h = atoi(v[2])) <= 0) h = w;
if (c > 3 && (s = atoi(v[3])) <= 0) s = 1;

for (i = 0; i < h; i++) {
for (j = 0; j < w; j++)
putchar(isprime(w*h + s - 1 - spiral(w, h, j, i))[" #"]);
putchar('\n');
}
return 0;
}
```

## C++

### parametric version

```#include <cmath>
#include <iostream>
#include <string>
#include <iomanip>
#include <vector>

class ulamSpiral {
public:
void create( unsigned n, unsigned startWith = 1 ) {
_lst.clear();
if( !( n & 1 ) ) n++;
_mx = n;
unsigned v = n * n;
_wd = static_cast<unsigned>( log10( static_cast<long double>( v ) ) ) + 1;
for( unsigned u = 0; u < v; u++ )
_lst.push_back( -1 );

arrange( startWith );

}
void display( char c ) {
if( !c ) displayNumbers();
else displaySymbol( c );
}

private:
bool isPrime( unsigned u ) {
if( u < 4 ) return u > 1;
if( !( u % 2 ) || !( u % 3 ) ) return false;

unsigned q = static_cast<unsigned>( sqrt( static_cast<long double>( u ) ) ),
c = 5;
while( c <= q ) {
if( !( u % c ) || !( u % ( c + 2 ) ) ) return false;
c += 6;
}
return true;
}
void arrange( unsigned s ) {
unsigned stp = 1, n = 1, posX = _mx >> 1,
posY = posX, stC = 0;
int dx = 1, dy = 0;

while( posX < _mx && posY < _mx ) {
_lst.at( posX + posY * _mx ) =  isPrime( s ) ? s : 0;
s++;

if( dx ) {
posX += dx;
if( ++stC == stp ) {
dy = -dx;
dx = stC = 0;
}
} else {
posY += dy;
if( ++stC == stp ) {
dx = dy;
dy = stC = 0;
stp++;
}
}
}
}
void displayNumbers() {
unsigned ct = 0;
for( std::vector<unsigned>::iterator i = _lst.begin(); i != _lst.end(); i++ ) {
if( *i ) std::cout << std::setw( _wd ) << *i << " ";
else std::cout << std::string( _wd, '*' ) << " ";
if( ++ct >= _mx ) {
std::cout << "\n";
ct = 0;
}
}
std::cout << "\n\n";
}
void displaySymbol( char c ) {
unsigned ct = 0;
for( std::vector<unsigned>::iterator i = _lst.begin(); i != _lst.end(); i++ ) {
if( *i ) std::cout << c;
else std::cout << " ";
if( ++ct >= _mx ) {
std::cout << "\n";
ct = 0;
}
}
std::cout << "\n\n";
}

std::vector<unsigned> _lst;
unsigned _mx, _wd;
};

int main( int argc, char* argv[] )
{
ulamSpiral ulam;
ulam.create( 9 );
ulam.display( 0 );
ulam.create( 35 );
ulam.display( '#' );
return 0;
}
```
Output:
```** ** ** ** 61 ** 59 ** **
** 37 ** ** ** ** ** 31 **
67 ** 17 ** ** ** 13 ** **
** ** **  5 **  3 ** 29 **
** ** 19 ** **  2 11 ** 53
** 41 **  7 ** ** ** ** **
71 ** ** ** 23 ** ** ** **
** 43 ** ** ** 47 ** ** **
73 ** ** ** ** ** 79 ** **

# #                     #     #
# #     #   #           #
#   # #   #
#   #       #   # #
#   #           # #     #
# #     # #     #     #
#           #           #   #     #
#     #   #       #     #
#   #         #   # #   # # #
#       #     #         # #   #
#     #   # #               #
# #     #   #   #
#   #   # #   #       #   # #
# #   #
#       #   # #     # # #     # # #
# # # # # # # #   #       #
# # #           #
#   #  ## # # #   # # #
#       # # #
#   #
#   # #   # #   #   # #   #   # #
#   #   #     #     # #   #
#           #
# #     #   #   #       #
#     #   #           #       #
#     #     #   # #
# #   #     #   #     #
# # # #         # #     #     # #
#   #           # #
# #     #     #   # #
# #       #         #       #     #
# #   # #         #
#   #     #     #         #
# #     #                 #
#       #           #   #     #```

### generic version

ulam.hpp

```#pragma once

#include <cmath>
#include <sstream>
#include <iomanip>

inline bool is_prime(unsigned a)  {
if (a == 2) return true;
if (a <= 1 || a % 2 == 0) return false;
const unsigned max(std::sqrt(a));
for (unsigned n = 3; n <= max; n += 2) if (a % n == 0)  return false;
return true;
}

enum direction { RIGHT, UP, LEFT, DOWN };
const char* N = " ---";

template<const unsigned SIZE>
class Ulam
{
public:
Ulam(unsigned start = 1, const char c = '\0') {
direction dir = RIGHT;
unsigned y = SIZE / 2;
unsigned x = SIZE % 2 == 0 ?  y - 1 :  y; // shift left for even n's
for (unsigned j = start; j <= SIZE * SIZE - 1 + start; j++) {
if (is_prime(j)) {
std::ostringstream os("");
if (c == '\0') os << std::setw(4) << j;
else           os << "  " << c << ' ';
s[y][x] = os.str();
}
else s[y][x] = N;

switch (dir) {
case RIGHT : if (x <= SIZE - 1 && s[y - 1][x].empty() && j > start) { dir = UP; }; break;
case UP : if (s[y][x - 1].empty()) { dir = LEFT; }; break;
case LEFT : if (x == 0 || s[y + 1][x].empty()) { dir = DOWN; }; break;
case DOWN : if (s[y][x + 1].empty()) { dir = RIGHT; }; break;
}

switch (dir) {
case RIGHT : x += 1; break;
case UP : y -= 1; break;
case LEFT : x -= 1; break;
case DOWN : y += 1; break;
}
}
}

template<const unsigned S> friend std::ostream& operator <<(std::ostream&, const Ulam<S>&);

private:
std::string s[SIZE][SIZE];
};

template<const unsigned SIZE>
std::ostream& operator <<(std::ostream& os, const Ulam<SIZE>& u) {
for (unsigned i = 0; i < SIZE; i++) {
os << '[';
for (unsigned j = 0; j < SIZE; j++) os << u.s[i][j];
os << ']' << std::endl;
}
return os;
}
```

ulam.cpp

```#include <cstdlib>
#include <iostream>
#include "ulam.hpp"

int main(const int argc, const char* argv[]) {
using namespace std;

cout << Ulam<9>() << endl;
const Ulam<9> v(1, '*');
cout << v << endl;

return EXIT_SUCCESS;
}
```
Output:
```[ --- --- --- ---  61 ---  59 --- ---]
[ ---  37 --- --- --- --- ---  31 ---]
[  67 ---  17 --- --- ---  13 --- ---]
[ --- --- ---   5 ---   3 ---  29 ---]
[ --- ---  19 --- ---   2  11 ---  53]
[ ---  41 ---   7 --- --- --- --- ---]
[  71 --- --- ---  23 --- --- --- ---]
[ ---  43 --- --- ---  47 --- --- ---]
[  73 --- --- --- --- ---  79 --- ---]

[ --- --- --- ---  *  ---  *  --- ---]
[ ---  *  --- --- --- --- ---  *  ---]
[  *  ---  *  --- --- ---  *  --- ---]
[ --- --- ---  *  ---  *  ---  *  ---]
[ --- ---  *  --- ---  *   *  ---  * ]
[ ---  *  ---  *  --- --- --- --- ---]
[  *  --- --- ---  *  --- --- --- ---]
[ ---  *  --- --- ---  *  --- --- ---]
[  *  --- --- --- --- ---  *  --- ---]```

## Common Lisp

```(defun ulam-spiral (n)
(loop for a in (spiral n n (* n n)) do
(format t "~{~d~}~%" a)))

(defun spiral
(n m b &aux (row (loop for a below n
collect (if (primep (- b a))
'* '#\space))))
(if (= m 1) (list row)
(cons row (mapcar #'reverse
(apply #'mapcar #'list
(spiral (1- m) n
(- b n)))))))
(defun primep (n)
(when (> n 1) (loop for a from 2 to (isqrt n)
never (zerop (mod n a)))))
```
Output:
```> (ulam-spiral 139)
*         *       *           *               *     *       *         *           *     *           *     * *   *                       *
*       *     *           *           *     *           *         *           *       *         *                       *
*     *     *           *       *         *           *                   *     *         * *   *     * *                     *       *
* *           *         * *                             *   *             *         * *               * *     *   *
*     *                     *             *     *         *       *     *               *                       *     *     *       *   *
*           * *           *           *   *                             *     *     *       *     *                 *         *
*               *       *     *     *   *             *   * *   * *   *                       *                         *     *
*           *     *                 * *           *         *       *         *             *               *
*             *     *         *       *     *   *           *       *                     *             *   *       * *
* *   *   *     *   * *     *                           * *                           * *   *     * *     *     *   *                 *
*     *     *   *     *                                   *                   *   * *         *             *     *
*     * *         *                   *               *     *       *     *               *     *             *     * *
*     *       * *                             *   *     *     *       *   *       *   *                   *     *
*     *             *   *                 *       *         *     *       *                 *           *
*     *                       *           *       *   *       *     *         * *         * *           *               * *       *
* *   * *               *   *                       *     * *   *     *       *     *     *           *     *   * *           *
*   *     *             *           *           *     *         *             *               * *                     *
* *                               *         *     *       *     *               *       *         * *                   * *         *
*         *     *   *     *   *       *                     *       *                           * *               *                 *
*           *   *       *     *   *       *         * *     *                     *       *
* *   *     *               *   *     *           * *                 *     *   *     *           * *                       * *         *
*   *   * *       *     *     *             *     *                     *     * *   *             *   *       *               *
*                           * *   *     * *                           * *     *           *         *       *         *
*     *           * *   *             *         * *               *       *         *       *       *
*   * * *   *       *           *   *     *                   *     *   * *         * *         *                 * *   *     * *     *
*     *           *     *           *     *                 *   * *   *     *             *           *                           *
*                               * *         * *     *   *       *     *     *         *       *         * *         * *                 *
*     *   *                     *     * *   *             *     *         *                 *       *                 *         *
*     *           *               *           * *     *     *               *       *   * *   *                 *           *
*                 *   * *           * *   *                 *       *                             *         *   *     * *   *
*   *   *     *   * * *             *       *   *     *       *   * *                       *         *       *     *   *
*                             *   *                   *     *               * *         * *     *   *                       *     *
*         *             *                               *         *       *   *     *     *         * *                 *     *
* *           *       * *             *             *     *     *               * *     *           *     *                 *
*           *                       *               * *         * *     *   *     *     *             *               *                 *
* *   * *   *     *       *       *                 *   *     * *                 *             *     *       *         *
*   *     *       * *   *   *         * *                 *     *     *   *     *                 * *         *                 *
*     *     *               * *     *         *                       *                 *     *     *                 *
*         * *           *                   *   *           * *     *   * *     *   * * *               * *         *
*     *   *   * * *         *     *         *       *   *     *             *   * *           *         *
*     *     *     *               * *   * *   *       *               *
*       *   *       *     *           * *     * * * * * * *         * * * * *
*   *   * * *     * *             *   *   *   *       *         * *                           *           * *           *     *     *   *
*               * *   *     * *           *         *           *                 *
*         *     * *         * *           * *           *                     *     * *             *   *   *         *       * *
* *     * *         *   * * * *               *     *   *     * *   *     *             *           *     *               *
*   *                       *                 *                       *           *     *
* *     *     *                       *     *       *   * *   *     *       * * *             *         *     *   *     *
*         *   *     * *           *     *   *               *       *           *     *           *         *     * *           *
*           *           *           *     *               * *   *     *                 *           *                 *
*     * *     *   * *         *     * *     *             *           *     *   * *   *       * *   *     *   *                   *   *
*   *           *         *   *         *     *   *     *                                 * *                     * *     *   *     * *
*     *           *           *     *           *     *   *           *       *   *     *           *     *                       *
*           *       *   *     *             *                 *     * *       *       *       *         * * *
*                 * * *   * *   *       *     * *         *     *     *   *           *             *     *   *             *     *
*     *     *     *                       *     *         * *   * *               *           *                 *
*         *                   *   *             *     *       *         *       * *     * * * * *     *   *                 *     *
*   *         * *     * * *   *     *           * *   *     *     * *   *     *     *     * *         *     * *     *
* *           *   *                             *                 *
*           *     * *   * *   *       *   * *   * *     *     * *         * * * *       * *     *   *   * *   *   *     *
*   *       * * *               *         * * *   *     *   *     *   * *                     *           *       *     *   *
* *   *     *     *                       *                 *
* *           *     *           *     *         *     *       *           *   *     * *             * * * *         * *   *             *
*   *         *     *   *     *   *       *       * *       *   *   *     * *         * *         *     * *                           *
*     *     *                 *           *           *           *                     *     *     *                 *     *
*   * *     *   *           * *   *     *     *       *   * *     *     *   *   *     *     *   *   * *       * *                 * *
*   *   * *       * *   *     *       * *   *   * *   *   * *   *   * *   * *   *     * *                       *   *
*   *                       *                 *                 *
* * *       *       * *       * * *         *     *   *     *
*   *   * *   *             * * * *       *     * * *   * * * **  *   *             *     *   * *           *         * *   * *   *
*                 *                 *     *           *           * * *
*     *   *     *             *         * *         *       *   * * * * * * * *   *     * *   * *   *             * *   *     * *
* * *     * *           * *               * * *     * * *     * *   *       *   * *     *     *   * *         * *         * *
*                             *           *                 *   * *
*           * *   *       *     *           *         * *   *       *   * *   *   *   *     * * *     *     *       *       *
* *         * *     * *   * * *   * *   *   *     * *
*                       *     *     *               * *   *     *                       *     *           *     *
*     *   *       *     *               *     * *     *   * *         *     *       * * * *       *   *   *         *   *             *
*     *   *                 *                 * * *   * *   *         *   *     * *
*           *               *     *       *   *     *     *           *           *     *
* *           *                     *     * *     *   *           *           * *   *             * *         *   *   *         *
*                                 *           *           *     *     * *     * *   * *     *         *             *     *   * *     *
*     *                     *     * *           *   *     *           *     *                 *
*         * *                           *           * *   *       *   *               * *         *       * *         *         *     *
* * *   * * *     *     *   * *   * * *             *   * *   *
*           *           *           *     *           *   *     * *                     *                 *     *     *
*       *     *     *   *             *     *                     * *     *       *     * *           *     *   * * * *
*                   *     * *       * *     * * *                 * *   *     * *     *     * *   * *                     * *
*           *                 *   *             *   * *   *     *
*                 *         * *     *     *           *   *       *   *             *   *   * *       *     * *           *           *
*       *         * *           * *     * * * * *         *       *     *     *     *             *                 *         * *   *
*                       *     *               *     *     *                 * *               *                 *           *
*         *       *                 *               * *   * *         *           * *     *   * *       *   * * * * *         *   *
*       * *                 * *                   * *   *       *     *     *   *         *   *     * *         *       *   *     * *
*     *         *       *     *   *                             *                 *
*   *     *     * *     *   * *   *     * *   *       *     *     *   * *   *     *                           *             *     *
*         *           *       *     *                   *       *         *     *     *       *     * *               *           *     *
*                 *           *   *     *                   *         * *               *                             *     *
*                 *             *     *     *   *     * *           *   *           * *     *         * * *     * *           *
* *   * *     *   *   * * * * *     *     *         * *           *         * *         *         *         * *         *     *
*                                   *           *   *     *                 * *         *                 *           *
*     *                                 * *     *               *     *           * *       * *     *       *   *       *
*       *   *     *           *         *                             *         * *         *       * *   * *           *         *     *
*     *               *       *     *     *                 *
* *   *     * *     *     *     *                             *         *     *           *             * *     * * *               * * *
*   * *     *     * * * * * *   *     *                           *     *             *   *       *       *     *
*                 *     *   * *           *     *   * *     *                     *     *                 *           *
*                         *         *     *                   *   * *     *                                     *   * *   * * * *
* *       *   *     *   *   *                 *       *     *   *     *             *     *     *                   *         * *
*   *     *       *     *         *     * *     *     *     *         *       *
*     *     *     *   *           *     * *           *     *         * *         * *     *         *             *                   *
*               *       *     *       *     *   *           *     *       *           *   *             *       *   *     *     * *
*                 *           *         * *               * *                 *                       *               *           *
* *                       *   *       *     *   *       *   *             *     *   *             *     * * *                 *
* *     *       * *     *                     *             *     *         *           *     * *   *       * *         *       *   *
*           *         * *                             *   *     * *           *   *             *               *
*     *       *                 *   *                   *   *           * *         *     *     * * *         *
*         *   * *         *     *   *             *     *   *           *       *     *           *   *     *               *     *   * *
*           *     *         *           *     *       *   *                                   *             *         *     *
*         * *     *               *     * *         *       *                 *     *                                     *
*   * * *   *   *         *       *         * *   *     *             *           *                     *       *       *   * *   *
*     *   *     *             *                 *         *       *         *                       *
*           *                 *         * *         * *   *                   *               *                           * *   *   *
*                         *       *     *   *                   *   *           *                       *         *   *
*   *                         *   * *     *                     * *                       *   *     *
*     * *   *             *     *               *     *       *   *     *     *       *     *         *           * *         *
*   *         *   *     *       *   *     * *   *                 *           *     *       *     *     *   *
*             *               * *           *     *   *                   *         *     *
*                     * *         *                 *             *   * *   *                 * *   *     *       *     * *
*   *   *           *         *                 * *   *             *     *                     *                 * *           *     *
*     *     *   *       *   *             *               *       *     *   *           *       *               * *         *
*   *     * *     *         * *         *       *     *     *         * *                 *         * *           *   *     *
*     *     *             *   *     *     *     *       *     *                                   *                 * *   *
*           *     *                           *                 *             *     *         *           * *     *           *
*                       *           *     * *           *                           *       *   *     *           * *
*     *                 *   *     *     *       *         *       *                 *     *   * *   *       *               * *
*         * *           *           *                 *         *           *     * *         * *     *         *                 *
*   *       *                 *   *           *             *     *     *   *       *     *   *                   *           *
* *   * *                           *           *             *     *                     *       *   *                 *     *
NIL
```

## Crystal

Translation of: Go
```enum Direction
RIGHT
UP
LEFT
DOWN
end

def generate(n : Int32, i : Int32, c : Int32 | String)
s = Array.new(n) { Array.new(n) { "" } }

dir = Direction::RIGHT
y = n // 2
x = n % 2 == 0 ? y - 1 : y

j = 1
while j <= n * n - 1 + i
s[y][x] = is_prime(j) ? j.to_s : c.to_s

# printf "j: %s, x: %s, y: %s \n", j, x, y

case dir
when Direction::RIGHT
dir = Direction::UP if x <= n - 1 && s[y - 1][x] == "" && j > i
when Direction::UP
dir = Direction::LEFT if s[y][x - 1] == ""
when Direction::LEFT
dir = Direction::DOWN if x == 0 || s[y + 1][x] == ""
when Direction::DOWN
dir = Direction::RIGHT if s[y][x + 1] == ""
end

case dir
when Direction::RIGHT
x += 1
when Direction::UP
y -= 1
when Direction::LEFT
x -= 1
when Direction::DOWN
y += 1
end

j += 1
end

s.map(&.join("\t")).join("\n")
end

def is_prime(n : Int32) : Bool
return true if n == 2
return false if n % 2 == 0 || n < 1

i = 3
while i <= Math.sqrt(n)
return false if n % i == 0
i += 2
end

true
end

puts generate 7, 1, "*"
```
Output:
```37      *       *       *       *       *       31
*       17      *       *       *       13      *
*       *       5       *       3       *       29
*       19      *       1       2       11      *
41      *       7       *       *       *       *
*       *       *       23      *       *       *
43      *       *       *       47      *       *
```

## D

Translation of: python
```import std.stdio, std.math, std.algorithm, std.array, std.range;

int cell(in int n, int x, int y, in int start=1) pure nothrow @safe @nogc {
x = x - (n - 1) / 2;
y = y - n / 2;
immutable l = 2 * max(x.abs, y.abs);
immutable d = (y > x) ? (l * 3 + x + y) : (l - x - y);
return (l - 1) ^^ 2 + d + start - 1;
}

void showSpiral(in int n, in string symbol="# ", in int start=1, string space=null) /*@safe*/ {
if (space is null)
space = " ".replicate(symbol.length);

immutable top = start + n ^^ 2 + 1;
auto isPrime = [false, false, true] ~ [true, false].replicate(top / 2);
foreach (immutable x; 3 .. 1 + cast(int)real(top).sqrt) {
if (!isPrime[x])
continue;
foreach (immutable i; iota(x ^^ 2, top, x * 2))
isPrime[i] = false;
}

string cellStr(in int x) pure nothrow @safe @nogc {
return isPrime[x] ? symbol : space;
}

foreach (immutable y; 0 .. n)
n.iota.map!(x => cell(n, x, y, start)).map!cellStr.joiner.writeln;
}

void main() {
35.showSpiral;
}
```
Output:
```        #   #                                           #           #
#   #           #       #                       #
#       #   #       #
#       #               #       #   #
#       #                       #   #           #
#   #           #   #           #           #
#                       #                       #       #           #
#           #       #               #           #
#       #                   #       #   #       #   #   #
#               #           #                   #   #       #
#           #       #   #                               #
#   #           #       #       #
#       #       #   #       #               #       #   #
#   #       #
#               #       #   #           #   #   #           #   #   #
#   #   #   #   #   #   #   #       #               #
#   #   #                       #
#       #     # #   #   #   #       #   #   #
#               #   #   #
#       #
#       #   #       #   #       #       #   #       #       #   #
#       #       #           #           #   #       #
#                       #
#   #           #       #       #               #
#           #       #                       #               #
#           #           #       #   #
#   #       #           #       #           #
#   #   #   #                   #   #           #           #   #
#       #                       #   #
#   #           #           #       #   #
#   #               #                   #               #           #
#   #       #   #                   #
#       #           #           #                   #
#   #           #                                   #
#               #                       #       #           #     ```

### Alternative Version

This generates a PGM image, using the module from the Grayscale Image Task;

```import std.stdio, std.math, std.algorithm, std.array, grayscale_image;

uint cell(in uint n, int x, int y, in uint start=1) pure nothrow @safe @nogc {
x = x - (n - 1) / 2;
y = y - n / 2;
immutable l = 2 * max(x.abs, y.abs);
immutable d = (y > x) ? (l * 3 + x + y) : (l - x - y);
return (l - 1) ^^ 2 + d + start - 1;
}

bool[] primes(in uint n, in uint top, in uint start=1) pure nothrow @safe {
auto isPrime = [false, false, true] ~ [true, false].replicate(top / 2);

foreach (immutable x; 3 .. 1 + cast(uint)real(top).sqrt)
if (isPrime[x])
for (uint i = x ^^ 2; i < top; i += x * 2)
isPrime[i] = false;
return isPrime;
}

void main() {
enum n = 512;
enum start = 1;
immutable top = start + n ^^ 2 + 1;
immutable isPrime = primes(n, top, start);
auto img = new Image!Gray(n, n);

foreach (immutable y; 0 .. n)
foreach (immutable x; 0 .. n)
img[x, y] = isPrime[cell(n, x, y, start)] ? Gray.black : Gray.white;

img.savePGM("ulam_spiral.pgm");
}
```

## Delphi

Works with: Delphi version 6.0

```procedure DrawMatrixPrimes(Image: TImage; Mat: TMatrix);
{Display spiral, only marking cells that contain prime numbers}
var X,Y: integer;
var S: string;
var Size,Step: integer;
var Off: TSize;
var R: TRect;
begin
{Calculate size of grid}
Size:=Min(Image.Width,Image.Height);
Step:=Size div Length(Mat);
{Draw border rectangle}
Image.Canvas.Brush.Color:=clGreen;
Image.Canvas.Pen.Width:=4;
Image.Canvas.Rectangle(2,2,Length(Mat)*Step,Length(Mat)*Step);
{Setup font}
Image.Canvas.Font.Name:='Arial';
Image.Canvas.Font.Style:=[fsBold];
Image.Canvas.Font.Size:=14;
{Draw grid}
Image.Canvas.Pen.Width:=1;
{Draw vertical lines}
for X:=0 to Length(Mat) do
begin
Image.Canvas.MoveTo(X*Step,0);
Image.Canvas.LineTo(X*Step,Step*Length(Mat));
end;
{Draw horizontal lines}
for Y:=0 to Length(Mat) do
begin
Image.Canvas.MoveTo(0,Y*Step);
Image.Canvas.LineTo(Step*Length(Mat),Y*Step);
end;
{Label cells that contain primes}
for Y:=0 to High(Mat[0]) do
for X:=0 to High(Mat) do
if IsPrime(trunc(Mat[X,Y])) then
begin
{Color cells}
R:=Rect((X*Step)+2,(Y*Step)+2,X*Step+Step,Y*Step+Step);
InflateRect(R,-1,-1);
Image.Canvas.Pen.Width:=4;
Image.Canvas.Pen.Color:=clBlue;
Image.Canvas.Brush.Color:=clLime;
Image.Canvas.Rectangle(R);
{Label cell}
S:=Format('%0.0f',[Mat[X,Y]]);
Off:=Image.Canvas.TextExtent(S);
Off.CX:=(Step-Off.CX) div 2;
Off.CY:=(Step-Off.CY) div 2;
Image.Canvas.TextOut(X*Step+Off.CX,Y*Step+Off.CY,S);
end;
Image.Invalidate;
end;

procedure MakeSqrSpiralMatrix(var Mat: TMatrix; MatSize: integer);
{Create a spiral matrix of specified size}
var Inx: integer;
var R: TRect;

procedure DoTopRect(Off1,Off2: integer);
{Do top part of rectangle}
var X,Y: integer;
begin
for X:=R.Left+Off1 to R.Right+Off2 do
begin
Mat[X,R.Top]:=Inx;
Dec(Inx);
end;
end;

procedure DoRightRect(Off1,Off2: integer);
{Do Right part of rectangle}
var X,Y: integer;
begin
for Y:=R.Top+Off1 to R.Bottom+Off2 do
begin
Mat[R.Right,Y]:=Inx;
Dec(Inx);
end;
end;

procedure DoBottomRect(Off1,Off2: integer);
{Do bottom part of rectangle}
var X,Y: integer;
begin
for X:= R.Right+Off1 downto R.Left+Off2 do
begin
Mat[X,R.Bottom]:=Inx;
Dec(Inx);
end;
end;

procedure DoLeftRect(Off1,Off2: integer);
{Do left part of rectangle}
var X,Y: integer;
begin
for Y:=R.Bottom+Off1 downto R.Top+Off2 do
begin
Mat[R.Left,Y]:=Inx;
Dec(Inx);
end;
end;

procedure DoRect(R: TRect; var Inx: integer);
{Create one rotation of spiral around the rectangle}
begin
{The orientation of spiral is based in the size}
if (MatSize and 1)=0 then
begin
{Handle even sizes}
DoTopRect(0,0);
DoRightRect(1,0);
DoBottomRect(-1,0);
DoLeftRect(-1,1);
end
else
begin
{Handle odd sizes}
DoBottomRect(0,0);
DoLeftRect(-1,0);
DoTopRect(1,0);
DoRightRect(1,-1);
end
end;

begin
{Set matrix size}
SetLength(Mat,MatSize,MatSize);
{create matching rectangle}
R:=Rect(0,0,MatSize-1,MatSize-1);
Inx:=MatSize*MatSize;
{draw spiral around retangle and deflate rectanle until spiral is done}
while (R.Left<=R.Right) and (R.Top<=R.Bottom) do
begin
DoRect(R,Inx);
InflateRect(R,-1,-1);
end;
end;

procedure UlamPrimeSpiral(Image: TImage);
var Mat: TMatrix;
begin
MakeSqrSpiralMatrix(Mat,9);
DrawMatrixPrimes(Image,Mat);
end;
```
Output:
```
Elapsed Time: 1.550 ms.

```

## EasyLang

```func isprim num .
if num < 2
return 0
.
i = 2
while i <= sqrt num
if num mod i = 0
return 0
.
i += 1
.
return 1
.
n = 1
x = 50
y = 50
dx = 1
dy = 0
#
proc turn . .
if dx = 1
dx = 0
dy = 1
elif dy = 1
dy = 0
dx = -1
elif dx = -1
dx = 0
dy = -1
else
dx = 1
dy = 0
.
.
proc step . .
n += 1
x += dx * 1
y += dy * 1
move x y
if isprim n = 1
circle 0.5
.
.
textsize 3
move x y
lng = 0
#
for k to 49
step
lng += 2
turn
for j to lng - 1
step
.
for i to 3
turn
for j to lng
step
.
.
.```

## EchoLisp

The plot libray includes a plot-spiral function. The nice result is here : EchoLisp Ulam spiral .

```(lib 'plot)

(define *red* (rgb 1 0 0))
(define (ulam n nmax) (if ( prime? n) *red* (gray (// n nmax))))
(plot-spiral ulam 1000) ;; range [0...1000]
```

## Elixir

Translation of: Ruby
```defmodule Ulam do
defp cell(n, x, y, start) do
y = y - div(n, 2)
x = x - div(n - 1, 2)
l = 2 * max(abs(x), abs(y))
d = if y >= x, do: l*3 + x + y, else: l - x - y
(l - 1)*(l - 1) + d + start - 1
end

def show_spiral(n, symbol\\nil, start\\1) do
IO.puts "\nN : #{n}"
if symbol==nil, do: format = "~#{length(to_char_list(start + n*n - 1))}s "
prime = prime(n*n + start)
Enum.each(0..n-1, fn y ->
Enum.each(0..n-1, fn x ->
i = cell(n, x, y, start)
if symbol do
IO.write if i in prime, do: Enum.at(symbol,0), else: Enum.at(symbol,1)
else
:io.fwrite format, [if i in prime do to_char_list(i) else "" end]
end
end)
IO.puts ""
end)
end

defp prime(num), do: prime(Enum.to_list(2..num), [])
defp prime([], p), do: Enum.reverse(p)
defp prime([h|t], p), do: prime((for i <- t, rem(i,h)>0, do: i), [h|p])
end

Ulam.show_spiral(9)
Ulam.show_spiral(25)
Ulam.show_spiral(25, ["#"," "])
```
Output:
```N : 9
61    59
37                31
67    17          13
5     3    29
19        2 11    53
41     7
71          23
43          47
73                79

N : 25
577                     571     569                     563                     557
479                                             467             463
401             397                             389                     383
487                                     317             313     311             307     461
257                     251                                     241     379
197             193     191
139     137                     239             547
491             199     101              97                             181             457
61      59             131
331             103      37                      31      89     179
587     409     263     149      67      17              13                             373
5       3      29
151              19           2  11      53     127     233             541
107      41       7
71              23
499     337             109      43              47              83     173             449
593             269              73                      79                     229     367
113                                             293
271     157                     163             167             227
503             211                                             223
419                     277             281     283
347     349             353                     359             443
599     421                                     431     433                     439
509                                             521     523
601                     607                     613             617     619

N : 25
#     # #     #     #
#           #   #
#   #       #     #
#         #   # #   # #
#     #         # #
#   # #
# #     #   #
#   # #   #       #   #
# #   #
#   # #     # # #
# # # # # #   #       #
# # #
#   #  ## # # #   #
# # #
#   #
# #   # #   #   # #   #
#   #   #     #     # #
#           #
# #     #   #   #
#   #           #
#     #   # #
# #   #     #   #
# #         # #     #
#           # #
#     #     #   # #
```

## ERRE

```PROGRAM SPIRAL

!\$INTEGER

CONST RIGHT=1,UP=2,LEFT=3,DOWN=4

!\$DYNAMIC
DIM SPIRAL\$[0,0]

PROCEDURE PRT_ULAM(N)
FOR ROW=0 TO N DO
FOR COL=0 TO N DO
PRINT(SPIRAL\$[ROW,COL];)
END FOR
PRINT
END FOR
PRINT
GET(K\$)
FOR ROW=0 TO N DO
FOR COL=0 TO N DO
IF VAL(SPIRAL\$[ROW,COL])<>0 THEN PRINT("  * ";)  ELSE PRINT(SPIRAL\$[ROW,COL];) END IF
END FOR
PRINT
END FOR
END PROCEDURE

PROCEDURE IS_PRIME(A->RES%)
LOCAL N
IF A=2 THEN RES%=TRUE EXIT PROCEDURE END IF
IF A<=1 OR (A MOD 2=0) THEN RES%=FALSE EXIT PROCEDURE END IF
MAX=SQR(A)
FOR N=3 TO MAX STEP 2 DO
IF (A MOD N=0) THEN RES%=FALSE EXIT PROCEDURE END IF
END FOR
RES%=TRUE
END PROCEDURE

PROCEDURE GEN_ULAM(N,I)
DIR=RIGHT
J=I
Y=INT(N/2)
IF (N MOD 2=0) THEN X=Y-1 ELSE X=Y END IF ! shift left for even n's
WHILE J<=(N*N)-1+I DO

IS_PRIME(J->RES%)
IF RES% THEN SPIRAL\$[Y,X]=RIGHT\$("  "+STR\$(J),4) ELSE SPIRAL\$[Y,X]=" ---" END IF

CASE DIR OF
RIGHT->
IF (X<=(N-1) AND SPIRAL\$[Y-1,X]="" AND J>I) THEN DIR=UP END IF
END ->
UP->
IF SPIRAL\$[Y,X-1]="" THEN DIR=LEFT END IF
END ->
LEFT->
IF (X=0) OR SPIRAL\$[Y+1,X]="" THEN DIR=DOWN END IF
END ->
DOWN->
IF SPIRAL\$[Y,X+1]="" THEN DIR=RIGHT END IF
END ->
END CASE

CASE DIR OF
RIGHT-> X=X+1 END ->
UP->    Y=Y-1 END ->
LEFT->  X=X-1 END ->
DOWN->  Y=Y+1 END ->
END CASE
J=J+1
END WHILE
PRT_ULAM(N)
END PROCEDURE

BEGIN
N=9
!\$DIM SPIRAL\$[N,N]
GEN_ULAM(N,1)
END PROGRAM```
Output:
``` --- --- --- ---  61 ---  59 --- ---
---  37 --- --- --- --- ---  31 ---
67 ---  17 --- --- ---  13 --- ---
--- --- ---   5 ---   3 ---  29 ---
--- ---  19 --- ---   2  11 ---  53
---  41 ---   7 --- --- --- --- ---
71 --- --- ---  23 --- --- --- ---
---  43 --- --- ---  47 --- --- ---
73 --- --- --- --- ---  79 --- ---

--- --- --- ---  *  ---  *  --- ---
---  *  --- --- --- --- ---  *  ---
*  ---  *  --- --- ---  *  --- ---
--- --- ---  *  ---  *  ---  *  ---
--- ---  *  --- ---  *   *  ---  *
---  *  ---  *  --- --- --- --- ---
*  --- --- ---  *  --- --- --- ---
---  *  --- --- ---  *  --- --- ---
*  --- --- --- --- ---  *  --- ---
```

## Factor

Translation of: J
```USING: arrays grouping kernel math math.combinatorics
math.matrices math.primes math.ranges math.statistics
prettyprint sequences sequences.repeating ;
IN: rosetta-code.ulam-spiral

: counts ( n -- seq ) 1 [a,b] 2 repeat rest ;

: vals ( n -- seq )
[ -1 swap neg 2dup [ neg ] bi@ 4array ] [ 2 * 1 - cycle ] bi ;

: evJKT2 ( n -- seq )
[ counts ] [ vals ] bi [ <array> ] 2map concat ;

: spiral ( n -- matrix )
[ evJKT2 cum-sum inverse-permutation ] [ group ] bi ;

: ulam-spiral ( n -- matrix )
spiral dup dim first sq 1 -
[ swap - 1 + prime? "o " "  " ? ] curry matrix-map ;

: ulam-demo ( -- ) 21 ulam-spiral simple-table. ;

MAIN: ulam-demo
```
Output:
```o           o                       o                 o
o           o     o           o
o                 o                             o     o
o           o     o
o     o                 o
o     o           o                       o
o     o           o
o           o     o                 o     o     o
o     o     o     o     o           o                       o
o     o     o
o           o        o  o     o     o     o
o     o     o
o           o
o           o     o           o           o     o
o           o                 o                 o     o
o                                   o
o     o                 o           o           o
o                                   o
o                 o           o     o
o     o           o                 o
o                             o     o                 o
```

## Forth

Works with: GNU Forth version 0.7.0

All array manipulations were taken from Rosetta Code examples.

``` 43 constant border                                                         \ grid size is border x border
border border * constant size

variable crawler                                                           \ position of the crawler

: set.crawler border 2 mod 0= if                                           \ positions the crawler in the middle of the grid
size 2 / border 2/ + 1 - crawler !
else
size 2 / crawler ! then ;

set.crawler
create Grid size cells allot                                               \ creates the grid
here constant GridEnd                                                      \ used for debugging

: is.divisor
over 2over
mod 0= swap drop + ;

: sub.one
swap 1 - swap ;

: next.div
is.divisor sub.one ;

: three.test                                                                \ counts divisors for numbers bigger than 2
dup 0
begin
next.div
over 1 = until
swap drop
swap drop 1 + ;

: not.prime                                                                 \ counts the number of divisors. Primes have exactly two.
dup
2 < if drop true else
three.test then ;

: sub.four                                                                   \ the crawler takes a number from the stack as direction
dup 4 > if 4 - then ;                                                \ this word makes the number roll over.
\ 1-right 2-up 3-left 4-down
: craw.left                                                                  \ rotates the crawler 90 degrees counter-clockwise
1 + sub.four ;

: scan.right
grid crawler @ 1 + cells + @ 0= ;                                    \ checks if cell to the right of the crawler is zero

: scan.left
grid crawler @ 1 - cells + @ 0= ;                                    \ cell to the left

: scan.up
grid crawler @ border - cells + @ 0= ;                               \ cell above

: scan.down
grid crawler @ border + cells + @ 0= ;                               \ and cell below

: crawler.go                                                                 \ moves crawler one cell ahead checks cell to the left...
dup                                                                  \ ...of the direction the crawler is facing, if zero, turns
1 = if crawler @ 1 + crawler ! scan.up if craw.left then else
dup
2 = if crawler @ border - crawler ! scan.left if craw.left then else
dup
3 = if crawler @ 1 - crawler ! scan.down if craw.left then else
dup
4  = if crawler @ border + crawler ! scan.right if craw.left then else

then then then then ;

: run.crawler                                                              \ crawler moves through the grid and fills it with numbers
border 2 < if 1 grid 0 cells + ! else                              \ if the grid is a single cell, puts 1 in it
crawler @ border - crawler !	                                    \ crawler moves one step and turn before setting the first...
4                                                                  \ ...number so it is repositioned one cell up facing down
size -1 * 0 do  i
i -1 * grid crawler @ cells + ! drop
crawler.go
-1 +loop then drop ;

: leave.primes                                                                    \ removes non-primes from the grid
size 0 do i
grid i cells + @ not.prime if 0 grid i cells + ! then drop
loop ;

: star.draw1                                                                      \ draws a "*" where number is not zero
0> if 42 emit else 32 emit
then ;

: star.draw2
0> if 42 emit 32 emit else 32 emit 32 emit                                 \ same but adds a space for better presentation
then ;

: star.draw3
0> if 32 emit 42 emit 32 emit else 32 emit 32 emit 32 emit                 \ adds two spaces
then ;

: draw.grid                                                                         \ cuts the array into lines and displays it
page
size 0 do i
i border mod 0= if  cr  then
grid i cells + @ star.draw2 drop                                             \ may use star.draw1 or 3 here
loop ;

: ulam.spiral run.crawler leave.primes draw.grid ;                                  \ draws the spiral. Execute this word to run.
```
Output:
```

*           *           *           *               *                   *
*       *                           *       *               *       *
*           *       *   *       *                           *       *
*           *   *           *       *   *                                   *
*           *   *                                           *           *
*   *           *       *                       *           *
*       *   *       *
*   *                               *       *               *       *   *
*           *       *                       *   *           *
*   *       *   *           *   *           *           *                       *
*   *                       *                       *       *           *   *
*           *       *               *           *
*           *       *                   *       *   *       *   *   *
*   *   *               *           *                   *   *       *           *
*           *       *   *                               *           *
*   *           *       *       *   *
*       *       *       *   *       *               *       *   *
*   *       *
*       *               *       *   *           *   *   *           *   *   *
*       *   *   *   *   *   *   *   *       *               *                   *
*   *   *                       *
*                           *       *     * *   *   *   *       *   *   *
*               *               *   *   *
*       *
*           *       *   *       *   *       *       *   *       *       *   *       *
*           *       *       *           *           *   *       *
*                       *                       *
*   *                   *   *           *       *       *               *   *
*   *           *       *                       *               *           *
*           *           *       *   *
*   *       *           *       *           *       *
*   *   *   *                   *   *           *           *   *       *
*       *                       *   *
*       *   *           *           *       *   *                       *
*   *               *                   *               *           *
*   *       *   *                   *           *
*                       *       *           *           *                   *   *
*               *   *           *                                   *
*       *               *                       *       *           *
*           *       *
*       *   *       *           *                       *
*           *       *   *
*                       *               *                               *      ok

```

## Fortran

Works with: Fortran version 95 and later

Only works with odd sized squares

```program ulam
implicit none

integer, parameter :: nsize = 49
integer :: i, j, n, x, y
integer :: a(nsize*nsize) = (/ (i, i = 1, nsize*nsize) /)
character(1)  :: spiral(nsize, nsize) = " "
character(2)  :: sstr
character(10) :: fmt

n = 1
x = nsize / 2 + 1
y = x
if(isprime(a(n))) spiral(x, y) = "O"
n = n + 1

do i = 1, nsize-1, 2
do j = 1, i
x = x + 1
if(isprime(a(n))) spiral(x, y) = "O"
n = n + 1
end do

do j = 1, i
y = y - 1
if(isprime(a(n))) spiral(x, y) = "O"
n = n + 1
end do

do j = 1, i+1
x = x - 1
if(isprime(a(n))) spiral(x, y) = "O"
n = n + 1
end do

do j = 1, i+1
y = y + 1
if(isprime(a(n))) spiral(x, y) = "O"
n = n + 1
end do
end do

do j = 1, nsize-1
x = x + 1
if(isprime(a(n))) spiral(x, y) = "O"
n = n + 1
end do

write(sstr, "(i0)") nsize
fmt = "(" // sstr // "(a,1x))"
do i = 1, nsize
write(*, fmt) spiral(:, i)
end do

contains

function isprime(number)
logical :: isprime
integer, intent(in) :: number
integer :: i

if(number == 2) then
isprime = .true.
else if(number < 2 .or. mod(number,2) == 0) then
isprime = .false.
else
isprime = .true.
do i = 3, int(sqrt(real(number))), 2
if(mod(number,i) == 0) then
isprime = .false.
exit
end if
end do
end if
end function
end program
```

Output:

```                O       O           O           O               O       O   O
O   O                       O                   O   O       O   O
O   O                                   O           O           O
O           O           O           O               O                   O   O
O       O       O                           O       O               O       O
O           O       O   O       O                           O       O
O           O           O   O           O       O   O                                   O   O   O
O           O   O                                           O           O
O   O           O       O                       O           O
O       O   O       O                           O
O   O                               O       O               O       O   O
O           O       O                       O   O           O
O   O       O   O           O   O           O           O                       O
O       O   O                       O                       O       O           O   O
O           O           O       O               O           O                               O
O   O           O       O                   O       O   O       O   O   O
O   O   O   O               O           O                   O   O       O           O   O
O           O       O   O                               O           O
O   O           O       O       O   O       O   O
O       O       O       O   O       O               O       O   O                   O
O   O       O                                   O
O   O       O               O       O   O           O   O   O           O   O   O
O       O   O   O   O   O   O   O   O       O               O                   O   O
O   O   O                       O
O                           O       O     O O   O   O   O       O   O   O           O
O   O               O               O   O   O
O       O
O   O           O       O   O       O   O       O       O   O       O       O   O       O
O           O           O       O       O           O           O   O       O               O
O                       O                       O
O   O                   O   O           O       O       O               O   O
O   O           O       O                       O               O           O
O           O           O       O   O
O   O       O           O       O           O       O   O
O               O   O   O   O                   O   O           O           O   O       O   O
O       O                       O   O
O           O       O   O           O           O       O   O                       O           O
O           O   O               O                   O               O           O
O                               O   O       O   O                   O           O
O                       O       O           O           O                   O   O
O               O   O           O                                   O
O       O               O                       O       O           O
O                                                                   O           O       O
O       O   O       O           O                       O                           O
O                                   O           O       O   O                               O
O           O                       O               O                               O       O
O               O           O       O   O       O               O           O
O                                               O       O
O                           O           O       O   O           O       O           O```

### But if you can use complex numbers...

Notice that there each move comes in pairs, lengths 1,1, 2,2, 3,3, 4,4, ... with a quarter turn for each move. The order of the work area must be an odd number so that there is a definite middle element to start with and the worm fits between the bounds of the work area rather than striking one wall and leaving tiles unused.

```      SUBROUTINE ULAMSPIRAL(START,ORDER)	!Idle scribbles can lead to new ideas.
Careful with phasing: each lunge's first number is the second placed along its direction.
INTEGER START	!Usually 1.
INTEGER ORDER	!MUST be an odd number, so there is a middle.
INTEGER L,M,N	!Counters.
INTEGER STEP,LUNGE	!In some direction.
COMPLEX WAY,PLACE	!Just so.
CHARACTER*1 SPLOT(0:1)	!Tricks for output.
PARAMETER (SPLOT = (/" ","*"/))	!Selected according to ISPRIME(n)
INTEGER TILE(ORDER,ORDER)	!Work area.
WRITE (6,1) START,ORDER	!Here we go.
1   FORMAT ("Ulam spiral starting with ",I0,", of order ",I0,/)
IF (MOD(ORDER,2) .NE. 1) STOP "The order must be odd!"	!Otherwise, out of bounds.
M = ORDER/2 + 1		!Find the number of the middle.
PLACE = CMPLX(M,M)	!Start there.
WAY = (1,0)		!Thence in the +x direction.
N = START		!Different start, different layout.
DO L = 1,ORDER		!Advance one step, then two, then three, etc.
DO LUNGE = 1,2		!But two lunges for each length.
DO STEP = 1,L			!Take the steps.
TILE(INT(REAL(PLACE)),INT(AIMAG(PLACE))) = N	!This number for this square.
PLACE = PLACE + WAY		!Make another step.
N = N + 1				!Count another step.
END DO				!And consider making another.
IF (N .GE. ORDER**2) EXIT	!Otherwise, one lunge too many!
WAY = WAY*(0,1)		!Rotate a quarter-turn counter-clockwise.
END DO			!And make another lunge.
END DO			!Until finished.
Cast forth the numbers.
c        DO L = ORDER,1,-1	!From the top of the grid to the bottom.
c          WRITE (6,66) TILE(1:ORDER,L)	!One row at at time.
c   66     FORMAT (666I6)	!This will do for reassurance.
c        END DO			!Line by line.
Cast forth the splots.
DO L = ORDER,1,-1	!Just put out a marker.
WRITE (6,67) (SPLOT(ISPRIME(TILE(M,L))),M = 1,ORDER)	!One line at a time.
67     FORMAT (666A1)	!A single character at each position.
END DO			!On to the next row.
END SUBROUTINE ULAMSPIRAL	!So much for a boring lecture.

INTEGER FUNCTION ISPRIME(N)	!Returns 0 or 1.
INTEGER N	!The number.
INTEGER F,Q	!Factor and quotient.
ISPRIME = 0		!The more likely outcome.
IF (N.LE.1) RETURN	!Just in case the start is peculiar.
IF (N.LE.3) GO TO 2	!Oops! I forgot this!
IF (MOD(N,2).EQ.0) RETURN	!Special case.
F = 1			!Now get stuck in to testing odd numbers.
1   F = F + 2		!A trial factor.
Q = N/F			!The quotient.
IF (N .EQ. Q*F) RETURN	!No remainder? Not a prime.
IF (Q.GT.F) GO TO 1	!Thus chug up to the square root.
2   ISPRIME = 1		!Well!
END FUNCTION ISPRIME	!Simple enough.

PROGRAM TWIRL
CALL ULAMSPIRAL(1,49)
END
```

One could escalate to declaring function IsPrime to be PURE so that it may be used in array expressions, such as CANVAS = SPLOT(ISPRIME(TILE)) where CANVAS is an array of single characters, but that would require another large array. Trying instead to do the conversion only a line at a time in the WRITE statement as SPLOT(ISPRIME(TILE(1:ORDER,L))) failed, only one symbol per line appeared. So instead, an older-style implicit DO-loop, and the results are...

```        *   *     *     *       *   * *
* *           *         * *   * *
* *                 *     *     *
*     *     *     *       *         * *
*   *   *             *   *       *   *
*     *   * *   *             *   *
*     *     * *     *   * *                 * * *
*     * *                     *     *
* *     *   *           *     *
*   * *   *             *
* *               *   *       *   * *
*     *   *           * *     *
* *   * *     * *     *     *           *
*   * *           *           *   *     * *
*     *     *   *       *     *               *
* *     *   *         *   * *   * * *
* * * *       *     *         * *   *     * *
*     *   * *               *     *
* *     *   *   * *   * *
*   *   *   * *   *       *   * *         *
* *   *                 *
* *   *       *   * *     * * *     * * *
*   * * * * * * * *   *       *         * *
* * *           *
*             *   *  ** * * *   * * *     *
* *       *       * * *
*   *
* *     *   * *   * *   *   * *   *   * *   *
*     *     *   *   *     *     * *   *       *
*           *           *
* *         * *     *   *   *       * *
* *     *   *           *       *     *
*     *     *   * *
* *   *     *   *     *   * *
*       * * * *         * *     *     * *   * *
*   *           * *
*     *   * *     *     *   * *           *     *
*     * *       *         *       *     *
*               * *   * *         *     *
*           *   *     *     *         * *
*       * *     *                 *
*   *       *           *   *     *
*                                 *     *   *
*   * *   *     *           *             *
*                 *     *   * *               *
*     *           *       *               *   *
*       *     *   * *   *       *     *
*                       *   *
*             *     *   * *     *   *     *
```

Bounding the display with framework symbols might help readability, but is not in the specification.

## FreeBASIC

This is actually better handled graphically.

```#define SIZE 639

screenres SIZE, SIZE, 4

function is_prime( n as ulongint ) as boolean
if n < 2 then return false
if n = 2 then return true
if n mod 2 = 0 then return false
for i as uinteger = 3 to int(sqr(n))+1 step 2
if n mod i = 0 then return false
next i
return true
end function

function is_turn( byval n as unsigned integer ) as boolean
n -= 1
if int(sqr(n))^2 = n then return true
n = n -  int(sqr(n))
if int(sqr(n))^2 = n then return true
return false
end function

dim as integer n = 1, x=SIZE/2, y=SIZE/2, dx = 1, dy = 0

do
if is_prime(n) then pset (x, y), 15
x = x + dx
y = y + dy
if x >= SIZE orelse y >= SIZE orelse x < 0 orelse y < 0 then exit do
n = n + 1
if is_turn(n) then
dx = -dx
swap dx, dy
end if
loop

sleep
end```

## Fōrmulæ

Fōrmulæ programs are not textual, visualization/edition of programs is done showing/manipulating structures but not text. Moreover, there can be multiple visual representations of the same program. Even though it is possible to have textual representation —i.e. XML, JSON— they are intended for storage and transfer purposes more than visualization and edition.

Programs in Fōrmulæ are created/edited online in its website.

In this page you can see and run the program(s) related to this task and their results. You can also change either the programs or the parameters they are called with, for experimentation, but remember that these programs were created with the main purpose of showing a clear solution of the task, and they generally lack any kind of validation.

Solution

Test case

## Go

Translation of: Kotlin
```package main

import (
"math"
"fmt"
)

type Direction byte

const (
RIGHT Direction = iota
UP
LEFT
DOWN
)

func generate(n,i int, c byte) {
s := make([][]string, n)
for i := 0; i < n; i++ { s[i] = make([]string, n) }
dir := RIGHT
y := n / 2
var x int
if (n % 2 == 0) { x = y - 1 } else { x = y } // shift left for even n's

for j := i; j <= n * n - 1 + i; j++ {
if (isPrime(j)) {
if (c == 0) { s[y][x] = fmt.Sprintf("%3d", j) } else { s[y][x] = fmt.Sprintf("%2c ", c) }
} else { s[y][x] = "---" }

switch dir {
case RIGHT : if (x <= n - 1 && s[y - 1][x] == "" && j > i) { dir = UP }
case UP : if (s[y][x - 1] == "") { dir = LEFT }
case LEFT : if (x == 0 || s[y + 1][x] == "") { dir = DOWN }
case DOWN : if (s[y][x + 1] == "") { dir = RIGHT }
}

switch dir {
case RIGHT : x += 1
case UP : y -= 1
case LEFT : x -= 1
case DOWN : y += 1
}
}

for _, row := range s { fmt.Println(fmt.Sprintf("%v", row)) }
fmt.Println()
}

func isPrime(a int) bool {
if (a == 2) { return true }
if (a <= 1 || a % 2 == 0) { return false }
max := int(math.Sqrt(float64(a)))
for n := 3; n <= max; n += 2 { if (a % n == 0) { return false } }
return true
}

func main() {
generate(9, 1, 0) // with digits
generate(9, 1, '*') // with *
}
```

Haskell encourages splitting the task into indepentend parts each having very clear functionality:

1. preparation of data: a list of numbers is mapped into the list of symbols according to primality, or any other criterion.

2. spooling the list of arbitrary data into the spiral, forming a table.

3. displaying arbitrary table at a console or graphically.

As a program the given task then formulates as following:

```import Data.List
import Data.Numbers.Primes

ulam n representation = swirl n . map representation
```

Here we refference the function `swirl n`, which for a given (possibly infinite) list returns `n` whorls of a spiral.

The spiral is formed in a way we would fold a paper band: first we chop the band into pieces of increasing length, then we take necessary amount of pieces, finally we fold all pieces into the spiral, starting with the empty table by rotating it and adding pieces of data one by one:

```swirl n = spool . take (2*(n-1)+1) . chop 1

chop n lst = let (x,(y,z)) = splitAt n <\$> splitAt n lst
in x:y:chop (n+1) z

spool = foldl (\table piece -> piece : rotate table) [[]]
where rotate = reverse . transpose
```

That's it!

### Textual output

Pretty printing the table of strings with given column width is simple:

```showTable w = foldMap (putStrLn . foldMap pad)
where pad s = take w \$ s ++ repeat ' '
```
Output:
```λ> showTable 3 \$ ulam 10 show [1..]
91 92 93 94 95 96 97 98 99 100
90 57 58 59 60 61 62 63 64 65
89 56 31 32 33 34 35 36 37 66
88 55 30 13 14 15 16 17 38 67
87 54 29 12 3  4  5  18 39 68
86 53 28 11 2  1  6  19 40 69
85 52 27 10 9  8  7  20 41 70
84 51 26 25 24 23 22 21 42 71
83 50 49 48 47 46 45 44 43 72
82 81 80 79 78 77 76 75 74 73

λ> showTable 3 \$ ulam 10 (\x -> if isPrime x then show x else " . ") [1..]
.  .  .  .  .  . 97  .  .  .
.  .  . 59  . 61  .  .  .  .
89  . 31  .  .  .  .  . 37  .
.  .  . 13  .  .  . 17  . 67
.  . 29  . 3   . 5   .  .  .
. 53  . 11 2   .  . 19  .  .
.  .  .  .  .  . 7   . 41  .
.  .  .  .  . 23  .  .  . 71
83  .  .  . 47  .  .  . 43  .
.  .  . 79  .  .  .  .  . 73

λ> showTable 2 \$ ulam 20 (\x -> if isPrime x then "*" else "") [1..]
*           *               *
*       *   *       *
*   *                   *           *
*   *       *
*           *   *
*               *       *   *
*       *   *
*   *   *           *   *       *
*               *       *   *   *   *
*   *   *
*   *   *   * *     *       *
*   *   *
*       *
*   *       *       *   *       *
*   *           *           *       *
*                       *
*       *       *           *   *
*                       *
*   *       *
*           *       *   *         ```

The high modularity of the program allows us easily to start from any number and to proceed with any step size:

```λ> showTable 2 \$ ulam 20 (\x -> if isPrime x then "*" else "") [3,5..]
*   *             *         *
*   * *           *         * *   *
*     *   *       *   *     *       *
*     *     *     *   *     *
*     * *     *   * *         *
*               * *   * *     *   * *
*       * *             *   *     * * *
*   * *     *   * *
*           *   * *
*     *   * *   *   * * * * *
*   * *   * *   * * * *     *     *
* *   * *
* * * * *   * *     *   *       *     *
* *   * *   *       *
*     *     * *     *     *
* * *       * *     *   * *   * * * *
*     *             *   *
*     *   *     * *           *
*     *     * *     *     *         *
*         *       *         *     ```

Or we can form a spiral out of arbitrary data:   (but that doesn't show the primes as this task requires):

```λ> showTable 1 \$ ulam 10 (:[]) "Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse consequat lectus at massa tristique, ut vulputate arcu pretium."
assa trist
m Suspendi
.nsectets
ttodolorus
aic rem re
l moL s
se,uspiiac
u tema tdo
tgnicsipin
cel tauqes```

### Graphical output

Simple graphical output could be done using `Diagrams` framework:

```import Diagrams.Prelude
import Diagrams.Backend.SVG.CmdLine

drawTable tbl = foldl1 (===) \$ map (foldl1 (|||)) tbl :: Diagram B

dots x = (circle 1 # if isPrime x then fc black else fc white) :: Diagram B

main = mainWith \$ drawTable \$ ulam 100 dots [1..]
```

## J

```spiral =: ,~ \$ [: /: }.@(2 # >:@i.@-) +/\@# <:@+: \$ (, -)@(1&,)
```

We can get a spiral starting with 1 in the center of the square by subtracting these values from the square of our size argument:

```   spiral 5
0  1  2  3 4
15 16 17 18 5
14 23 24 19 6
13 22 21 20 7
12 11 10  9 8
(*: - spiral) 5
25 24 23 22 21
10  9  8  7 20
11  2  1  6 19
12  3  4  5 18
13 14 15 16 17
```

Next, we want to determine which of these numbers are prime:

```   (1 p: *: - spiral) 5
0 0 1 0 0
0 0 0 1 0
1 1 0 0 1
0 1 0 1 0
1 0 0 0 1
```

And, finally, we want to use these values to select from a pair of characters:

```   (' o' {~ 1 p: *: - spiral) 5
o
o
oo  o
o o
o   o
```

If we want our spiral to start with some value other than 1, we'd add that value - 1 to our numbers right before the prime check. For this, we want a function which returns 0 when there's no left argument and one less than the left argument when it that value present. We can use : for this -- it takes two verbs, the left of which is used when no left argument is present and the right one is used when a left argument is present. (And note that in J, : is a token forming character, so we will need to leave a space to the left of : so that it does not form a different token):

```   (0: :(<:@[)) ''
0
3 (0: :(<:@[)) ''
2
```

We also want to specify that our initial computations only respect the right argument, and we should maybe add a space after every character to get more of a square aspect ratio in typical text displays:

```ulam=: 1j1 #"1 ' o' {~ 1 p: 0: :(<:@[) + *:@] - spiral@]
```

And here it is in action:

```   ulam 16
o                   o
o       o   o
o   o           o
o   o       o               o
o   o       o
o   o           o   o   o
o   o   o       o
o   o   o
o       o     o o   o   o   o
o   o   o
o       o
o   o       o       o   o
o           o           o
o
o           o       o       o
o                       o
9 ulam 12
o   o
o   o       o   o
o   o       o       o
o   o       o
o           o
o   o   o   o   o
o   o
o
o   o   o       o
o
o           o   o
```

To transform these spirals to the orientation which has recently been added as a part of the task, you could flip them horizontally (|."1) and vertically (|.)

It should also be possible to redefine the original spiral treatment in some other ways.

## Java

Works with: Java version 1.5+
```import java.util.Arrays;

public class Ulam{
enum Direction{
RIGHT, UP, LEFT, DOWN;
}

private static String[][] genUlam(int n){
return genUlam(n, 1);
}

private static String[][] genUlam(int n, int i){
String[][] spiral = new String[n][n];
Direction dir = Direction.RIGHT;
int j = i;
int y = n / 2;
int x = (n % 2 == 0) ? y - 1 : y; //shift left for even n's
while(j <= ((n * n) - 1 + i)){
spiral[y][x] = isPrime(j) ? String.format("%4d", j) : " ---";

switch(dir){
case RIGHT:
if(x <= (n - 1) && spiral[y - 1][x] == null && j > i) dir = Direction.UP; break;
case UP:
if(spiral[y][x - 1] == null) dir = Direction.LEFT; break;
case LEFT:
if(x == 0 || spiral[y + 1][x] == null) dir = Direction.DOWN; break;
case DOWN:
if(spiral[y][x + 1] == null) dir = Direction.RIGHT; break;
}

switch(dir){
case RIGHT:	x++; break;
case UP: 	y--; break;
case LEFT:	x--; break;
case DOWN:	y++; break;
}
j++;
}
return spiral;
}

public static boolean isPrime(int a){
if(a == 2) return true;
if(a <= 1 || a % 2 == 0) return false;
long max = (long)Math.sqrt(a);
for(long n = 3; n <= max; n += 2){
if(a % n == 0) return false;
}
return true;
}

public static void main(String[] args){
String[][] ulam = genUlam(9);
for(String[] row : ulam){
System.out.println(Arrays.toString(row).replaceAll(",", ""));
}
System.out.println();

for(String[] row : ulam){
System.out.println(Arrays.toString(row).replaceAll("\\[\\s+\\d+", "[  * ").replaceAll("\\s+\\d+", "   * ").replaceAll(",", ""));
}
}
}```
Output:
```[ ---  ---  ---  ---   61  ---   59  ---  ---]
[ ---   37  ---  ---  ---  ---  ---   31  ---]
[  67  ---   17  ---  ---  ---   13  ---  ---]
[ ---  ---  ---    5  ---    3  ---   29  ---]
[ ---  ---   19  ---  ---    2   11  ---   53]
[ ---   41  ---    7  ---  ---  ---  ---  ---]
[  71  ---  ---  ---   23  ---  ---  ---  ---]
[ ---   43  ---  ---  ---   47  ---  ---  ---]
[  73  ---  ---  ---  ---  ---   79  ---  ---]

[ ---  ---  ---  ---   *   ---   *   ---  ---]
[ ---   *   ---  ---  ---  ---  ---   *   ---]
[  *   ---   *   ---  ---  ---   *   ---  ---]
[ ---  ---  ---   *   ---   *   ---   *   ---]
[ ---  ---   *   ---  ---   *    *   ---   * ]
[ ---   *   ---   *   ---  ---  ---  ---  ---]
[  *   ---  ---  ---   *   ---  ---  ---  ---]
[ ---   *   ---  ---  ---   *   ---  ---  ---]
[  *   ---  ---  ---  ---  ---   *   ---  ---]```

### Large scale Ulam Spiral

Works with: Java version 8
```import java.awt.*;
import javax.swing.*;

public class LargeUlamSpiral extends JPanel {

public LargeUlamSpiral() {
setPreferredSize(new Dimension(605, 605));
setBackground(Color.white);
}

private boolean isPrime(int n) {
if (n <= 2 || n % 2 == 0)
return n == 2;
for (int i = 3; i * i <= n; i += 2)
if (n % i == 0)
return false;
return true;
}

@Override
public void paintComponent(Graphics gg) {
super.paintComponent(gg);
Graphics2D g = (Graphics2D) gg;
g.setRenderingHint(RenderingHints.KEY_ANTIALIASING,
RenderingHints.VALUE_ANTIALIAS_ON);

g.setColor(getForeground());

double angle = 0.0;
int x = 300, y = 300, dx = 1, dy = 0;

for (int i = 1, step = 1, turn = 1; i < 40_000; i++) {

if (isPrime(i))
g.fillRect(x, y, 2, 2);

x += dx * 3;
y += dy * 3;

if (i == turn) {

angle += 90.0;

if ((dx == 0 && dy == -1) || (dx == 0 && dy == 1))
step++;

turn += step;

}
}
}

public static void main(String[] args) {
SwingUtilities.invokeLater(() -> {
JFrame f = new JFrame();
f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
f.setTitle("Large Ulam Spiral");
f.setResizable(false);
f.pack();
f.setLocationRelativeTo(null);
f.setVisible(true);
});
}
}
```

### Small scale Ulam Spiral

Works with: Java version 8
```import java.awt.*;
import javax.swing.*;

public class UlamSpiral extends JPanel {

Font primeFont = new Font("Arial", Font.BOLD, 20);
Font compositeFont = new Font("Arial", Font.PLAIN, 16);

public UlamSpiral() {
setPreferredSize(new Dimension(640, 640));
setBackground(Color.white);
}

private boolean isPrime(int n) {
if (n <= 2 || n % 2 == 0)
return n == 2;
for (int i = 3; i * i <= n; i += 2)
if (n % i == 0)
return false;
return true;
}

@Override
public void paintComponent(Graphics gg) {
super.paintComponent(gg);
Graphics2D g = (Graphics2D) gg;
g.setRenderingHint(RenderingHints.KEY_ANTIALIASING,
RenderingHints.VALUE_ANTIALIAS_ON);

g.setStroke(new BasicStroke(2));

double angle = 0.0;
int x = 280, y = 330, dx = 1, dy = 0;

g.setColor(getForeground());
g.drawLine(x, y - 5, x + 50, y - 5);

for (int i = 1, step = 1, turn = 1; i < 100; i++) {

g.setColor(getBackground());
g.fillRect(x - 5, y - 20, 30, 30);
g.setColor(getForeground());
g.setFont(isPrime(i) ? primeFont : compositeFont);
g.drawString(String.valueOf(i), x + (i < 10 ? 4 : 0), y);

x += dx * 50;
y += dy * 50;

if (i == turn) {
angle += 90.0;

if ((dx == 0 && dy == -1) || (dx == 0 && dy == 1))
step++;

turn += step;

g.translate(9, -5);
g.drawLine(x, y, x + dx * step * 50, y + dy * step * 50);
g.translate(-9, 5);
}
}
}

public static void main(String[] args) {
SwingUtilities.invokeLater(() -> {
JFrame f = new JFrame();
f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
f.setTitle("Ulam Spiral");
f.setResizable(false);
f.pack();
f.setLocationRelativeTo(null);
f.setVisible(true);
});
}
}
```

## JavaScript

You can find plotting helper functions here on RosettaCode Wiki: VOE.js v.2.0.
Note:

• Find "printed" spirals in console (Chrome).
Translation of: PARI/GP
Works with: Chrome

(or any other browser supporting Canvas tag)

```<!-- UlamSpiral.html -->
<html>
<script src="VOE.js"></script>
<script>
// http://rosettacode.org/wiki/User:AnatolV/Helper_Functions
// Use v.2.0
var pst;

return ("     " + n).slice(-ns);
}

// Is number n a prime?
function isPrime(n) {
var n2=Math.sqrt(n);
for(var i=2; i<=n2; i++) {
if(n%i === 0) return false;
}//fend i
return n !== 1;
}

function insm(mat,x,y) {
var xz=mat[0].length, yz=xz;
return(x>=0 && x<xz && y>=0 && y<yz)
}
// *****

function rbCheck() {
if (document.getElementById('rbDef').checked) {pst=0}
if (document.getElementById('rbAst').checked) {pst=1}
if (document.getElementById('rbNum').checked) {pst=2}
}
function rbSet() {
document.getElementById("rbDef").checked = true;
rbCheck();
}

// The Ulam Spiral
function pspUlam() {
var i, j, x, y, xmx, ymx, cnt, dir, M, Mij, sp=" ", sc=3;
// Setting basic vars for canvas and matrix
var cvs = document.getElementById('cvsId');
var ctx = cvs.getContext("2d");
if(pst<0||pst>2) {pst=0}
if(pst==0) {n=100; sc=3} else {n=10; sc=5}
console.log("sc", typeof(sc));
if(n%2==0) {n++};
var n2=n*n, pch, sz=n2.toString().length, pch2=sp.repeat(sz);
var fgc="navy", bgc="white";
// Create matrix, finding number of rows and columns
var M=new Array(n);
for (i=0; i<n; i++) { M[i]=new Array(n);
for (j=0; j<n; j++) {M[i][j]=0} }
var r = M[0].length, c = M.length, k=0, dsz=1;
// Logging init parameters
var ttl="Matrix ("+r+","+c+")";
console.log(" *** Ulam spiral: ",n,"x",n,"p-flag=",pst, "sc", sc);
// Generating and plotting Ulam spiral
x=y=Math.floor(n/2)+1; xmx=ymx=cnt=1; dir="R";
for(var i=1; i<=n2; i++) {  //
if(isPrime(i))  // if prime
{ if(!insm(M,x,y)) {break};
if(pst==2) {M[y][x]=i} else {M[y][x]=1};
}
// all numbers
if(dir=="R") {if(xmx>0){x++;xmx--} else {dir="U";ymx=cnt;y--;ymx--} continue};
if(dir=="U") {if(ymx>0){y--;ymx--} else {dir="L";cnt++;xmx=cnt;x--;xmx--} continue};
if(dir=="L") {if(xmx>0){x--;xmx--} else {dir="D";ymx=cnt;y++;ymx--} continue};
if(dir=="D") {if(ymx>0){y++;ymx--} else {dir="R";cnt++;xmx=cnt;x++;xmx--}; continue};
}//fend i
//Plot/Print according to the p-flag(0-real plot,1-"*",2-primes)
if(pst==0) {pmat01(M, fgc, bgc, sc, 0); return};
var logs;
if(pst==1) {for(i=1;i<n;i++) {logs="|";
for(j=1;j<n;j++) { Mij=M[i][j]; if(Mij>0) {pch="*"} else {pch=" "};
logs+=" "+pch;}
logs+="|"; console.log(logs);}//fiend
pmat01(M, fgc, bgc, sc, 0); console.log("sc", sc);
return;
}//ifend
//console.log(" ",pch);} console.log(" ")}; return};
if(pst==2) {for(i=1;i<n;i++) {logs="|";
for(j=1;j<n;j++) {Mij=M[i][j];
if(Mij==0) {pch=pch2}
logs+=pch; }  //" "+
logs+=" |"; console.log(logs);}//fiend
pmat01(M, fgc, bgc, sc, 0); console.log("sc", sc);
return;
}//ifend

}//func end
// ******************************************
<body onload='rbSet();' style="font-family: arial, helvatica, sans-serif;">
<b>Plot/print style:</b>
<input type="radio" onclick="rbCheck();" name="rb" id="rbAst"/><b>Print *</b>&nbsp;
<input type="radio" onclick="rbCheck();" name="rb" id="rbNum"/><b>Print numbers</b>&nbsp;
<input type="button" value="Plot it!" onclick="pspUlam();">
<h3>Ulam Spiral</h3>
<canvas id="cvsId" width="300" height="300" style="border: 2px inset;"></canvas>
</body>
</html>
```
Output:
```Print using "*"
===============
Plot, plus this:
*** Ulam spiral: 11 x 11 p-flag= 1 sc 5
|                    |
|           *   *    |
|     *           *  |
|   *   *       *    |
|         *   *   *  |
|       *     * *   *|
|     *   *          |
|   *       *        |
|     *       *      |
|   *           *    |

matrix 'signature': Matrix(11x11) 22 dots

Print prime numbers
===================
Plot, plus this:
*** Ulam spiral: 11 x 11 p-flag= 2 sc 5
|                               |
|                61    59       |
|       37                31    |
|    67    17          13       |
|              5     3    29    |
|          19        2 11    53 |
|       41     7                |
|    71          23             |
|       43          47          |
|    73                79       |

plot:
=====
Plot, plus this:
*** Ulam spiral: 101 x 101 p-flag= 0 sc 3
matrix 'signature': Matrix(101x101) 1208 dots
```

## jq

Translation of: Wren
Works with: jq

Works with gojq, the Go implementation of jq

See Erdős-primes#jq for a suitable definition of `is_prime` as used here.

```def array(\$init): [range(0; .) | \$init];

# Test if input is a one-character string holding a digit
def isDigit:
type=="string" and length==1 and explode[0] as \$c | (48 <= \$c and \$c <= 57);

def lpad(\$len): tostring | (\$len - length) as \$l | (" " * \$l)[:\$l] + .;

def generate(\$n; \$i; \$c):
if \$n <= 1 then "'n' must be more than 1." | error
else {   s: (\$n|array(array(""))),
dir: "right",
y: ((\$n/2)|floor) }
| .x = if (\$n % 2 == 0) then .y - 1 else .y end  # shift left for even n
| reduce range(\$i; \$n * \$n + \$i) as \$j (.;
.s[.y][.x] = (
if \$j | is_prime
then (if \$c|isDigit then \$j|lpad(4) else "  \(\$c) " end)
else " ---"
end)
| if .dir == "right"
then if (.x <= \$n - 1 and .s[.y - 1][.x] == "" and \$j > i) then .dir = "up" else . end
elif .dir == "up"
then if (.s[.y][.x - 1] == "") then .dir = "left" else . end
elif .dir == "left"
then if (.x == 0 or .s[.y + 1][.x] == "") then .dir = "down" else . end
elif .dir == "down"
then if (.s[.y][.x + 1] == "") then .dir = "right" else . end
else .
end
| if   .dir == "right" then .x += 1
elif .dir == "up"    then .y += -1
elif .dir == "left"  then .x += -1
elif .dir == "down"  then .y += 1
else .
end )
| .s[] | join(" ")
end ;

# with digits
generate(9; 1; "0"), "",

# with *
generate(9; 1; "*")```
Output:

As for Wren.

## Julia

Works with: Julia version 0.6
```using Primes

function ulamspiral(ord::Int)
# Possible directions
dirs = [[0, 1], [-1, 0], [0, -1], [1, 0]]
# fdir = ["→", "↑", "←", "↓"] # for debug pourpose
cur = maxsteps = 1  # starting direction & starting max steps
steps = n = 0       # starting steps     & starting number in cell
pos = [ord ÷ 2 + 1, isodd(ord) ? ord ÷ 2 + 1 : ord ÷ 2] # starting position
M = Matrix{Bool}(ord, ord) # result matrix
while n < ord ^ 2  # main loop (stop when the matrix is filled)
n += 1
M[pos[1], pos[2]] = isprime(n)
steps += 1
# Debug print
# @printf("M[%i, %i] = %5s (%2i), step %i/%i, nxt %s\n", pos[1], pos[2], isprime(n), n, steps, maxsteps, fdir[cur])
pos  .+= dirs[cur] # increment position
if steps == maxsteps # if reached max number of steps in that direction...
steps = 0        # ...reset steps
if iseven(cur) maxsteps += 1 end # if the current direction is even increase the number of steps
cur  += 1        # change direction
if cur > 4 cur -= 4 end # correct overflow
end
end
return M
end

mprint(m::Matrix) = for i in 1:size(m, 1) println(join(el ? " ∙ " : "   " for el in m[i, :]), '\n') end

M = ulamspiral(9)
mprint(M)
```
Output:
```             ∙     ∙

∙                 ∙

∙     ∙           ∙

∙     ∙     ∙

∙        ∙  ∙     ∙

∙     ∙

∙           ∙

∙           ∙

∙                 ∙       ```

## Kotlin

Translation of: Java
```object Ulam {
fun generate(n: Int, i: Int = 1, c: Char = '*') {
require(n > 1)
val s = Array(n) { Array(n, { "" }) }
var dir = Direction.RIGHT
var y = n / 2
var x = if (n % 2 == 0) y - 1 else y // shift left for even n's
for (j in i..n * n - 1 + i) {
s[y][x] = if (isPrime(j)) if (c.isDigit()) "%4d".format(j) else "  \$c " else " ---"

when (dir) {
Direction.RIGHT -> if (x <= n - 1 && s[y - 1][x].none() && j > i) dir = Direction.UP
Direction.UP -> if (s[y][x - 1].none()) dir = Direction.LEFT
Direction.LEFT -> if (x == 0 || s[y + 1][x].none()) dir = Direction.DOWN
Direction.DOWN -> if (s[y][x + 1].none()) dir = Direction.RIGHT
}

when (dir) {
Direction.RIGHT -> x++
Direction.UP -> y--
Direction.LEFT -> x--
Direction.DOWN -> y++
}
}
for (row in s) println("[" + row.joinToString("") + ']')
println()
}

private enum class Direction { RIGHT, UP, LEFT, DOWN }

private fun isPrime(a: Int): Boolean {
when {
a == 2 -> return true
a <= 1 || a % 2 == 0 -> return false
else -> {
val max = Math.sqrt(a.toDouble()).toInt()
for (n in 3..max step 2)
if (a % n == 0) return false
return true
}
}
}
}

fun main(args: Array<String>) {
Ulam.generate(9, c = '0')
Ulam.generate(9)
}
```

## Lua

```local function ulamspiral(n, f)
print("n = " .. n)
local function isprime(p)
if p < 2 then return false end
if p % 2 == 0 then return p==2 end
if p % 3 == 0 then return p==3 end
local limit = math.sqrt(p)
for f = 5, limit, 6 do
if p % f == 0 or p % (f+2) == 0 then return false end
end
return true
end
local function spiral(x, y)
if n%2==1 then x, y = n-1-x, n-1-y end
local m = math.min(x, y, n-1-x, n-1-y)
return x<y and (n-2*m-2)^2+(x-m)+(y-m) or (n-2*m)^2-(x-m)-(y-m)
end
for y = 0, n-1 do
for x = 0, n-1 do
io.write(f(isprime(spiral(x,y))))
end
print()
end
print()
end

-- filling a 132 column terminal (with a 2-wide glyph to better preserve aspect ratio)
ulamspiral(132/2, function(b) return b and "██" or "  " end)
```
Output:
```n = 66.0
██                  ██  ██                  ██                                                          ██
██  ██                      ██          ██                              ██          ██  ██
██                  ██  ██                                  ██          ██      ██                      ██
██                  ██                  ██  ██                  ██                      ██  ██                  ██          ██
██          ██  ██                      ██      ██                      ██  ██          ██      ██          ██          ██
██                              ██  ██                  ██                                      ██          ██      ██
██              ██          ██          ██                  ██              ██                                      ██
██          ██      ██  ██      ██          ██          ██              ██      ██  ██          ██      ██
██                                                          ██      ██          ██              ██                  ██          ██
██      ██                  ██      ██          ██          ██              ██      ██  ██
██  ██      ██          ██  ██                      ██                  ██  ██      ██  ██                              ██
██  ██                                  ██          ██          ██                              ██
██                          ██          ██          ██          ██              ██                  ██  ██  ██  ██  ██
██  ██      ██      ██                          ██      ██              ██      ██                      ██          ██
██          ██      ██  ██      ██                          ██      ██
██  ██      ██  ██          ██          ██  ██          ██      ██  ██                                  ██  ██  ██          ██  ██
██              ██          ██  ██                                          ██          ██                          ██
██  ██          ██      ██                      ██          ██                      ██
██      ██  ██      ██                          ██  ██  ██      ██  ██
██                  ██  ██                              ██      ██              ██      ██  ██                      ██
██                      ██          ██      ██                      ██  ██          ██                                          ██
██          ██  ██      ██  ██          ██  ██          ██          ██                      ██                      ██
██      ██  ██                      ██                      ██      ██          ██  ██          ██
██          ██          ██      ██              ██          ██                              ██
██  ██          ██      ██                  ██      ██  ██      ██  ██  ██                                  ██
██              ██  ██  ██  ██              ██          ██                  ██  ██      ██          ██  ██          ██
██          ██      ██  ██                              ██          ██          ██
██  ██          ██      ██      ██  ██      ██  ██  ██      ██  ██
██  ██  ██          ██      ██      ██      ██  ██      ██              ██      ██  ██                  ██
██  ██      ██                                  ██
██          ██  ██      ██              ██      ██  ██          ██  ██  ██          ██  ██  ██                              ██
██      ██  ██          ██      ██  ██  ██  ██  ██  ██  ██  ██      ██              ██                  ██  ██                  ██
██  ██  ██                      ██                      ██          ██
██  ██      ██          ██                          ██      ██    ████  ██  ██  ██      ██  ██  ██          ██              ██  ██
██              ██  ██              ██              ██  ██  ██
██                                              ██      ██
██  ██          ██      ██  ██      ██  ██      ██      ██  ██      ██      ██  ██      ██      ██  ██
██      ██      ██          ██          ██      ██      ██          ██          ██  ██      ██              ██          ██
██          ██                                          ██                      ██                      ██                      ██
██                  ██  ██                  ██  ██          ██      ██      ██              ██  ██              ██
██  ██          ██      ██                      ██              ██          ██                  ██
██          ██          ██      ██  ██
██                                          ██  ██      ██          ██      ██          ██      ██  ██  ██
██          ██  ██              ██  ██  ██  ██                  ██  ██          ██          ██  ██      ██  ██      ██
██      ██                      ██  ██
██          ██          ██      ██  ██          ██          ██      ██  ██                      ██          ██      ██  ██  ██
██  ██  ██  ██  ██          ██  ██              ██                  ██              ██          ██                          ██
██                              ██  ██      ██  ██                  ██          ██
██                      ██      ██          ██          ██                  ██  ██          ██              ██
██              ██              ██  ██          ██                                  ██                          ██
██          ██      ██              ██                      ██      ██          ██                      ██          ██
██  ██                                                                  ██          ██      ██          ██
██  ██              ██      ██  ██      ██          ██                      ██                          ██          ██  ██
██                                  ██          ██      ██  ██                              ██          ██
██          ██                      ██              ██                              ██      ██          ██
██  ██  ██              ██          ██      ██  ██      ██              ██          ██
██                                  ██                                              ██      ██
██                      ██                          ██          ██      ██  ██          ██      ██          ██
██  ██          ██                                          ██                      ██  ██                      ██  ██
██                      ██                  ██                      ██  ██          ██      ██  ██
██                                                      ██  ██                  ██              ██      ██      ██      ██
██  ██                      ██          ██              ██      ██              ██
██                              ██              ██      ██  ██      ██  ██                              ██
██                      ██  ██      ██                          ██          ██      ██              ██                  ██
██      ██          ██  ██      ██          ██  ██                      ██      ██                                      ██
██                                              ██                  ██          ██  ██
```

## M2000 Interpreter

Translation of: VBScript
```Module Ulam_Spiral {
build_spiral(9)
Sub build_spiral(n)
if n mod 2=0 then n++
Local matrix(n,n) as string
Local x = (n-1)/2, y = (n-1)/2
Local x_max = 1, y_max = 1, count = 1
Local dir = "R", i, l=Len(n*n+"")

For i = 1 To n*n
If @IsPrime(i) Then
matrix(x,y) = Right\$("000"+i,l)
Else
matrix(x,y) = String\$("-", l)  // this is different from VbScript
End If
Select Case dir
Case "R"
{
If x_max > 0 Then
x++:x_max--
Else
dir = "U" : y_max = count
y--:y_max--
End If
}
Case "U"
{
If y_max > 0 Then
y-- :y_max--
Else
dir = "L" : count++: x_max = count
x--:x_max--
End If
}
Case "L"
{
If x_max > 0 Then
x--:x_max--
Else
dir = "D" : y_max = count
y++:y_max--
End If
}
Case "D"
{
If y_max > 0 Then
y++:y_max--
Else
dir = "R" : count++: x_max = count
x++:x_max--
End If
}
End Select
Next
For y = 0 To n - 1
For x = 0 To n - 1
If x = n - 1 Then
Print matrix(x,y)
Else
print matrix(x,y)+" ";
End If
Next
print
Next
End Sub
Function IsPrime(n)
If n = 2 Then
= True
Else.If n <= 1 Or n Mod 2 = 0 Then
= False
Else
= True
if 3>Int(Sqrt(n)) then exit function
// for/next in M2000 always executed (from step used the absolute value)
local i
For i = 3 To Int(Sqrt(n)) Step 2
If n Mod i = 0 Then
= False
Exit For
End If
Next
End If
End Function
}
Ulam_Spiral```
Output:

same as VBScript

## Mathematica / Wolfram Language

```ClearAll[iCCWSpiralEast]
iCCWSpiralEast[n_Integer]:=Table[(1/2 (-1)^# ({1,-1} (Abs[#^2-t]-#)+#^2-t-Mod[#,2])&)[Round[Sqrt[t]]],{t,0,n-1}]
n=20
start=1;
pts=iCCWSpiralEast[n^2];
pts=Pick[pts,PrimeQ[start+Range[n^2]-1],True];
grid=Table[({i,j}/.(Alternatives@@pts)->"#")/.{_,_}->" ",{j,Round[n/2],-Round[n/2],-1},{i,-Round[n/2],Round[n/2],1}];
Grid[grid]
```
Output:
```    *       *     *
*   * *   *
*     *         * *
*   * *
* *     *
* *   *       *
* *   *
*   * *     * * *
* * * *   *       *
* * *
*   *  ** * * *
* * *
*   *
*   * *   *   * *
*   *     *     * *
*           *
* *     *   *   *
*           *
*   * *
* *   *     *   ```

## Maxima

Using the function defined in the Spiral matrix task

```/* Adapting the spiral to the problem requirements */
spiral_from_center(n):=(n^2+1)*matrixmap(lambda([x],x+1),zeromatrix(n,n))-spiral(n)\$

/* Testing */
spiral_from_center(35)\$
matrixmap(lambda([x],if primep(x) then "O" else ""),%);
```

## Nim

### Displaying in terminal

```import strutils

const N = 51  # Grid width and height.

type
Vec2 = tuple[x, y: int]
Grid = array[N, array[N, string]]

const Deltas: array[4, Vec2] = [(0, 1), (-1, 0), (0, -1), (1, 0)]

proc `+`(v1, v2: Vec2): Vec2 =
(v1.x + v2.x, v1.y + v2.y)

proc isPrime(n: Positive): bool =
## Check if a number is prime.
if n == 1: return false
if (n and 1) == 0: return n == 2
if (n mod 3) == 0: return n == 3
var delta = 2
var d = 5
while d * d <= n:
if n mod d == 0: return false
inc d, delta
delta = 6 - delta
return true

proc fill(grid: var Grid; start: Positive = 1) =
## Fill the grid using Ulam algorithm.

template isEmpty(pos: Vec2): bool = grid[pos.x][pos.y].len == 0

# Fill the grid with successive numbers (as strings).
var pos: Vec2 = (N div 2, N div 2)
grid[pos.x][pos.y] = \$start
var currIdx = 3
for n in (start + 1)..<(start + N * N):
let nextIdx = (currIdx + 1) and 3
var nextPos = pos + Deltas[nextIdx]
if nextPos.isEmpty():
# Direction change is OK.
currIdx = nextIdx
else:
# Continue in same direction.
nextPos = pos + Deltas[currIdx]
pos = move(nextPos)
grid[pos.x][pos.y] = \$n

# Replace the values with a symbol (if prime) or a space (if composite).
for row in 0..<N:
for col in 0..<N:
grid[row][col] = if grid[row][col].parseInt().isPrime(): "• " else: "  "

var grid: Grid
grid.fill()
for row in grid:
echo row.join()
```
Output:
```                                                •       •           •               •
•       •           •           •               •       •   •
•           •   •                       •                   •   •       •   •
•   •                                   •           •           •
•           •           •           •               •                   •   •   •
•       •       •                           •       •               •       •
•           •       •   •       •                           •       •
•           •           •   •           •       •   •                                   •   •   •
•           •   •                                           •           •
•   •           •       •                       •           •
•       •   •       •                           •   •
•   •                               •       •               •       •   •
•           •       •                       •   •           •
•   •       •   •           •   •           •           •                       •
•       •   •                       •                       •       •           •   •           •
•           •           •       •               •           •                               •
•   •           •       •                   •       •   •       •   •   •
•   •   •   •               •           •                   •   •       •           •   •
•           •       •   •                               •           •
•   •           •       •       •   •       •   •
•           •       •       •       •   •       •               •       •   •                   •
•   •       •                                   •
•   •       •               •       •   •           •   •   •           •   •   •
•       •   •   •   •   •   •   •   •       •               •                   •   •
•   •   •                       •
•                           •       •     • •   •   •   •       •   •   •           •
•   •               •               •   •   •
•       •
•   •           •       •   •       •   •       •       •   •       •       •   •       •       •
•           •           •       •       •           •           •   •       •               •
•                                           •                       •                       •
•   •                   •   •           •       •       •               •   •
•   •           •       •                       •               •           •
•           •           •       •   •
•   •       •           •       •           •       •   •   •
•               •   •   •   •                   •   •           •           •   •       •   •
•       •                       •   •
•           •       •   •           •           •       •   •                       •           •
•   •           •   •               •                   •               •           •
•                               •   •       •   •                   •           •
•                       •       •           •           •                   •   •           •
•               •   •           •                                   •
•           •       •               •                       •       •           •
•                                                                   •           •       •
•       •   •       •           •                       •                           •
•                                   •           •       •   •                               •
•           •                       •               •                               •       •
•               •           •       •   •       •               •           •
•                                   •                                               •       •
•                           •           •       •   •           •       •           •
•           •                                           •                       •   •                 ```

### Writing a PNG image

Library: imageman

Writing in a file, it is possible to create much bigger images.

```import imageman

const
N = 501  # Grid width and height.
FG = ColorRGBU [byte 255, 255, 255]
BG = ColorRGBU [byte 0, 0, 0]

type
Vec2 = tuple[x, y: int]
Grid = array[N, array[N, int32]]

const Deltas: array[4, Vec2] = [(0, 1), (-1, 0), (0, -1), (1, 0)]

proc `+`(v1, v2: Vec2): Vec2 =
(v1.x + v2.x, v1.y + v2.y)

proc isPrime(n: Positive): bool =
## Check if a number is prime.
if n == 1: return false
if (n and 1) == 0: return n == 2
if (n mod 3) == 0: return n == 3
var delta = 2
var d = 5
while d * d <= n:
if n mod d == 0: return false
inc d, delta
delta = 6 - delta
return true

proc fill(grid: var Grid; start: Positive = 1) =
## Fill the grid using Ulam algorithm.

template isEmpty(pos: Vec2): bool = grid[pos.x][pos.y] == 0

let start = start.int32

# Fill the grid with successive numbers (as strings).
var pos: Vec2 = (N div 2, N div 2)
grid[pos.x][pos.y] = start
var currIdx = 3
for n in (start + 1)..<(start + N * N):
let nextIdx = (currIdx + 1) and 3
var nextPos = pos + Deltas[nextIdx]
if nextPos.isEmpty():
# Direction change is OK.
currIdx = nextIdx
else:
# Continue in same direction.
nextPos = pos + Deltas[currIdx]
pos = move(nextPos)
grid[pos.x][pos.y] = n

proc apply(img: var Image; grid: Grid) =
## Fill the image with foreground pixel (for primes) or nothing (for composites).
for row in 0..<N:
for col in 0..<N:
if grid[row][col].isPrime():
img[row, col] = FG

var grid: Grid
grid.fill()

var image = initImage[ColorRGBU](N, N)
image.fill(BG)
image.apply(grid)
image.savePNG("ulam_spiral.png", compression = 9)
```

## PARI/GP

In this version function plotulamspir() was translated from VB, plus upgraded to plot/print different kind of Ulam spirals. My own plotting helper functions and string functions were used and made it possible. You can find all of them here on RosettaCode Wiki.

Works with: PARI/GP version 2.7.4 and above
```\\ Ulam spiral (plotting/printing)
\\ 4/19/16 aev
plotulamspir(n,pflg=0)={
my(n=if(n%2==0,n++,n),M=matrix(n,n),x,y,xmx,ymx,cnt,dir,n2=n*n,pch,sz=#Str(n2),pch2=srepeat(" ",sz));
if(pflg<0||pflg>2,pflg=0);
print(" *** Ulam spiral: ",n,"x",n," matrix, p-flag=",pflg);
x=y=n\2+1; xmx=ymx=cnt=1; dir="R";
for(i=1,n2,
if(isprime(i), if(!insm(M,x,y), break); if(pflg==2, M[y,x]=i, M[y,x]=1));
if(dir=="R", if(xmx>0, x++;xmx--, dir="U";ymx=cnt;y--;ymx--); next);
if(dir=="U", if(ymx>0, y--;ymx--, dir="L";cnt++;xmx=cnt;x--;xmx--); next);
if(dir=="L", if(xmx>0, x--;xmx--, dir="D";ymx=cnt;y++;ymx--); next);
if(dir=="D", if(ymx>0, y++;ymx--, dir="R";cnt++;xmx=cnt;x++;xmx--); next);
);\\fend
\\Plot/Print according to the p-flag(0-real plot,1-"*",2-primes)
if(pflg==0, plotmat(M));
if(pflg==1, for(i=1,n,
for(j=1,n, if(M[i,j]==1, pch="*", pch=" ");
print1(" ",pch)); print(" ")));
if(pflg==2, for(i=1,n,
print1(" ",pch)); print(" ")));
}

{\\ Executing:
plotulamspir(9,1); \\ (see output)
plotulamspir(9,2); \\ (see output)
plotulamspir(100); \\ ULAMspiral1.png
plotulamspir(200); \\ ULAMspiral2.png
}```
Output:
```> plotulamspir(9,1);
*** Ulam spiral: 9x9 matrix, p-flag=1

*   *
*           *
*   *       *
*   *   *
*     * *   *
*   *
*       *
*       *
*           *

> plotulamspir(9,2);
*** Ulam spiral: 9x9 matrix, p-flag=2

61    59
37                31
67    17          13
5     3    29
19        2 11    53
41     7
71          23
43          47
73                79

> plotulamspir(100); \\ ULAMspiral1.png
*** Ulam spiral: 101x101 matrix, p-flag=0
*** matrix(101x101) 1252 DOTS

> plotulamspir(200); \\ ULAMspiral2.png
*** Ulam spiral: 201x201 matrix, p-flag=0
*** matrix(201x201) 4236 DOTS
```

## Pascal

Rather than produce just splots, why not colour code them? Further, how about coding all the numbers according to the number of their first prime factor? The result looks a bit like a tartan rug. Alas, image files can't be presented, so a no show, but those with access to Turbo Pascal or similar can have a try. Amusingly enough, with black as colour zero reserved for N <= 1 (thus, the normal start square is black) and white as colour one for prime numbers, it becomes marginally convenient to regard two as the second prime... Without grid marking, finding the centre of the spiral is difficult, so showing N where it is a single digit helps. Encoding could be pressed forwards into different symbols, but enough already.

In the first part of the source are some support routines, from way back in the 1980s, written when the mainframe terminals only offered capitals and the habit lingered. They are there only so as to facilitate some gestures towards checking. The remainder is simple enough, and uses complex numbers to follow the spiral, which of course have to be implemented via ad-hoc code as they're not supported by the compiler. The scheme could be recast into the (line,column) form, counting downwards for the screen line, but array(i,j) = (x,y) means less standing upside down when devising the arithmetic for the directions, at the cost of a "downto" loop for output. An even more tricky scheme would be to ascertain N from (line,column) as the lines were written rather than compute the whole spiral first. Such a function exists.

```Program Ulam; Uses crt;
{Concocted by R.N.McLean (whom God preserve), ex Victoria university, NZ.}
{\$B- evaluate boolean expressions only so far as necessary.}
{\$R+ range checking...}

FUNCTION Trim(S : string) : string;
var L1,L2 : integer;
BEGIN
L1 := 1;
WHILE (L1 <= LENGTH(S)) AND (S[L1] = ' ') DO INC(L1);
L2 := LENGTH(S);
WHILE (S[L2] = ' ') AND (L2 > L1) DO DEC(L2);
IF L2 >= L1 THEN Trim := COPY(S,L1,L2 - L1 + 1) ELSE Trim := '';
END; {Of Trim.}

FUNCTION Ifmt(Digits : integer) : string;
var  S : string[255];
BEGIN
STR(Digits,S);
Ifmt := Trim(S);
END; { Ifmt }
Function min(i,j: integer): integer;
begin
if i <= j then min:=i else min:=j;
end;
Procedure Croak(Gasp: string);        {A lethal word.}
Begin
WriteLn;
WriteLn(Gasp);
HALT;                   {This way to the egress...}
End;
var ScreenLine,ScreenColumn: byte;	{Line and column position.}
{=========================enough support===================}
const Mstyle = 6;	{Display different results.}
const StyleName: array[1..Mstyle] of string = ('IsPrime','First Prime Factor Index',
'First Prime Factor','Number of Prime Factors',
'Sum of Prime Factors','Sum of Proper Factors');
const OrderLimit = 49; Limit2 = OrderLimit*OrderLimit;		{A 50-line screen has room for a heading.}
var Tile: array[1..OrderLimit,1..OrderLimit] of integer; 	{Alas, can't put [Order,Order], only constants.}
var FirstPrimeFactorIndex,FirstPrimeFactor,NumPFactor,SumPFactor,SumFactor: array[1..Limit2] of integer;
const enuffP = 17;	{Given the value of Limit2.}
const Prime: array[1..enuffP] of integer = (1,2,3,5,7,11,13,17,19,23,29,31,37,41,43,47,53);
Procedure Prepare;	{Various arrays are to be filled for the different styles.}
var i,j,p: integer;
Begin
for i:=1 to limit2 do	{Alas, can't just put A:=0;}
begin			{Nor clear A;}
FirstPrimeFactorIndex[i]:=1;	{Prime[1] = 1, so this means no other divisor.}
FirstPrimeFactor[i]:=0;
NumPFactor[i]:=0;
SumPFactor[i]:=0;
SumFactor[i]:=1;		{1 is counted as a proper factor.}
end;
FirstPrimeFactorIndex[1]:=0;	{Fiddle, as 1 is not a prime number.}
SumFactor[1]:=0;		{N is not a proper factor of N, so 1 has no proper factors...}
for i:=2 to enuffP do	{Prime[1] = 1, Prime[2] = 2, so start with i = 2.}
begin
p:=Prime[i];
j:=p + p;
while j <= Limit2 do
begin
if FirstPrimeFactorIndex[j] = 1 then FirstPrimeFactorIndex[j]:=i;
if FirstPrimeFactor[j] = 0 then FirstPrimeFactor[j]:=p;
SumPFactor[j]:=SumPFactor[j] + p;
inc(NumPFactor[j]);
j:=j + p;
end;
end;
for i:=2 to Limit2 div 2 do	{Step through all possible proper factors.}
begin			{N is not a proper factor of N, so start at 2N,}
j:=2*i;	 		{for which N is a proper factor of 2N.}
while j <= Limit2 do	{Sigh. for j:=2*i:Limit2:i do ... Next i;}
begin
SumFactor[j]:=SumFactor[j] + i;
j:=j + i;
end;
end;
End;	{Enough preparation.}

const enuffC = 11;	{Perhaps the colours will highlight interesting patterns.}
const colour:array[0..enuffC] of byte = (black,white,LightRed,
LightMagenta,Yellow,LightGreen,LightCyan,LightBlue,LightGray,
Red,Green,DarkGray);		{Colours on the screen don't always match their name!}

Procedure UlamSpiral(Order,Start,Style: integer);	{Generate the numbers, then display.}
Function Encode(N: integer): integer;	{Acording to Style, choose a result to show.}
Begin
if N <= 1 then Encode:=0
else
case style of
1:if FirstPrimeFactorIndex[N] = 1 then Encode:=1 else Encode:=0;	{1 = Prime.}
2:Encode:=FirstPrimeFactorIndex[N];
3:Encode:=FirstPrimeFactor[N];
4:Encode:=NumPFactor[N];
5:Encode:=SumPFactor[N];
6:Encode:=SumFactor[N];
end;
End;	{So much for encoding.}
var Place,Way: array[1..2] of integer;	{Complex numbers.}
var m,	{Middle.}
N,	{Counter.}
length,	{length of a side.}
lunge,	{two lunges for each length.}
step	{steps to make up a lunge of some length.}
: integer;
var i,j: integer;	{Steppers.}
var code,it: integer;	{Mess with the results.}
label XX;		{Escape the second lunge.}
var OutF: text;	{Utter drivel. It is a disc file.}
Begin
Write('Ulam Spiral, order ',Order,', start ',Start,', style ',style);	{Start the heading.}
if style <= 0 then Croak('Must be a positive style');
if style > Mstyle then croak('Last known style is '+ifmt(Mstyle));
if Order > OrderLimit then Croak('Array OrderLimit is order '+IFmt(OrderLimit));
if Order mod 2 <>1 then Croak('The order must be an odd number!');
writeln(': ',StyleName[Style]);	{Finish the heading. The pattern starts with line two.}
Assign(OutF,'Ulam.txt'); Rewrite(OutF); Writeln(OutF,'Ulam spiral: the codes for ',StyleName[style]);
m:=order div 2 + 1;		{This is why Order must be odd.}
Place[1]:=m; Place[2]:=m;	{Start at the middle.}
way[1]:=1; way[2]:=0;	{Initial direction is along the x-axis.}
n:=Start;
for length:=1 to Order do	{Advance through the lengths.}
for lunge:=1 to 2 do		{Two lunges for each length.}
begin
for step:=1 to length do			{Make the steps.}
begin
Tile[Place[1],Place[2]]:=N;
for i:=1 to 2 do Place[i]:=Place[i] + Way[i];   {Place:=Place + Way;}
N:=N + 1;
end;
if N >= Order*Order then goto XX;	{Each corner piece is part of two lunges.}
i:=Way[1]; Way[1]:=-Way[2]; Way[2]:=i;	{Way:=Way*(0,1) in complex numbers: (x,y)*(0,1) = (-y,x).}
end;
XX:for i:=order downto 1 do     {Output: Lines count downwards, y runs upwards.}
begin			{The first line is the topmost y.}
for j:=1 to order do	{(line,column) = (y,x).}
begin				{Work along the line.}
it:=Tile[j,i];			{Grab the number.}
code:=Encode(it);		{Presentation scheme.}
Write(OutF,'(',it:4,':',code:2,')');	{Debugging...}
if FirstPrimeFactorIndex[it] > 1 then TextBackGround(Black)	{Not a prime.}
else if it = 1 then TextBackGround(Black)	{Darkness for one, also.}
else TextBackGround(White);		{A prime number!}
TextColor(Colour[min(code,enuffC)]);	{A lot of fuss for this!}
{Write(code:2);}
{Write(it:3);}
if it <= 9 then write(it) else Write('*');	{Thus mark the centre.}
end;					{Next position along the line.}
if i > 1 then WriteLn;		{Ending the last line would scroll the heading up.}
WriteLn(OutF);			{But this is good for the text file.}
end;			{On to the next line.}
Close(OutF);		{Finished with the trace.}
{Some revelations to help in choosing a colour sequence.}
ScreenLine:=WhereY; ScreenColumn:=WhereX;	{Gibberish to find the location.}
if Style > 1 then	{Only the fancier styles go beyond 0 and 1.}
begin			{So explain only for them.}
GoToXY(ScreenColumn + 1,ScreenLine - 4);		{Unused space is to the right.}
TextColor(White); write('Colour sequence');	{Given 80-column displays.}
GoToXY(ScreenColumn + 1,ScreenLine - 3);		{And no more than 50 lines.}
for i:=1 to enuffC do begin TextColor(Colour[i]); write(i); end;	{My sequence.}
GoToXY(ScreenColumn + 1,ScreenLine - 2);
TextColor(White); write('From options');
GoToXY(ScreenColumn + 1,ScreenLine - 1);
for i:=1 to 15 do begin TextColor(i);write(i); end;		{The options.}
end;
End;   {of UlamSpiral.}

var start,wot,order: integer;	{A selector.}
BEGIN	{After all that.}
TextMode(Lo(LastMode) + Font8x8);	{Gibberish sets 43 lines on EGA and 50 on VGA.}
ClrScr; TextColor(White);		{This also gives character blocks that are almost square...}
WriteLn('Presents consecutive integers in a spiral, as per Stanislaw Ulam.');
WriteLn('Starting with 1, runs up to Order*Order.');
Write('What value for Order? (Limit ' + Ifmt(OrderLimit),'): ');
if (order < 1) or (order > OrderLimit) then Croak('Out of range!');	{Oh dear.}
Prepare;
Repeat		{Until bored?}
ClrScr;			{Scrub any previous stuff.}
UlamSpiral(Order,1,wot);		{The deed!}
GoToXY(ScreenColumn + 1,ScreenLine);		{Note that the last WriteLn was skipped.}
TextColor(White); Write('Enter 0, or 1 to '+Ifmt(Mstyle),': ');	{Wot now?}
Until (wot <= 0) or (wot > Mstyle);		{Alas, "Enter" must be pressed.}
END.
```

### using FreePascal

Works with: Free Pascal version 3.2.0
```PROGRAM Ulam.pas;

{\$IFDEF FPC}
{\$mode objfpc}{\$H+}{\$J-}{R+}
{\$ELSE}
{\$APPTYPE CONSOLE}
{\$ENDIF}

(*)
Free Pascal Compiler version 3.2.0 [2020/06/14] for x86_64
The free and readable alternative at C/C++ speeds
compiles natively to almost any platform, including raspberry PI

(*)

USES
Crt,
SysUtils ;

CONST
(*)
Only odd numbers work
(*)
SIZE    = 9 ;
MSIZE   = SIZE * ord ( Odd ( SIZE ) ) ;

TYPE
D2Arr = array of array of string ;

FUNCTION IsPrime ( n: integer ): boolean ;

VAR
i:   integer;

BEGIN

IF ( n < 2 )        THEN    Exit ( False ) ;
IF ( n = 2 )        THEN    Exit ( True  ) ;
IF ( n mod 2 = 0 )  THEN    Exit ( False ) ;

FOR i := 3 TO Trunc ( Sqrt ( n ) ) DO
IF  ( n mod i = 0 ) THEN    Exit( False ) ;

IsPrime := True ;

END;

PROCEDURE  Init2DArr ( Arr: D2Arr ) ;

VAR
j: integer;
mid: integer = MSIZE div 2 ;

BEGIN

FOR j:= 1 to MSIZE - mid - 1 DO
BEGIN
Arr [ mid - j ] [ mid - j     ] := '.' ;
Arr [ mid - j ] [ mid + j     ] := '.' ;
Arr [ mid + j ] [ mid - j     ] := '.' ;
Arr [ mid + j ] [ mid + j - 1 ] := '.' ;
END;

END;

PROCEDURE Advance ( var Turn_cnt, x, y: integer ) ;

VAR
dir:    array   [ 0..3, 0..1 ]  of  shortint =
( (  1,  0 ), (  0, -1 ), ( -1,  0 ), (  0,  1 ) ) ;

BEGIN

x   := Abs ( x + dir [ Turn_cnt mod 4 ][ 0 ] ) ;
y   := Abs ( y + dir [ Turn_cnt mod 4 ][ 1 ] ) ;

END;

PROCEDURE  Add2DArr ( Arr: D2Arr ) ;

VAR

cnt:        integer =           1 ;
Turn_cnt:   integer =           0 ;
x:          integer = MSIZE div 2 ;
y:          integer = MSIZE div 2 ;

BEGIN

WHILE ( cnt < MSIZE * MSIZE ) DO
BEGIN

Advance ( Turn_cnt , x , y ) ;
Inc ( cnt ) ;

IF  ( Arr [ x ] [ y ] = '.' )   THEN
BEGIN
Arr [ x ] [ y ] := '' ;
inc ( Turn_cnt ) ;
END;

IF  ( IsPrime ( cnt ) ) THEN
Arr [ x ] [ y ] := IntToStr ( cnt ) ;

END;

END;

PROCEDURE  Show2DArr ( Arr: D2Arr ; glyph : Boolean ) ;

VAR
x, y:  integer ;

BEGIN

WriteLn ;

FOR y := Low ( Arr ) TO High ( Arr ) DO
BEGIN
FOR x := Low ( Arr [ y ] ) to High ( Arr [ y ] ) DO

IF  length ( Arr [ x ] [ y ] ) > 0  THEN
IF  glyph   THEN    Write ( '′' : 3 )
ELSE    Write ( Arr [ x ] [ y ] : 3 )
ELSE Write ( ' ' : 3) ;

WriteLn;
END;

WriteLn;

END;

VAR
Arr:       D2Arr ;

BEGIN

IF ( MSIZE = 0 ) THEN
BEGIN
WriteLn ( 'Only odd numbers work for SIZE' ) ;
Exit;
END;
SetLength   ( Arr, MSIZE, MSIZE ) ;
Init2DArr   ( Arr ) ;
Show2DArr   ( Arr , False ) ;
Show2DArr   ( Arr , True ) ;

END.
```

JPD 2021/06/14

Output:

```            61    59
37                31
67    17          13
5     3    29
19        2 11    53
41     7
71          23
43          47
73                79
```

```             ,     ,
,                 ,
,     ,           ,
,     ,     ,
,        ,  ,     ,
,     ,
,           ,
,           ,
,                 ,
```

### using FreePascal (short version)

Works with: Free Pascal version 3.2.0
```PROGRAM Ulam8.pas;

{\$IFDEF FPC}
{\$mode objfpc}{\$H+}{\$J-}{R+}
{\$ELSE}
{\$APPTYPE CONSOLE}
{\$ENDIF}

(*)
Free `translation` from PHIX for the Spiral part

Free Pascal Compiler version 3.2.0 [2020/06/14] for x86_64
The free and readable alternative at C/C++ speeds
compiles natively to almost any platform, including raspberry PI *
Can run independently from DELPHI / Lazarus

For debian Linux: apt -y install fpc
It contains a text IDE called fp

(*)

USES

crt;

CONST

SIZE    = 9                             ; // `SIZE = 9 : "The Iceskater" ( Obvious when Dutch ) `
n       = SIZE * ord ( Odd ( SIZE ) )   ;

CrLf    = #13#10                        ;

FUNCTION IsPrime ( n: integer ): boolean ;

VAR
i:   integer;

BEGIN

IF ( n < 2 )        THEN    Exit ( False ) ;
IF ( n = 2 )        THEN    Exit ( True  ) ;
IF ( n mod 2 = 0 )  THEN    Exit ( False ) ;

FOR i := 3 TO Trunc ( Sqrt ( n ) ) DO
IF  ( n mod i = 0 ) THEN    Exit( False ) ;

IsPrime := True ;

END;

FUNCTION Spiral ( w, h, x, y : integer ) : integer ;

BEGIN

IF ( y > 0 )  THEN
Spiral := w + Spiral ( h - 1, w, y - 1, w - x - 1 )
ELSE
Spiral := x

END ;

PROCEDURE PrintSpiral ( s : string ) ;

VAR

h   : integer = n   ;
i   : integer       ;
j   : integer       ;
p   : integer       ;
w   : integer = n   ;

BEGIN

FOR i := h - 1 DOWNTO 0 DO
BEGIN
FOR j := w - 1 DOWNTO 0 DO
BEGIN

p := w * h - Spiral ( w, h, j, i ) ;
IF IsPrime ( p ) THEN
IF ( s = '' ) THEN Write ( p:3 ) ELSE Write ( '`':3 )
ELSE  Write ( ' ':3 )

END;
WriteLn ;
END ;
END ;

BEGIN

IF ( n = 0 ) THEN
BEGIN
WriteLn ( 'Only odd numbers work for SIZE' ) ;
Exit;
END;

PrintSpiral ( '' )       ;
WriteLn ( CrLf )         ;
PrintSpiral ( 'Symbol' ) ;

END.
```

JPD 2021/07/04

Output:

```            61    59
37                31
67    17          13
5     3    29
19        2 11    53
41     7
71          23
43          47
73                79
```

```             ,     ,
,                 ,
,     ,           ,
,     ,     ,
,        ,  ,     ,
,     ,
,           ,
,           ,
,                 ,
```

## Perl

Translation of: python
Library: ntheory
```use ntheory qw/is_prime/;
use Imager;

my \$n = shift || 512;
my \$start = shift || 1;
my \$file = "ulam.png";

sub cell {
my(\$n, \$x, \$y, \$start) = @_;
\$y -= \$n>>1;
\$x -= (\$n-1)>>1;
my \$l = 2*(abs(\$x) > abs(\$y) ? abs(\$x) : abs(\$y));
my \$d = (\$y > \$x)  ?  \$l*3 + \$x + \$y  : \$l-\$x-\$y;
(\$l-1)**2 + \$d + \$start - 1;
}

my \$black = Imager::Color->new('#000000');
my \$white = Imager::Color->new('#FFFFFF');
my \$img = Imager->new(xsize => \$n, ysize => \$n, channels => 1);
\$img->box(filled=>1, color=>\$white);

for my \$y (0 .. \$n-1) {
for my \$x (0 .. \$n-1) {
my \$v = cell(\$n, \$x, \$y, \$start);
\$img->setpixel(x => \$x, y => \$y, color => \$black) if is_prime(\$v);
}
}

\$img->write(file => \$file) or die "Cannot write \$file: ", \$img->errstr, "\n";
```
Output:

Creates an image file ulam.png in current directory similar to the one on MathWorld. The square dimension can be optionally specified.

## Phix

```with javascript_semantics
function spiral(integer w, h, x, y)
return iff(y?w+spiral(h-1,w,y-1,w-x-1):x)
end function

integer w = 9, h = 9
for i=h-1 to 0 by -1 do
for j=w-1 to 0 by -1 do
integer p = w*h-spiral(w,h,j,i)
puts(1,"o "[2-is_prime(p)])
end for
puts(1,'\n')
end for
```
Output:
```    o o
o     o
o o   o
o o o
o  oo o
o o
o   o
o   o
o     o
```

For something that almost fills your entire screen (not pwa/p2js compatible), change the definition of w and h to

```sequence vc = video_config()
integer w = vc[VC_SCRNCOLS]-1, h = vc[VC_SCRNLINES]-1
```

## PicoLisp

```(load "@lib/simul.l")

(de ceil (A)
(/ (+ A 1) 2) )

(de prime? (N)
(or
(= N 2)
(and
(> N 1)
(bit? 1 N)
(let S (sqrt N)
(for (D 3  T  (+ D 2))
(T (> D S) T)
(T (=0 (% N D)) NIL) ) ) ) ) )

(de ulam (N)
(let
(G (grid N N)
D '(north west south east .)
M (ceil N) )
(setq This
(intern
(pack
(char
(+ 96 (if (bit? 1 N) M (inc M))) )
M ) ) )
(=: V '_)
(with ((car D) This)
(for (X 2 (>= (* N N) X) (inc X))
(=: V (if (prime? X) '. '_))
(setq This
(or
(unless (: V) (pop 'D) This) )
((pop D) This) ) ) ) )
G ) )

(mapc
'((L)
(for This L
(prin (align 3 (: V))) )
(prinl) )
(ulam 9) )

(bye)```
Output:
```  _  _  _  _  .  _  .  _  _
_  .  _  _  _  _  _  .  _
.  _  .  _  _  _  .  _  _
_  _  _  .  _  .  _  .  _
_  _  .  _  _  .  .  _  .
_  .  _  .  _  _  _  _  _
.  _  _  _  .  _  _  _  _
_  .  _  _  _  .  _  _  _
.  _  _  _  _  _  .  _  _
```

## PowerShell

```function New-UlamSpiral ( [int]\$N )
{
#  Generate list of primes
\$Primes = @( 2 )
For ( \$X = 3; \$X -le \$N*\$N; \$X += 2 )
{
If ( -not ( \$Primes | Where { \$X % \$_ -eq 0 } | Select -First 1 ) ) { \$Primes += \$X }
}

#  Initialize variables
\$X = 0
\$Y = -1
\$i = \$N * \$N + 1
\$Sign = 1

#  Intialize array
\$A = New-Object 'boolean[,]' \$N, \$N

#  Set top row
1..\$N | ForEach { \$Y += \$Sign; \$A[\$X,\$Y] = --\$i -in \$Primes }

#  For each remaining half spiral...
ForEach ( \$M in (\$N-1)..1 )
{
#  Set the vertical quarter spiral
1..\$M | ForEach { \$X += \$Sign; \$A[\$X,\$Y] = --\$i -in \$Primes }

#  Curve the spiral
\$Sign = -\$Sign

#  Set the horizontal quarter spiral
1..\$M | ForEach { \$Y += \$Sign; \$A[\$X,\$Y] = --\$i -in \$Primes }
}

#  Convert the array of booleans to text output of dots and spaces
\$Spiral = ForEach ( \$X in 1..\$N ) { ( 1..\$N | ForEach { ( ' ', '.' )[\$A[(\$X-1),(\$_-1)]] } ) -join '' }
return \$Spiral
}

New-UlamSpiral 100
```
Output:
```                           .     .                 .       .         . .     .               .     .
.             .                                   .   .       .     .           .         .
.     .   .           .     .       .           .   .     .             .   .     .
.     .         . .           .   .                   .   .                 .       .     .
.             .   .           . .     .   .                             . .         .
. .       .   . .     .           .         .     .             .                     .     . .
. .     .             .   .     .             .   .       .   .     .       .   .
.                       .                 . .               . .         .           .
.             .   .           .       .     .           .   .     .       .     .       .
.             .         .     . .         . .         .     .           . .     .           .   .
.       .         .     .     .     . .     .         .     .       .     .   .
.     .     .             .     .   .     .       .                 .   .   .     .
.                                     .     . .   .                   .     .         .
.     .                     .     . .   .     .           . .   .     .
.     .       .       .   .             .     .                           .     .   . . . . . .
. . .     . .             .           .     .         .                             .     .     .
.                 .     .     .       .               .     .
. .   . .       .         . .         .                             .         .           .
.     . .       . .           .     .               .     . .                                 .
.           .                 .         . .                 .     .   .           .
. .         .         .         . .         .           . .         .     .     . . . . .   .
. . .         .     . .           .   .           . .     .   .     .     .             .
.               . .         .                   .     .   .           .
. .     .       .     .     .         .       .                   .     .       .
.                           .     .   . .   .     .     .       .   . .     .   . .   .     . .
.                 .                             .   .     .       .         .     .
.         . .     .   .         .   .     .     .       .   . .                   . .
. . . .   .       . .   .     . .           .         . .   . .               .                 .
.               . .                 .     .     .               .     .
.                 .             .     .     .     .       .         . . . . .     . .           .
. .     .       . .   .   .             .   .       .   .           .     .     . .         .
.     .   . .   .             .   .                 .
. .   . .     .     . .     .   . .                 . . .     . .       . .     .
.           . .     .       .     . .                     .     .             .   .     .     .
.                     . .     .   .           .     .           .           .
.   . .   .             . . .   . .   .     .     .
. .       .         . .               .   .       .   . .           .
.     .           .     .   .           . .     .                     .     .
.         .     . .   . .     . .     .     .           .           .
.         . .             .   . .           .           .   .     . .     .                     .
.           .           .     .     .   .       .     .               .           .
. .     .   .         .   . .   . . .                 .                 .
.         .   .   .       . . . .       .     .         . .   .     . .     .               .     .
.     .                       .     .   . .               .     .     .
. .     .   .   . .   . . .   . .     . .         .
.       .     .     . . .     .   .   .   . .   .       .   . .         .           .     .       .
. .   .                 .           .
. .   .     .     . .   .       .   . .     . . .     . . .               . .           . .
.   . .   . .     .   . . . . . . . .   .       .         . .         .             .
. . .           .           .     .
.           . .   .     .             .   .  .. . . .   . . .     .       . . . .             .
.         . . .       . .       .       . . .
.                 .                       .   .
.                       . .     .   . .   . .   .   . .   .   . .   .   . .       .     .   . .
. .       . .   .   .     .     .   .   .     .     . .   .       .     .     .   . .
.     .     .                     .           .           .           .
. .     .         . .         . .     .   .   .       . .       .       .   .     .   .
.         . . . .             . .     .   .           .       .     .         .     .           .
.                       .     .     .   . .
.       .           .                     . .   .     .   .     .   . . .         .
.   . .   .   .     . .       . . . .         . .     .     . .   . .   .       .   . .   . .
.                             .   .           . .
.         . .     .     .     .   . .     .     .   . .           .     .   . . .     . .         .
.   .     . . . . .     . .       .         .       .     .             .   .
.           .               . .   . .         .     .                       .     .
.   .     .             .           .   .     .     .         . .     .       .   . .   . . .
. .         .       .       .       . .     .                 .             .     .   .       .
.     .           .     .   .       .           .   .     .           .     .           .
.                     . .                                 .     .   .     .         .   .         .
.   .     .   . .       .   . .   .     .           .             .     . .     .         . .
.           .                 .     .   . .               .     .           .
.         .           .     .           .       .               .   .     .           . .     .
.             . . .       .     .   . .   .       .     .                       .     .     .
.                       .                 .                       .   .
.     .           .             .     .   . .     .   .     .               . . . .   .
.   .   .             . .     .                     .           . .           . .         . .     .
.                 .           .         .           . .     .   . .               .
. .           .                           . .         .       .   .   .   .             . .
. . . . . .     . .           .     .       .   .       .
.               .       .   . .   . .               .     .     .
.         .           . .   .             .     .   .       .         .     .         . . .
. . .   .     . .   .     . .           .   .                   .           . .
.     .     .                 .                       .         .     . .               .     .
.         . .                 .     .   .     .     .                 . .         .   .   . .
.     .             .                 . .     .   .                 .       .       .     .   .
.               .             .     .     .   .     . .         . .               .
.     .           .     . .               .     .     .             .             . .
. .         .     .     .   .       .         .                               .             .
.   .     . .         . .               .     .                   .   .
.       .         .                       . .   .       .     .   .       .             . . .   .
.   .         .                             .       .                 .   . .           . .   .
.                 .   . .   .       .               .     .     . .           .
.       .                 .         .     .             .   . .     .
.         . .         .       .         .     .     .       .   .     . .         . .
.           .             .     .   . .   .                 .     .           .     .
. .                 .         . .         . .   .     .                   .     .   .           .
.       .         .       .               . .         .             .   . .           .     .
.       .         .           .     . .                           . .     .   . .
.   .             .   . .     .                     .     .             .     .     .       .
. .           .     .   .     .                 . .           .     .   .
```

## Python

```# coding=UTF-8
from __future__ import print_function, division
from math import sqrt

def cell(n, x, y, start=1):
d, y, x = 0, y - n//2, x - (n - 1)//2
l = 2*max(abs(x), abs(y))
d = (l*3 + x + y) if y >= x else (l - x - y)
return (l - 1)**2 + d + start - 1

def show_spiral(n, symbol='# ', start=1, space=None):
top = start + n*n + 1
is_prime = [False,False,True] + [True,False]*(top//2)
for x in range(3, 1 + int(sqrt(top))):
if not is_prime[x]: continue
for i in range(x*x, top, x*2):
is_prime[i] = False

cell_str = lambda x: f(x) if is_prime[x] else space
f = lambda _: symbol # how to show prime cells

if space == None: space = ' '*len(symbol)

if not len(symbol): # print numbers instead
max_str = len(str(n*n + start - 1))
if space == None: space = '.'*max_str + ' '
f = lambda x: ('%' + str(max_str) + 'd ')%x

for y in range(n):
print(''.join(cell_str(v) for v in [cell(n, x, y, start) for x in range(n)]))
print()

show_spiral(10, symbol=u'♞', space=u'♘') # black are the primes
show_spiral(9, symbol='', space=' - ')
# for filling giant terminals
#show_spiral(1001, symbol='*', start=42)
```
Output:
```♘♘♘♞♘♘♘♘♘♘
♘♘♘♘♞♘♞♘♘♘
♘♞♘♘♘♘♘♞♘♞
♞♘♞♘♘♘♞♘♘♘
♘♘♘♞♘♞♘♞♘♘
♘♘♞♘♘♞♞♘♞♘
♘♞♘♞♘♘♘♘♘♘
♞♘♘♘♞♘♘♘♘♘
♘♞♘♘♘♞♘♘♘♞
♞♘♘♘♘♘♞♘♘♘

-  -  -  - 61  - 59  -  -
- 37  -  -  -  -  - 31  -
67  - 17  -  -  - 13  -  -
-  -  -  5  -  3  - 29  -
-  - 19  -  -  2 11  - 53
- 41  -  7  -  -  -  -  -
71  -  -  - 23  -  -  -  -
- 43  -  -  - 47  -  -  -
73  -  -  -  -  - 79  -  -
```

## Quackery

`spiral` is defined at Spiral matrix#Quackery.

`isprime` is defined at Primality by trial division#Quackery.

```  32 spiral
witheach
[ witheach
[ 1024 swap -
isprime iff
say " o"
else say " ." ]
cr ]```
Output:
``` . . . o . o . . . . . o . . . o . . . . . . . . . . . o . . . .
. . . . . . . . . . . . . . o . . . o . o . . . o . . . . . . .
. . . . . . . . . . . . . o . . . o . . . . . . . o . . . o . o
. . o . . . o . . . . . . . . . . . o . o . . . . . o . . . . .
. o . o . . . . . o . o . . . . . o . . . . . o . . . . . . . .
. . . . . . . . . . o . . . . . . . . . . . o . . . o . . . . .
. . . . . o . . . o . . . . . . . o . . . . . o . . . . . . . .
o . . . o . . . . . . . . . o . . . o . o . . . o . o . o . . .
. . . . . . . o . . . . . o . . . . . . . . . o . o . . . o . .
. . o . . . . . o . . . o . o . . . . . . . . . . . . . . . o .
. . . . . . . . . . . . . . . o . o . . . . . o . . . o . . . o
o . . . o . . . o . o . . . o . . . . . . . o . . . o . o . . .
. . . . . . . . . . . . . . . o . o . . . o . . . . . . . . . .
. . . . . . o . . . o . o . . . . . o . o . o . . . . . o . o .
. o . o . o . o . o . o . o . . . o . . . . . . . o . . . . . .
. . . . . . . . . . . . . . o . o . o . . . . . . . . . . . o .
. . . . . . . . . o . . . o . . o o . o . o . o . . . o . o . o
. . o . . . . . . . o . o . o . . . . . . . . . . . . . . . . .
. . . . . . . . . . . o . . . o . . . . . . . . . . . . . . . .
o . . . o . o . . . o . o . . . o . . . o . o . . . o . . . o .
. . . o . . . o . . . o . . . . . o . . . . . o . o . . . o . .
. . . . . . . . . . . . o . . . . . . . . . . . o . . . . . . .
. . . . . . . o . o . . . . . o . . . o . . . o . . . . . . . o
. . . . o . . . o . . . . . . . . . . . o . . . . . . . o . . .
. . . . . o . . . . . o . . . o . o . . . . . . . . . . . . . .
. . . . . . . . . . o . o . . . o . . . . . o . . . o . . . . .
. o . o . o . . . . . . . . . o . o . . . . . o . . . . . o . o
. . o . . . o . . . . . . . . . . . o . o . . . . . . . . . . .
. o . o . . . . . o . . . . . o . . . o . o . . . . . . . . . .
o . . . . . . . o . . . . . . . . . o . . . . . . . o . . . . .
. . . . . . . . . o . o . . . o . o . . . . . . . . . o . . . .
. . . . . . o . . . o . . . . . o . . . . . o . . . . . . . . .
```

## R

My own plotting helper function plotmat() was used and made it possible. You can find it here on RC (Brownian tree in R) .

Note
• All pictures are ready to be uploaded, when it would be allowed again.
Translation of: PARI/GP
Works with: R version 3.3.1 and above
```## Plotting Ulam spiral (for primes) 2/12/17 aev
## plotulamspirR(n, clr, fn, ttl, psz=600), where: n - initial size;
## clr - color; fn - file name; ttl - plot title; psz - picture size.
##
require(numbers);
plotulamspirR <- function(n, clr, fn, ttl, psz=600) {
cat(" *** START:", date(), "n=",n, "clr=",clr, "psz=", psz, "\n");
if (n%%2==0) {n=n+1}; n2=n*n;
x=y=floor(n/2); xmx=ymx=cnt=1; dir="R";
ttl= paste(c(ttl, n,"x",n," matrix."), sep="", collapse="");
cat(" ***", ttl, "\n");
M <- matrix(c(0), ncol=n, nrow=n, byrow=TRUE);
for (i in 1:n2) {
if(isPrime(i)) {M[x,y]=1};
if(dir=="R") {if(xmx>0) {x=x+1;xmx=xmx-1}
else {dir="U";ymx=cnt;y=y-1;ymx=ymx-1}; next};
if(dir=="U") {if(ymx>0) {y=y-1;ymx=ymx-1}
else {dir="L";cnt=cnt+1;xmx=cnt;x=x-1;xmx=xmx-1}; next};
if(dir=="L") {if(xmx>0) {x=x-1;xmx=xmx-1}
else {dir="D";ymx=cnt;y=y+1;ymx=ymx-1}; next};
if(dir=="D") {if(ymx>0) {y=y+1;ymx=ymx-1}
else {dir="R";cnt=cnt+1;xmx=cnt;x=x+1;xmx=xmx-1}; next};
};
plotmat(M, fn, clr, ttl,,psz);
cat(" *** END:",date(),"\n");
}

## Executing:
plotulamspirR(100, "red", "UlamSpiralR1", "Ulam Spiral: ");
plotulamspirR(200, "red", "UlamSpiralR2", "Ulam Spiral: ",1240);
```
Output:
```> plotulamspirR(100, "red", "UlamSpiralR1", "Ulam Spiral: ");
*** START: Sun Feb 12 12:03:34 2017 n= 100 clr= red psz= 600
*** Ulam Spiral: 101x101 matrix.
*** Matrix( 101 x 101 ) 1232 DOTS
*** END: Sun Feb 12 12:03:37 2017

> plotulamspirR(200, "red", "UlamSpiralR2", "Ulam Spiral: ",1240);
*** START: Sun Feb 12 12:03:51 2017 n= 200 clr= red psz= 1240
*** Ulam Spiral: 201x201 matrix.
*** Matrix( 201 x 201 ) 4196 DOTS
*** END: Sun Feb 12 12:04:07 2017
```

## Racket

Translation of: Python
```#lang racket
(require (only-in math/number-theory prime?))

(define ((cell-fn n (start 1)) x y)
(let* ((y (- y (quotient n 2)))
(x (- x (quotient (sub1 n) 2)))
(l (* 2 (if (> (abs x) (abs y)) (abs x) (abs y))))
(d (if (>= y x) (+ (* l 3) x y) (- l x y))))
(+ (sqr (- l 1)) d start -1)))

(define (show-spiral n
#:symbol (smb "# ")
#:start (start 1)
#:space (space (and smb (make-string (string-length smb) #\space))))
(define top (+ start (* n n) 1))
(define cell (cell-fn n start))
(define print-cell
(if smb
(λ (i p?) (display (if p? smb space)))
(let* ((max-len (string-length (~a (+ (sqr n) start -1))))
(space (or space (make-string (string-length (~a (+ (sqr n) start -1))) #\_))))
(λ (i p?)
(display (if p? (~a #:width max-len i #:align 'right) space))
(display #\space)))))

(for* ((y (in-range 0 n)) #:when (unless (= y 0) (newline)) (x (in-range 0 n)))
(define c (cell x y))
(define p? (prime? c))
(print-cell c p?))
(newline))

(show-spiral 9 #:symbol #f)
(show-spiral 10 #:symbol "♞" #:space "♘") ; black are the primes
(show-spiral 50 #:symbol "*" #:start 42)
; for filling giant terminals
; (show-spiral 1001 #:symbol "*" #:start 42)
```
Output:
```__ __ __ __ 61 __ 59 __ __
__ 37 __ __ __ __ __ 31 __
67 __ 17 __ __ __ 13 __ __
__ __ __  5 __  3 __ 29 __
__ __ 19 __ __  2 11 __ 53
__ 41 __  7 __ __ __ __ __
71 __ __ __ 23 __ __ __ __
__ 43 __ __ __ 47 __ __ __
73 __ __ __ __ __ 79 __ __
♘♘♘♞♘♘♘♘♘♘
♘♘♘♘♞♘♞♘♘♘
♘♞♘♘♘♘♘♞♘♞
♞♘♞♘♘♘♞♘♘♘
♘♘♘♞♘♞♘♞♘♘
♘♘♞♘♘♞♞♘♞♘
♘♞♘♞♘♘♘♘♘♘
♞♘♘♘♞♘♘♘♘♘
♘♞♘♘♘♞♘♘♘♞
♞♘♘♘♘♘♞♘♘♘
*       *         *                 *
* *     *                     * *
*     *         * *   *     * *               * *
*                     * *               *
*     *           * *   *     *             *
*       *         *     * *     *   * *
*       * *         *           *     * *   * * *
*           *     * *           *   * *
*     *     *         *       *
* *     * *         * *         *     *   *
*   *       *         *       *   *
*     * *         * *           *
* *     * *         *       *         * * *     *
*     * *   *     *     * *     *
* *   * *           *     *
*       *     * *         *   *   * * * *
*       *     *   * *
*     *         * *
*                   *   * *   * *       *     *
*           *     * *     *   *     *       *
*                 * *     *     *     *
*     * *     *     * *   *       *   * * *
*           *     *     * *   *     * *
*     *       *     *     *
*       *       * * *   *             *   * *
* *   *             *   * *
*   *       *   * *   *       *           *     *
*   *       * *     *     * * *     * * *
*                 *     *     * *         *
*         * *   *
* * *     * * *     *     * *   *   * *   * *
*           * *           *   * *     *   *
*   *           *     *     *             *     *
*   *   *   *             *             * *
*     *     *       *   *       *
*   * *   *           *       *     *
* *   * *   *         *     *     * * *     * *
* *   *     *     * *
*         *       *     *   *       *
* *   * *   *             *   * *
*     *     *       *     *         *
*     *     *       *     *     *
*   *     *           *         *
*       *                 *         *
*           *           *     *   *     *
*           *   * *         *           * * * *
*     *   * *   * *         *
*     * *         *             *         *
*   *     *       *               * *   *       *
*           *     *     *             *   *
```

## Raku

(formerly Perl 6)

```sub MAIN(\$max = 160, \$start = 1) {
(my %world){0}{0} = 0;
my (\$n, \$dir, \$side, \$loc) = \$start, 1, 0, 0+0i;

while ++\$side < \$max {
step for ^\$side; turn-left;
step for ^\$side; turn-left;
}

braille-graphics %world;

sub step {
\$loc += \$dir;
%world{\$loc.im}{\$loc.re} = \$n if (++\$n).is-prime;
}

sub turn-left  { \$dir ×= -i }
sub turn-right { \$dir ×=  i }
}

sub braille-graphics (%a) {
my (\$y-lo, \$y-hi, \$x-lo, \$x-hi);
for %a.keys.map(+*) -> \y {
for %a{y}.keys.map(+*) -> \x {
\$y-lo min= y; \$y-hi max= y;
\$x-lo min= x; \$x-hi max= x;
}
}

for \$y-lo, \$y-lo + 4 ...^ \$y-hi -> \y {
for \$x-lo, \$x-lo + 2 ...^ \$x-hi -> \x {
my \$cell = 0x2800;
\$cell += 2⁰ if %a{y + 0}{x + 0};
\$cell += 2¹ if %a{y + 1}{x + 0};
\$cell += 2² if %a{y + 2}{x + 0};
\$cell += 2³ if %a{y + 0}{x + 1};
\$cell += 2⁴ if %a{y + 1}{x + 1};
\$cell += 2⁵ if %a{y + 2}{x + 1};
\$cell += 2⁶ if %a{y + 3}{x + 0};
\$cell += 2⁷ if %a{y + 3}{x + 1};
print chr(\$cell);
}
print "\n";
}
}
```
Output:
```⠔⠀⠀⠀⢐⠀⠁⠀⠀⠀⢐⠁⠀⢀⠀⠄⠄⠀⢀⠀⠀⠅⢀⠁⢅⢄⠀⢀⠔⠁⠀⠀⠀⢀⢀⠀⠀⠀⠁⢀⢀⠀⠀⢔⠁⢔⠄⠀⢄⠐⠀⠀⢀⠁⠐⠄⠀⢑⠄⠁⠄⠀⠁⠄⠀⠀⠀⢐⠀⠄⠐⠀⢁⢀⠀⠀⠄⠀⢕⠐
⠄⠁⠁⠄⠀⠄⢀⠀⠐⠀⠀⠁⢁⢀⠐⠀⠀⠀⢁⠐⠄⠀⠀⠔⠀⢐⠁⠄⠀⠑⠀⢀⠁⠀⠐⠐⠁⠀⠄⠀⢀⠀⠀⠀⠐⠀⠐⠀⠅⠀⠀⢄⢀⠐⠁⠐⠄⠁⢀⠀⠀⠐⠁⠀⠀⠄⢄⠀⠕⠁⠀⠐⢄⠀⠀⢀⠐⠄⠁⠀
⠀⠀⢀⠁⢀⠀⠑⢀⠀⠄⠀⠀⠅⢑⠀⠁⠐⠀⠀⠐⠀⠄⠁⢄⠀⢑⠀⠄⢑⠀⠁⠀⢀⠑⢐⠀⠁⢀⠄⠐⢀⠄⠁⠀⠀⠀⠀⢀⠄⠀⠀⠑⠀⢀⠔⢁⠀⠀⠀⠀⠐⠁⠀⠑⢀⠀⠐⠀⢄⠔⢐⠄⠅⠐⠀⠅⢁⠀⠁⠁
⠅⢀⠄⠑⠀⠀⠅⠄⠀⢐⠐⠀⠀⠄⠀⢁⠄⠀⢔⢀⠁⠀⠔⠁⠑⢐⠀⠐⠀⠁⢑⠀⠀⢁⠀⠀⠄⠀⠀⠑⢀⠀⠄⠔⠁⠀⠄⠀⠐⢀⠀⠀⠔⠁⠀⠐⠀⠀⠐⠁⠐⠀⠀⢀⠄⠁⢁⠀⠀⠐⠀⠁⢐⠀⠐⠀⠄⠑⠐⠄
⠀⠀⠀⢐⠑⠑⢀⠁⠑⢀⠐⠀⠄⠀⠀⢀⢐⠕⠄⠀⠀⠀⠐⠀⠀⢀⠄⠀⠀⠀⠄⠐⠐⠀⠀⠁⢄⠐⠅⢀⠐⠄⠁⠐⠀⠅⢀⠐⢁⢀⠀⠁⠐⠕⠀⠀⠀⠀⢐⠀⠅⠐⠔⢁⠀⠐⠅⠐⠄⢀⠀⢄⠀⢀⠄⠀⠀⢀⠁⠐
⢀⠀⠀⢀⠁⠀⠀⠀⢁⠁⠐⠀⠁⢐⢀⠀⠁⠀⠔⠁⢄⠁⠁⠄⠀⢀⠄⠀⢐⠀⠔⠁⢀⠕⠁⢀⠁⠀⢀⠔⢐⠀⠀⠁⢀⠀⠀⢀⠔⠀⠄⠄⠁⠀⠄⢐⠄⠁⢁⠀⠄⠀⠀⠄⠀⢄⠀⢀⢀⠁⠄⢀⠄⠀⢀⠁⢁⠀⠀⠀
⠁⠄⠀⠀⠄⠀⠄⠀⠄⠑⢄⠔⠁⠀⠁⠀⠐⠀⠀⠀⠀⠀⢀⠀⠀⠄⠁⢁⠐⠀⠀⢀⠀⠄⠐⠀⢐⠀⠁⠀⠀⠁⠁⠄⠁⢄⠔⠀⠐⠀⠀⠔⢄⠀⠀⢐⠀⢅⠀⠁⢀⠀⠀⠀⠀⠀⠄⠀⠐⠀⠀⠀⠄⠀⠀⠀⠐⠀⠄⠄
⠀⠑⠐⠔⠀⢀⢀⠀⢁⠔⠁⢁⠄⠁⠀⠀⠀⠅⠀⢀⠀⠁⢀⠀⢄⠀⠀⠀⠐⠀⢀⠐⠁⢀⠀⠀⠀⢀⠁⠀⠐⠀⠄⢀⠔⢁⠀⠀⢅⠐⠑⠅⠀⠐⠀⢀⠁⢄⠀⠀⢁⠐⠄⠀⠐⢕⢀⠁⢀⠁⠑⠅⠀⢁⠐⠀⠁⠀⢁⢐
⢀⠁⠄⠀⠀⢄⠁⠄⠀⠀⠐⠅⠁⠁⢀⢀⢅⠄⠐⢁⠀⠄⠀⠄⠅⠑⢀⠔⢀⠀⠀⢁⠀⠕⠐⠀⠀⠐⢄⠐⢀⠄⠀⠁⢀⠁⢀⠀⠄⢀⠀⠀⠀⢀⠑⢐⠀⠀⠁⠄⠐⠁⠄⠄⠀⠀⠐⢄⢀⠀⠄⠄⠀⠀⠀⠄⢄⢀⠄⠀
⠐⠄⠐⠁⠀⠔⠑⠀⠀⠐⠀⠀⠑⠀⠐⠄⠀⠀⠐⠀⠁⢀⠄⠀⠀⢐⠀⠔⠀⠀⢄⠄⠁⢐⠀⠀⢄⠔⠀⢀⢐⠁⠅⢀⠀⠄⠐⠀⢐⠀⠁⢕⠄⠀⠀⢔⠁⠀⢐⠀⢀⠄⠑⠄⠀⠀⠄⠀⠀⠄⠐⠁⠄⠀⠐⠔⠄⠀⠀⠀
⢀⠐⢀⢐⠀⠀⠄⠑⠑⠐⠐⠀⠔⠑⠀⠐⠀⢀⠀⠀⢀⠄⠀⠁⢄⠀⠁⠀⢀⠁⢀⠀⠀⠀⠐⠄⠁⢐⠔⠅⢐⠅⠀⠀⠅⠀⠀⠀⠁⠀⠔⠄⠀⠔⢀⠀⠄⢁⠐⢁⢀⢁⢀⢀⢁⠄⠁⢀⠀⠀⢁⢑⠀⢀⢐⠁⠀⠀⠀⠁
⠀⠄⠅⠀⠁⠅⠁⢁⠄⠀⠀⢀⠀⢄⠀⠁⠁⢁⠀⠄⢅⢁⠄⠄⠐⢀⢀⠄⠁⠀⠀⠀⢄⠔⠁⢀⠐⠁⠄⠐⠀⠀⠁⢐⠀⠀⢀⢀⠀⠀⠀⠐⠀⠄⠐⠀⠀⠁⠄⠀⠁⠀⠀⠁⢄⠀⠁⢅⠀⠄⠁⠀⠁⠅⢀⠀⠀⠀⠐⠁
⠁⠀⠀⠀⠀⠀⠀⢄⠀⠐⢀⠀⠐⠄⠄⠁⠀⠔⠔⠄⠀⠁⠀⠐⠄⢀⠀⠄⠔⠀⠁⠀⠀⢐⢔⠁⠅⠀⠀⢐⠀⠀⠄⠄⠀⠑⠔⠀⠅⢀⠁⠔⢀⠀⢔⠀⠁⠐⠐⠐⢐⠔⠀⠐⠀⠐⠀⠀⠐⢐⠄⠐⠐⠀⠑⢐⠐⠑⠐⠐
⢀⠁⠁⠀⠀⢑⢀⠀⠑⢀⠀⢀⠀⠀⠁⢔⠀⠀⠀⠀⢀⢀⠁⠁⢄⠀⢁⠀⠀⠐⠁⢀⠐⢁⠐⠐⢁⠐⠀⢄⠐⠅⠀⢐⠄⢁⢀⠐⠄⠐⠐⠀⠀⠔⠀⠑⢔⢀⠑⠀⠀⠐⠑⠀⠀⠐⢀⢀⠑⠀⠐⢀⠀⠁⠐⠁⠀⢁⠀⠀
⠀⠔⠀⢀⠀⠀⢀⠑⠄⠁⠄⠄⢀⠐⠁⠁⠅⠁⢁⢀⠁⠀⢐⠀⠁⠅⢀⢁⠀⢀⠑⢑⠄⠀⠀⠄⠀⠁⢄⠀⢐⠄⠁⠑⢀⠅⢑⠀⠀⠀⠄⠄⢄⠄⠕⢀⠀⠔⢄⢀⠀⠀⠀⠁⢄⠄⠀⠁⠀⠐⠄⠀⠁⢀⠄⠔⠁⠀⠁⠄
⠀⠀⠐⠀⠄⠀⠀⢀⠄⠄⢄⠔⠐⢄⠀⠀⠄⠀⠀⠀⠀⠀⢄⠔⠐⠀⠔⠐⠀⠀⠔⠀⠀⢕⢔⠀⠁⢐⠁⢑⠐⠁⠀⠀⠀⢄⠀⠀⢅⠐⠑⠐⠀⠀⢐⠔⠀⠄⠀⠑⢔⠀⠀⠔⠀⠁⢀⠄⠀⠀⠀⠀⠀⠐⠀⠀⠐⠀⠐⠀
⠄⠐⠀⠄⠀⢀⠐⠀⢀⢐⠀⢀⠄⠀⢐⠀⠀⠀⠀⠐⠐⢄⠀⠀⠔⠀⢀⠀⠀⢐⢔⠀⢀⢄⠀⠄⢀⢀⠐⠁⢐⠅⠅⢀⠑⠄⠐⠐⠀⢀⠀⠁⠁⠑⠀⢁⠅⠀⠁⠄⠀⠁⠀⠀⠁⠁⠁⠐⠑⠁⠁⠀⢀⠐⢀⢀⠀⠁⠀⢀
⢁⢀⠄⠁⠐⠀⢁⠀⠀⠀⠀⠁⠀⢑⠀⢁⠐⠀⠀⠀⢁⠁⢐⠀⢀⠀⠀⠀⢕⢄⢁⢑⠄⠀⠔⢀⠐⠁⢀⠄⠐⠄⠄⢑⢄⠅⢄⠀⠁⢁⢀⠐⠁⢀⠀⠄⠀⠐⠀⠀⠀⢀⠀⠁⢄⠀⠄⠀⢀⠅⢁⠀⠀⢀⠀⠅⠄⠀⠑⠀
⠁⠄⠄⠁⠄⠀⠀⠀⠀⠁⠀⠄⠁⠀⠀⠄⠀⠀⠁⠄⠀⠁⠄⠀⠀⠄⠄⠄⠀⠀⠄⠀⠄⠁⠄⠀⠅⠄⠁⢕⢐⠀⢀⠔⠀⠔⠄⠑⠐⠀⠑⢔⠐⠁⠐⠐⠀⢄⠐⠐⠄⠀⠀⠀⠔⠑⠄⠄⠀⠀⠀⠀⢀⠄⠀⠀⠀⠁⢐⠔
⠐⠀⠑⢐⠁⠀⢐⠑⢁⢀⠐⢀⢐⠑⠁⠀⠀⢀⠀⠁⠑⠀⠑⢐⢀⠑⢐⠀⠁⢑⠀⠑⠐⠐⠐⠑⢐⠑⢑⠄⣔⢅⢁⢁⠐⢀⢁⢅⠁⠐⢐⠀⠀⠄⢀⢐⢅⢁⠀⠀⠀⠀⠐⠁⢁⠔⢀⢑⠁⢁⠐⢀⠀⠀⢄⢀⢁⢅⢀⠀
⢀⠀⠀⠁⠀⠀⠀⢐⢀⠁⠀⠀⠁⠀⠅⠀⠔⢁⢀⠀⠀⠀⢁⢁⠁⢐⠀⢀⠅⠅⢀⠀⠄⢁⠄⢄⠀⢕⠅⠑⢄⠀⠄⢄⢀⠄⢀⠄⠄⠀⢄⠀⠄⢄⠀⠀⢀⠄⢀⢀⠄⠀⠄⠄⠀⢀⠀⢄⠄⠀⢄⢀⠄⢀⢀⠄⠀⠄⠀⢀
⠐⢄⠀⠄⠀⠄⠐⠀⠀⠁⢀⠀⠅⠀⠄⠄⠀⠀⠀⢀⠔⠕⠄⠄⠑⠀⠀⠁⠀⠐⠔⢄⠀⠀⢄⠐⠔⢀⠁⢐⢀⠐⠄⠐⠁⠀⠄⠐⠐⠄⠁⠀⠐⠀⠄⠀⠑⠄⠐⠀⠀⠐⠀⠔⠀⠁⠔⠀⠁⠀⠀⠑⠄⠔⠀⠀⠀⠑⠐⠀
⠀⠀⢀⠄⠐⠀⠀⠀⢀⠄⠀⢑⢀⠁⠐⢀⠑⠀⠔⠐⢁⢐⠀⠐⢀⠀⠑⢐⠀⠀⢀⠐⢐⢔⠐⠄⢀⠁⠁⢐⠑⢄⢄⠑⠀⠁⠐⠐⢁⠐⠑⢁⠑⢀⢀⢀⠐⠁⢐⢐⠀⠐⠐⠀⢀⠑⢁⠁⠀⠀⠀⠑⠀⠁⢐⢀⠑⠀⢀⢀
⠁⢀⠀⠀⢁⠀⠀⠅⠀⠀⠅⠀⠀⠐⢀⢀⢀⠄⠀⠅⠀⢁⠔⠀⠁⢁⠁⠁⠑⢄⠀⠁⠁⢀⢀⠄⠑⢔⠀⠐⠔⠁⠀⠄⠀⠑⢀⠀⠕⠄⠀⠀⠄⢀⠀⠁⢄⠁⢄⠄⠐⠄⢄⠔⠀⠀⠐⠁⢀⠐⠀⠀⠅⠀⠀⠔⠀⢀⠁⠀
⠀⢄⠐⠁⠀⠐⠕⠀⠄⠐⠀⠐⠀⢀⠐⠐⠀⠀⠅⠀⠄⠁⢀⠄⠀⠄⠔⠑⢀⠀⠅⠀⠅⠄⠀⠄⠁⢀⠄⠀⢀⠀⢁⢀⠕⠀⠀⠑⠀⠐⠀⢄⠐⠁⢄⠄⠁⠐⠄⠐⢀⠀⠁⠄⠔⠀⢄⠀⠁⠄⠔⠁⢐⠄⠐⠀⠀⠑⢀⠔
⢀⠐⢀⠀⠀⠐⠄⠁⠐⠄⠐⠀⢀⠑⠁⠄⠀⠁⠐⠀⢀⠀⠁⢀⠀⠐⠐⠔⠁⢀⠀⠑⠀⠀⠐⠀⢔⠑⠀⢐⠀⢁⢀⠐⠀⢀⠐⢀⠄⠁⢄⠁⠀⠀⠁⠀⠀⠀⢐⢀⢁⢑⠀⢀⠑⠐⠁⠀⢀⢀⠀⠁⢀⢀⠀⠀⠐⢀⠀⠐
⢀⢁⠀⠀⢑⢅⢁⢄⢀⢀⠅⠀⠀⠄⢀⢁⢐⢁⢀⢅⢄⠀⠀⢀⢀⠐⠅⠁⠀⠀⢁⠐⠀⢀⠀⠀⠐⢀⠀⢀⠄⠅⠐⢐⠀⠀⠔⠁⠑⠐⠄⠀⠄⠀⠅⠁⠄⠐⠀⠀⠁⠁⠀⠄⠅⠀⠀⠄⠄⠅⠀⠄⠀⠄⠀⠁⠀⠀⠔⠀
⠁⠀⠀⠁⠀⠀⠀⢀⠄⠀⠀⠀⠀⠄⠄⠀⢀⠀⠐⢀⠀⠀⢄⠔⠄⠀⠄⠀⠀⠔⠕⢀⠔⠀⠀⠄⠄⠀⠁⠐⠀⠀⠕⢀⠕⠁⠀⠁⢑⠀⠀⢀⢀⠐⠄⠀⠑⠀⠀⠁⢄⠔⠑⢐⠀⠑⢄⠐⠀⠀⠐⠀⠀⠀⠀⠀⠄⠁⢀⠄
⠀⠁⠐⠀⠁⠀⠄⠀⠑⠀⠀⢀⠀⠐⠀⠄⠀⠑⠀⠀⢐⠀⠁⢅⠀⠀⠀⠐⠀⢀⠄⠀⢁⢄⠀⠁⠔⠑⠄⠀⠑⢄⠔⠁⢀⠀⠀⢄⠄⠀⠀⠐⠁⠁⢀⠐⠄⠀⠁⠐⠁⢀⢑⠁⠐⠐⢀⠑⠔⠀⠁⠀⢁⢀⠄⠁⢐⠀⠀⠀
⠀⠅⠁⢀⠐⠀⠁⠐⠀⠁⠐⢄⠀⢄⢀⠀⠄⢀⠁⢁⠄⠀⠐⠀⢑⠄⠀⠑⠐⠀⠁⠀⠁⠐⠐⠀⠁⠄⠄⢀⠄⠁⠐⢀⠄⠐⠀⠄⠀⠄⠀⠀⢀⠄⢀⢐⠀⠑⠀⠀⠄⢄⢄⠀⢅⠀⠀⠄⠀⠅⠀⠄⠐⢀⠀⠔⠅⠀⠄⢁
⠄⠀⠄⠄⠀⠄⠀⢀⠀⠐⠀⠀⠁⠀⠔⠄⠀⠀⠁⠀⠄⢄⠀⠐⠀⠀⠄⢑⠀⠁⠅⠀⠁⠀⢀⠄⠑⢀⠄⢀⢀⠔⢀⠀⠑⠄⠀⠅⠀⠀⠅⢕⠀⠐⢐⠀⠄⠕⠀⠀⢀⠀⠀⢀⠀⠁⠀⠀⠐⢀⠐⠁⢀⠔⠁⢐⠀⠀⠐⠀
⠀⠐⢁⢀⠐⠀⢀⠁⠀⠀⠁⠑⠄⠀⢁⠐⠁⠅⢀⠐⢀⠄⠀⠀⠐⠀⠅⢀⠐⢀⢀⠁⠅⢀⠀⠄⠔⠑⠁⠀⠁⠀⠐⠁⢀⠀⠀⢀⠀⠐⠄⠔⠐⠁⢄⠀⠅⢄⠑⠀⢀⠐⠀⠀⢁⢀⠀⢀⠁⢀⠁⠅⠁⠀⠁⠀⠀⠄⠀⠁
⠀⠀⢀⠀⠄⢁⠀⠀⠄⠀⢁⢁⠀⠀⠀⠐⠀⠄⠀⠐⠀⢀⢀⠁⠁⠄⠄⢀⠀⠀⠑⢀⠀⠑⠐⠁⠀⠀⠁⢐⠄⠀⢀⠐⠄⠐⢀⠁⠑⢀⠀⠀⠐⠀⢑⠄⠀⠁⠀⠅⠐⠄⠀⠀⠄⠀⠄⠁⠀⠄⢁⢀⠁⠁⠄⠀⠀⠀⠀⢄
⠑⠀⠀⠀⢀⠀⠁⠄⠐⠀⠀⠄⢄⠀⠐⠐⠀⠑⢁⠀⠔⠀⠀⠀⠀⠀⠕⢄⠀⠐⠀⢀⠔⠅⢀⠀⠐⠀⠅⢐⠀⠕⠐⢀⠀⠔⠀⠅⠀⠀⠀⠄⢀⠁⢀⠀⠀⠔⠀⠐⠁⢀⠀⠁⢀⠁⠀⠐⠐⠄⠐⠐⠄⠀⠀⠀⠀⠀⠔⠐
⠐⠀⢐⠀⠀⠀⢀⠀⠐⠐⠀⠀⠐⠀⠄⢀⠁⢄⠀⠑⢀⠀⠐⢀⢄⠀⠀⢀⠀⢅⢔⠁⠄⠐⠀⠁⠀⠑⠀⠀⠐⠁⠄⠀⢁⢀⠀⠁⠐⠁⠀⠀⠀⠀⠀⠀⠀⠀⠐⢀⠄⠀⢀⢔⠑⢅⠀⠐⢄⠁⢀⠄⢁⢀⠐⠀⠀⢀⢀⢑
⠀⠄⠅⢀⠁⠀⠀⠅⠁⠀⢄⠀⠁⠐⠁⢀⠀⠀⠀⠀⠀⠑⠀⠄⢀⠀⠀⢀⠐⠀⠀⢀⠁⠐⢀⠄⠁⢔⠄⠀⠄⠄⠑⠄⠁⠀⠀⠁⠐⠐⠄⠁⢄⠀⢀⠄⠁⠀⠔⠁⢀⠐⠄⠀⠀⠀⢁⢐⠀⠀⠄⠀⠀⢀⠀⠅⠀⠀⠀⠀
⠔⠀⠄⠀⢀⠄⠁⢀⠁⠄⠀⠀⠑⠀⠐⠁⠀⠐⠑⢀⠄⠄⠀⠀⢄⠀⠔⠔⢀⠀⠁⠀⠔⠀⢀⠄⠀⠀⠁⢐⠀⠑⠀⠀⠀⢅⠀⠀⢀⠀⠁⠄⠀⠁⢀⠀⠔⠐⠀⠀⢅⠀⠐⢀⠀⠀⠄⢀⠐⠔⠀⠁⠄⠀⠁⠀⠔⠐⠀⠀
⠀⠐⢀⠐⠀⠁⢀⠀⠀⠐⠐⢀⢄⠐⢄⠐⠀⠅⠀⠁⠁⠄⠐⢁⠄⠀⠀⢄⠀⠅⠔⠀⢁⠀⠐⠄⢀⠀⠁⠀⠐⠀⢀⠑⢀⠄⠀⠅⠀⠀⠅⠀⠀⢀⢔⠐⠄⠀⠁⠀⠐⠀⠀⢀⠑⠀⠄⠐⢁⢀⠀⢄⢄⠁⢀⠀⢐⠐⠁⠁
⠁⠄⠄⠀⠀⠁⠀⢐⠀⠐⠀⠄⢑⠀⠀⠑⠄⠁⢁⢀⠀⢑⠔⠁⠀⠄⠄⠀⢀⠀⠑⠔⠁⢁⠀⠄⢁⠔⠀⢀⠔⠀⢐⠀⠀⠀⠄⠄⠀⠐⠁⢁⠔⠁⠐⠐⠁⢀⢀⠀⠁⠔⠀⠀⠀⠅⠁⠀⠄⠀⠔⠁⢑⠀⠀⠀⠀⠀⠐⠀
⠁⠀⠅⠐⠀⠁⠀⠀⠐⠁⠀⠀⠕⠀⠀⠅⠀⠐⠀⠀⠕⠁⠀⠄⠅⠀⠀⠐⠀⠐⠅⠀⠀⠄⠀⠀⠀⠀⠀⠐⠀⠀⠀⠀⠁⠀⠀⠀⠄⠀⠐⠁⠀⠄⠁⠀⠁⠄⠀⠐⠄⠀⠅⠀⠀⠔⠁⠀⠀⠕⠀⠀⠀⠀⠀⠁⠀⠁⠀⠀
```

## REXX

Programming note for the showing of the spiral:   because images can't be uploaded at this time on Rosetta Code, the glyphs for primes was chosen to be a solid glyph   (or in ASCII or XML terminology, a "block").

This then allows the REXX program to compress two rows of the Ulam spiral into one by processing two rows at a time by comparing each character to the character on the next line   (when comparing two lines as a pair):

• if a char on row   k   is a block, and the char on row   k+1   is a block, then a   "block"   is used.
• if a char on row   k   is a block, and the char on row   k+1   is a blank, then a   "UHblk"   is used.
• if a char on row   k   is a blank, and the char on row   k+1   is a block, then a   "LHblk"   is used.
• if a char on row   k   is a blank, and the char on row   k+1   is a blank, then a     blank   is used.

For codepage 437:

•   a "block" is 'db'x     █       (a full block)
•   a "LHblk" is 'dc'x     ▄       (a Lower Half block)
•   a "UHblk" is 'df'x     ▀       (a Upper Half block)

Or, to show all three characters in the (above) ordered next to each other (separated by a blank):   █ ▄ ▀

This allows the displaying of the Ulam prime spiral to keep a (mostly) square aspect ratio.

The characters chosen allow for the HTML on Rosetta Code to shrink (via STYLE font-size) the displayed output to half their normal height.

### counter-clockwise

```/*REXX program shows counter─clockwise  Ulam spiral  of primes shown in a square matrix.*/
parse arg size init char .                       /*obtain optional arguments from the CL*/
if size=='' | size==","  then size= 79           /*Not specified?  Then use the default.*/
if init=='' | init==","  then init=  1           /* "      "         "   "   "     "    */
if char==''              then char= "█"          /* "      "         "   "   "     "    */
tot=size**2                                      /*the total number of numbers in spiral*/
/*define the upper/bottom right corners*/
uR.=0; bR.=0;   do od=1  by 2  to tot;  _=od**2+1;  uR._=1;  _=_+od;   bR._=1;  end /*od*/
/*define the bottom/upper left corners.*/
bL.=0; uL.=0;   do ev=2  by 2  to tot;  _=ev**2+1;  bL._=1;  _=_+ev;   uL._=1;  end /*ev*/

app=1;    bigP=0;    #p=0;    inc=0;     minR=1;    maxR=1;    r=1;    \$=0;    \$.=;    !.=
/*▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒ construct the spiral #s.*/
do i=init  for tot;    r= r + inc;     minR= min(minR, r);      maxR= max(maxR, r)
x= isPrime(i);   if x  then bigP= max(bigP, i);          #p= #p + x   /*bigP, #primes.*/
if app  then \$.r= \$.r ||  x                                           /*append  token.*/
else \$.r=  x  || \$.r                                          /*prepend token.*/
if uR.i  then do;  app= 1;  inc= +1;  iterate  /*i*/;    end          /*advance  ↓    */
if bL.i  then do;  app= 0;  inc= -1;  iterate  /*i*/;    end          /*   "     ↑    */
if bR.i  then do;  app= 0;  inc=  0;  iterate  /*i*/;    end          /*   "     ►    */
if uL.i  then do;  app= 1;  inc=  0;  iterate  /*i*/;    end          /*   "     ◄    */
end   /*i*/                                                           /* [↓] pack two */
/*lines ──► one.*/
do j=minR  to maxR  by 2;    jp= j + 1;              \$= \$ + 1         /*fold two lines*/
do k=1  for  length(\$.j);  top= substr(\$.j, k, 1)                   /*the  1st line.*/
bot= word( substr(\$.jp, k, 1)   0, 1)    /*the  2nd line.*/
if top  then if  bot  then !.\$= !.\$'█'                              /*has top & bot.*/
else !.\$= !.\$'▀'                              /*has top,¬ bot.*/
else if  bot  then !.\$= !.\$'▄'                              /*¬ top, has bot*/
else !.\$= !.\$' '                              /*¬ top,   ¬ bot*/
end   /*k*/
end     /*j*/                                  /* [↓]  show the  prime  spiral matrix.*/
do m=1  for \$;     say !.m;     end  /*m*/
say;  say init 'is the starting point,'  ,
tot  'numbers used,'   #p   "primes found, largest prime:"   bigP
exit                                             /*stick a fork in it,  we're all done. */
/*──────────────────────────────────────────────────────────────────────────────────────*/
isPrime: procedure; parse arg x;  if wordpos(x, '2 3 5 7 11 13 17 19') \==0  then return 1
if x<17  then return 0;                            if x// 2    ==0  then return 0
if x// 3    ==0  then return 0
/*get the last digit*/    parse var x  ''  -1  _;  if         _==5  then return 0
if x// 7    ==0  then return 0
if x//11    ==0  then return 0
if x//13    ==0  then return 0

do j=17  by 6  until  j*j > x;            if x//j     ==0  then return 0
if x//(j+2) ==0  then return 0
end   /*j*/;          return 1
```
output   when using the default input:

(Shown at three-quarter size.)

```      ▀     ▀     ▀          ▄  ▀  ▄ ▄▀  ▄▀     ▀       ▀    ▄     ▄      ▀  ▄▀
▄▀     ▀▄       ▄   ▄        ▀    ▄▀ ▀  ▄▀     ▀           ▀ ▀   ▀  ▄  ▀  ▄
▀ ▀      ▄      ▀          ▄▀    ▄▀    ▄    ▀  ▄               ▄     ▄    ▀
▀▄ ▄▀ ▀    ▄ ▄▀         ▀▄▀    ▄    ▀          ▄     ▄ ▄          ▀         ▀
▀    ▄         ▄  ▀      ▄ ▄▀ ▀      ▄          ▀▄ ▄  ▀   ▀  ▄     ▄  ▀  ▄ ▄
▀  ▄  ▀ ▀          ▄▀▄  ▀      ▄    ▀ ▀     ▀   ▀  ▄  ▀  ▄  ▀▄
▀ ▀     ▀      ▄▀    ▄▀  ▄ ▄▀  ▄     ▄▀    ▄  ▀    ▄   ▄ ▄     ▄  ▀▄ ▄  ▀▄
▄ ▄    ▀▄   ▄         ▄   ▄     ▄    ▀▄  ▀    ▄▀  ▄ ▄  ▀         ▀     ▀▄ ▄
▀    ▄  ▀ ▀   ▀     ▀▄▀▄          ▀      ▄  ▀ ▀▄  ▀ ▀▄              ▀▄     ▄
▄    ▀  ▄ ▄   ▄   ▄▀     ▀     ▀▄   ▄▀      ▄▀  ▄      ▀ ▀ ▀▄▀ ▀  ▄  ▀ ▀▄
▄ ▄   ▄ ▄     ▄    ▀▄ ▄  ▀  ▄▀ ▀▄ ▄▀             ▀  ▄▀▄ ▄     ▄ ▄      ▀
▀▄▀     ▀       ▀     ▀▄▀▄     ▄   ▄          ▀▄    ▀▄           ▄▀   ▀
▄       ▄         ▄ ▄               ▄▀  ▄▀ ▀   ▀▄   ▄ ▄      ▀ ▀ ▀▄  ▀ ▀   ▀
▀▄    ▀    ▄     ▄▀▄   ▄▀▄  ▀  ▄ ▄     ▄▀ ▀  ▄  ▀        ▄           ▄▀     ▀
▀ ▀  ▄          ▀▄  ▀ ▀▄     ▄   ▄▀      ▄    ▀▄  ▀     ▀ ▀    ▄▀          ▄
▄   ▄   ▄      ▀▄▀▄ ▄ ▄▀   ▀  ▄     ▄▀   ▀ ▀  ▄▀▄▀ ▀▄     ▄ ▄     ▄  ▀
▀                       ▀     ▀   ▀ ▀▄ ▄     ▄   ▄  ▀▄ ▄  ▀▄ ▄ ▄▀  ▄ ▄     ▄
▀     ▀ ▀ ▀     ▀   ▀   ▀   ▀ ▀   ▀▄ ▄   ▄▀   ▀ ▀         ▀▄          ▀▄
▀▄  ▀▄ ▄  ▀▄ ▄  ▀ ▀▄  ▀▄ ▄ ▄ ▄▀▄ ▄▀▄▀▄   ▄▀ ▀ ▀  ▄  ▀ ▀ ▀  ▄ ▄         ▄▀ ▀
▄ ▄   ▄     ▄             ▄   ▄▀ █▄▀▄ ▄ ▄   ▄ ▄▀▄     ▄    ▀  ▄ ▄▀▄ ▄
▀ ▀ ▀  ▄    ▀ ▀       ▀       ▀▄▀ ▀▄
▄ ▄   ▄   ▄▀ ▀  ▄  ▀  ▄▀ ▀▄  ▀▄▀   ▀▄  ▀ ▀▄ ▄▀  ▄▀ ▀   ▀▄  ▀ ▀▄     ▄▀  ▄
▄▀▄    ▀▄    ▀    ▄ ▄         ▄ ▄  ▀  ▄   ▄   ▄▀      ▄ ▄  ▀    ▄      ▀▄   ▄
▀ ▀ ▀ ▀             ▀ ▀▄    ▀▄  ▀  ▄   ▄ ▄  ▀       ▀     ▀         ▀     ▀
▀  ▄   ▄    ▀▄ ▄       ▄ ▄ ▄ ▄    ▀ ▀  ▄▀▄    ▀▄  ▀  ▄ ▄▀  ▄▀▄▀ ▀▄       ▄▀  ▄
▄ ▄     ▄     ▄     ▄   ▄▀▄  ▀  ▄     ▄  ▀▄▀▄           ▄     ▄   ▄ ▄ ▄     ▄
▀  ▄  ▀ ▀ ▀ ▀ ▀▄    ▀ ▀       ▀▄ ▄   ▄ ▄▀       ▀▄    ▀▄            ▀   ▀
▄▀      ▄      ▀▄       ▄ ▄▀   ▀▄    ▀     ▀      ▄  ▀ ▀     ▀  ▄    ▀▄  ▀▄▀
▀          ▄▀▄    ▀   ▀       ▀           ▀   ▀▄    ▀▄   ▄     ▄▀     ▀  ▄
▀    ▄▀   ▀ ▀    ▄  ▀   ▀ ▀   ▀    ▄▀    ▄   ▄ ▄▀             ▀▄    ▀▄▀     ▀
▀      ▄ ▄ ▄▀     ▀▄     ▄   ▄▀▄   ▄  ▀    ▄     ▄    ▀   ▀     ▀        ▄
▄     ▄      ▀    ▄            ▀▄     ▄   ▄ ▄     ▄   ▄▀   ▀▄               ▄
▄▀ ▀     ▀  ▄         ▄        ▀  ▄ ▄     ▄▀ ▀▄ ▄        ▀ ▀    ▄
▀▄     ▄ ▄  ▀        ▄     ▄       ▄   ▄▀ ▀    ▄    ▀       ▀   ▀   ▀   ▀
▄           ▄▀▄   ▄          ▀  ▄    ▀▄  ▀▄▀   ▀ ▀▄         ▄    ▀▄    ▀
▀▄▀ ▀   ▀     ▀ ▀  ▄▀     ▀ ▀           ▀  ▄▀        ▄     ▄ ▄  ▀
▄  ▀ ▀        ▄        ▀     ▀  ▄▀▄    ▀▄   ▄▀                ▄▀ ▀    ▄    ▀
▄    ▀▄           ▄▀    ▄▀▄    ▀   ▀     ▀▄▀    ▄    ▀▄▀            ▄  ▀
▄  ▀▄    ▀▄ ▄  ▀   ▀  ▄ ▄  ▀         ▀  ▄     ▄                   ▄  ▀▄
▀         ▀                       ▀ ▀   ▀       ▀     ▀   ▀       ▀

1 is the starting point, 6241 numbers used, 811 primes found, largest prime: 6229
```
output   when the following input is used:     ,   41

(Shown at three-quarter size.)

```    ▀▄     ▄▀    ▄      ▀  ▄      ▀▄▀  ▄      ▀     ▀     ▀          ▄  ▀  ▄ ▄▀
▀   ▀ ▀▄           ▄    ▀  ▄▀ ▀     ▀▄       ▄   ▄        ▀    ▄▀
▄▀▄   ▄▀   ▀▄▀    ▄ ▄    ▀▄   ▄ ▄  ▀     ▀      ▄      ▀          ▄▀    ▄▀ ▀▄▀
▀ ▀ ▀ ▀    ▄▀  ▄ ▄            ▀  ▄      ▀    ▄▀    ▄ ▄▀         ▀▄▀    ▄
▀  ▄   ▄    ▀▄  ▀  ▄       ▄  ▀  ▄   ▄  ▀ ▀▄  ▀          ▄  ▀      ▄ ▄▀    ▄▀
▄ ▄     ▄         ▄ ▄  ▀▄▀               ▀ ▀      ▄  ▀ ▀          ▄▀ ▀ ▀▄    ▀
▀  ▄  ▀ ▀ ▀   ▀▄         ▄ ▄▀        ▄  ▀  ▄ ▄   ▄▀      ▄▀    ▄▀▄
▄▀      ▄    ▀  ▄ ▄  ▀  ▄      ▀              ▄ ▄▀          ▄    ▀     ▀ ▀
▀          ▄▀▄    ▀▄        ▀ ▀   ▀     ▀▄▀▄              ▀▄▀  ▄
▀    ▄▀   ▀ ▀    ▄    ▀▄         ▄▀ ▀  ▄▀▄    ▀▄   ▄ ▄     ▄ ▄ ▄ ▄▀  ▄   ▄    ▀
▀      ▄ ▄ ▄▀     ▀ ▀      ▄  ▀  ▄ ▄      ▀    ▄▀ ▀▄ ▄▀
▄     ▄      ▀     ▀    ▄▀▄    ▀    ▄▀▄        ▀▄     ▄▀  ▄▀    ▄ ▄   ▄
▄▀ ▀   ▀ ▀   ▀  ▄▀▄      ▀  ▄ ▄    ▀      ▄▀▄ ▄     ▄             ▄
▀▄     ▄ ▄  ▀  ▄ ▄    ▀▄ ▄ ▄   ▄  ▀  ▄    ▀▄ ▄     ▄▀               ▀       ▀
▄            ▀    ▄▀▄  ▀▄▀    ▄ ▄    ▀    ▄▀   ▀   ▀ ▀ ▀ ▀▄▀ ▀ ▀▄    ▀
▀▄▀ ▀     ▀         ▀    ▄     ▄▀     ▀  ▄▀▄▀▄       ▄     ▄     ▄ ▄     ▄
▄  ▀ ▀          ▄            ▀     ▀▄ ▄▀ ▀  ▄▀   ▀▄    ▀▄      ▀    ▄      ▀
▄      ▀    ▄     ▄▀           ▀   ▀▄▀▄   ▄▀  ▄    ▀▄ ▄▀ ▀ ▀    ▄  ▀ ▀  ▄
▀      ▄     ▄▀     ▀ ▀  ▄  ▀  ▄    ▀▄▀            ▄   ▄ ▄    ▀        ▄  ▀
▀  ▄     ▄▀     ▀▄    ▀  ▄    ▀  ▄ ▄▀▄ ▄▀   ▀▄           ▄▀   ▀▄▀   ▀ ▀     ▀
▄      ▀▄     ▄   ▄       ▄   ▄ ▄   ▄▀   ▀    ▄▀▄▀ ▀     ▀▄▀ ▀         ▀▄   ▄▀
▀  ▄  ▀  ▄     ▄    ▀   ▀       ▀▄▀     ▀  ▄ ▄   ▄   ▄ ▄   ▄ ▄ ▄ ▄ ▄     ▄
▄       ▄   ▄    ▀▄ ▄ ▄    ▀▄▀▄ ▄▀▄    ▀     ▀   ▀ ▀    ▄▀   ▀▄    ▀     ▀
▄▀      ▄   ▄▀          ▄▀  ▄  ▀     ▀   ▀      ▄      ▀ ▀▄          ▀
▀ ▀                   ▀▄  ▀  ▄▀▄   ▄▀       ▀  ▄▀  ▄ ▄▀    ▄▀▄   ▄ ▄ ▄  ▀  ▄ ▄
▄ ▄▀ ▀    ▄   ▄ ▄   ▄ ▄▀  ▄▀▄   ▄    ▀▄    ▀▄ ▄  ▀                 ▀▄
▄      ▀     ▀▄         ▄▀  ▄ ▄  ▀▄    ▀   ▀    ▄  ▀▄▀    ▄       ▄  ▀▄ ▄  ▀▄
▀     ▀ ▀▄▀         ▀▄▀    ▄▀    ▄▀      ▄▀    ▄▀    ▄          ▀     ▀▄ ▄
▄▀ ▀     ▀▄   ▄   ▄▀     ▀▄          ▀      ▄  ▀      ▄          ▀▄     ▄
▀▄     ▄   ▄ ▄    ▀       ▀  ▄   ▄ ▄  ▀     ▀▄  ▀     ▀  ▄▀ ▀ ▀▄▀ ▀  ▄  ▀ ▀▄
▄▀           ▀    ▄ ▄      ▀  ▄  ▀   ▀ ▀   ▀▄▀        ▄▀  ▄     ▄ ▄      ▀
▄  ▀▄    ▀▄   ▄▀   ▀▄    ▀      ▄▀    ▄     ▄    ▀ ▀   ▀  ▄   ▄     ▄▀   ▀
▄       ▄   ▄▀ ▀▄ ▄            ▀  ▄    ▀   ▀    ▄   ▄  ▀  ▄      ▀▄  ▀ ▀   ▀
▀ ▀ ▀ ▀ ▀ ▀       ▀   ▀    ▄ ▄   ▄ ▄▀   ▀      ▄▀           ▀        ▄▀     ▀
▄   ▄▀   ▀ ▀▄         ▄       ▄  ▀  ▄    ▀▄          ▀     ▀    ▄     ▄
▄▀        ▄     ▄ ▄  ▀      ▄ ▄         ▄ ▄▀        ▄  ▀ ▀▄ ▄▀
▀   ▀▄▀                ▄▀ ▀    ▄    ▀             ▀    ▄▀  ▄▀▄▀  ▄▀    ▄ ▄   ▄
▀  ▄▀    ▄    ▀▄▀            ▄  ▀      ▄    ▀       ▀▄   ▄            ▀   ▀
▀  ▄     ▄                   ▄  ▀▄           ▄  ▀ ▀     ▀  ▄▀ ▀   ▀ ▀
▀       ▀     ▀   ▀       ▀                 ▀         ▀     ▀     ▀ ▀     ▀

41 is the starting point, 6241 numbers used, 805 primes found, largest prime: 6277
```
output   with an input of   416   can be viewed here at   ───►   Ulam spiral (for primes)/REXX‎

### clockwise

This REXX version is presented here to show the difference between a clockwise and a counter-clockwise Ulam (prime) spiral.

```/*REXX program shows a    clockwise   Ulam spiral  of  primes  shown in a square matrix.*/
parse arg size init char .                       /*obtain optional arguments from the CL*/
if size=='' | size==","  then size= 79           /*Not specified?  Then use the default.*/
if init=='' | init==","  then init=  1           /* "      "         "   "   "     "    */
if char==''              then char= "█"          /* "      "         "   "   "     "    */
tot=size**2                                      /*the total number of numbers in spiral*/
/*define the upper/bottom right corners*/
uR.=0; bR.=0;   do od=1  by 2  to tot; _=od**2+init;  uR._=1;  _=_+od;  bR._=1; end /*od*/
/*define the bottom/upper left corners.*/
bL.=0; uL.=0;   do ev=2  by 2  to tot; _=ev**2+init;  bL._=1;  _=_+ev;  uL._=1; end /*ev*/

app=1;    bigP=0;    #p=0;    inc=0;     minR=1;    maxR=1;    r=1;    \$=0;    \$.=;    !.=
/*▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒ construct the spiral #s.*/
do i=init  for tot;    r= r + inc;     minR= min(minR, r);      maxR= max(maxR, r)
x= isPrime(i);   if x  then bigP= max(bigP, i);          #p= #p + x   /*bigP, #primes.*/
if app  then \$.r= \$.r ||  x                                           /*append  token.*/
else \$.r=  x  || \$.r                                          /*prepend token.*/
if uR.i  then do;  app= 1;  inc= +1;  iterate  /*i*/;    end          /*advance  ↓    */
if bL.i  then do;  app= 0;  inc= -1;  iterate  /*i*/;    end          /*   "     ↑    */
if bR.i  then do;  app= 0;  inc=  0;  iterate  /*i*/;    end          /*   "     ►    */
if uL.i  then do;  app= 1;  inc=  0;  iterate  /*i*/;    end          /*   "     ◄    */
end   /*i*/                                                           /* [↓] pack two */
/*lines ──► one.*/
do j=minR  to maxR  by 2;    jp= j + 1;              \$= \$ + 1         /*fold two lines*/
do k=1  for  length(\$.j);  top= substr(\$.j, k, 1)                   /*the  1st line.*/
bot= word( substr(\$.jp, k, 1)   0, 1)    /*the  2nd line.*/
if top  then if  bot  then !.\$= !.\$'█'                              /*has top & bot.*/
else !.\$= !.\$'▀'                              /*has top,¬ bot.*/
else if  bot  then !.\$= !.\$'▄'                              /*¬ top, has bot*/
else !.\$= !.\$' '                              /*¬ top,   ¬ bot*/
end   /*k*/
end     /*j*/                                  /* [↓]  show the  prime  spiral matrix.*/
do m=1  for \$;     say !.m;     end  /*m*/
say;  say init 'is the starting point,'  ,
tot  'numbers used,'   #p   "primes found, largest prime:"   bigP
exit                                             /*stick a fork in it,  we're all done. */
/*──────────────────────────────────────────────────────────────────────────────────────*/
isPrime: procedure; parse arg x;  if wordpos(x, '2 3 5 7 11 13 17 19') \==0  then return 1
if x<17  then return 0;                            if x// 2    ==0  then return 0
if x// 3    ==0  then return 0
/*get the last digit*/    parse var x  ''  -1  _;  if         _==5  then return 0
if x// 7    ==0  then return 0
if x//11    ==0  then return 0
if x//13    ==0  then return 0

do j=17  by 6  until  j*j > x;            if x//j     ==0  then return 0
if x//(j+2) ==0  then return 0
end   /*j*/;          return 1
```
output   when using the default input:

(Shown at three-quarter size.)

```▀    ▄   ▄▀    ▄ ▄         ▄ ▄    ▀ ▀   ▀    ▄  ▀  ▄  ▀   ▀       ▀    ▄   ▄
▄     ▄▀     ▀    ▄▀   ▀▄ ▄    ▀         ▀▄     ▄     ▄             ▄    ▀
▄    ▀        ▄    ▀     ▀     ▀▄ ▄▀    ▄▀ ▀▄        ▀ ▀      ▄       ▄▀
▀▄▀                ▄▀     ▀   ▀     ▀     ▀▄         ▄     ▄▀▄▀         ▀
▀ ▀▄▀   ▀     ▀▄▀▄  ▀▄    ▀ ▀      ▄    ▀▄  ▀▄       ▄         ▄▀    ▄
▄     ▄ ▄          ▀▄     ▄       ▄▀  ▄    ▀  ▄▀ ▀   ▀ ▀               ▀     ▀
▀          ▄▀          ▄         ▄      ▀ ▀  ▄ ▄    ▀▄   ▄ ▄▀   ▀   ▀   ▀  ▄
▄     ▄    ▀ ▀    ▄▀            ▄     ▄  ▀▄ ▄     ▄  ▀▄▀    ▄      ▀ ▀      ▄
▄ ▄▀▄       ▄     ▄  ▀▄ ▄   ▄       ▄     ▄  ▀   ▀                ▄
▀▄          ▀▄    ▀           ▀▄     ▄▀  ▄ ▄          ▀   ▀▄    ▀▄
▀     ▀   ▀ ▀▄ ▄    ▀   ▀ ▀   ▀     ▀           ▀▄     ▄   ▄  ▀  ▄  ▀ ▀    ▄▀
▀▄       ▄  ▀    ▄▀   ▀  ▄ ▄  ▀  ▄        ▀   ▀    ▄▀           ▀▄    ▀▄   ▄
▀▄           ▄▀           ▀  ▄▀▄   ▄▀▄    ▀    ▄    ▀▄▀     ▀       ▀   ▀ ▀
▄▀▄    ▀▄▀ ▀ ▀▄▀    ▄▀ ▀▄ ▄    ▀▄     ▄  ▀▄ ▄    ▀     ▀▄     ▄   ▄ ▄▀▄  ▀  ▄
▄   ▄     ▄ ▄       ▄ ▄▀▄ ▄▀        ▄ ▄▀ ▀  ▄     ▄ ▄   ▄ ▄   ▄       ▄   ▄
▀           ▀          ▄     ▄    ▀▄▀  ▄▀▄    ▀   ▀     ▀   ▀ ▀ ▀         ▀
▀▄▀▄▀ ▀  ▄         ▄▀▄▀     ▀  ▄▀▄     ▄   ▄▀  ▄    ▀  ▄ ▄▀      ▄  ▀    ▄▀  ▄
▀  ▄ ▄▀  ▄  ▀▄     ▄     ▄   ▄   ▄▀    ▄     ▄▀▄   ▄      ▀▄     ▄    ▀▄   ▄
▄    ▀ ▀     ▀   ▀ ▀   ▀▄▀  ▄▀   ▀ ▀   ▀   ▀ ▀   ▀   ▀ ▀       ▀
▀ ▀▄▀▄   ▄  ▀ ▀▄      ▀      ▄▀ ▀▄▀ ▄▄ ▄ ▄ ▄   ▄ ▄ ▄     ▄       ▄ ▄ ▄ ▄
▄   ▄ ▄   ▄ ▄     ▄   ▄ ▄ ▄ ▄ ▄ ▄ ▄ ▄▀ ▀▄▀      ▄    ▀    ▄ ▄    ▀    ▄▀
▀   ▀     ▀     ▀ ▀   ▀       ▀   ▀ ▀  ▄ ▄▀ ▀▄▀     ▀ ▀ ▀      ▄        ▀ ▀▄
▀     ▀ ▀ ▀     ▀   ▀   ▀   ▀ ▀   ▀▄ ▄    ▀▄  ▀▄▀  ▄ ▄   ▄▀▄ ▄   ▄ ▄  ▀  ▄
▄▀  ▄   ▄       ▄ ▄ ▄ ▄  ▀    ▄▀   ▀▄▀        ▄ ▄   ▄▀    ▄▀▄    ▀▄
▄          ▀▄▀    ▄▀   ▀▄   ▄    ▀  ▄▀ ▀  ▄▀ ▀ ▀          ▄      ▀    ▄
▀ ▀▄         ▄  ▀  ▄▀▄▀  ▄ ▄     ▄▀▄     ▄    ▀▄  ▀     ▀ ▀▄    ▀      ▄
▄▀     ▀▄         ▄▀▄    ▀   ▀      ▄   ▄▀ ▀    ▄▀  ▄ ▄           ▄    ▀     ▀
▄                     ▄ ▄     ▄  ▀▄  ▀ ▀   ▀  ▄     ▄    ▀ ▀ ▀  ▄▀ ▀   ▀
▀ ▀▄ ▄  ▀▄ ▄    ▀▄    ▀▄▀▄     ▄   ▄ ▄        ▀     ▀  ▄ ▄ ▄     ▄▀▄  ▀
▄       ▄ ▄   ▄   ▄  ▀     ▀   ▀▄▀  ▄▀      ▄   ▄  ▀   ▀    ▄     ▄     ▄▀
▄    ▀          ▄ ▄▀     ▀     ▀    ▄▀    ▄  ▀  ▄      ▀ ▀ ▀ ▀ ▀▄    ▀▄▀
▀▄ ▄    ▀▄▀  ▄▀     ▀ ▀▄   ▄     ▄▀    ▄    ▀ ▀▄  ▀▄▀▄              ▀    ▄ ▄
▀          ▄     ▄   ▄ ▄   ▄  ▀  ▄▀    ▄▀      ▄▀  ▄ ▄    ▀▄   ▄▀▄   ▄
▀ ▀    ▄▀       ▀     ▀▄ ▄  ▀      ▄  ▀       ▀        ▄     ▄   ▄▀     ▀
▄▀     ▀ ▀▄         ▄▀▄  ▀      ▄    ▀ ▀    ▄▀▄  ▀     ▀▄    ▀▄     ▄ ▄
▄▀▄       ▄ ▄      ▀    ▄    ▀▄▀              ▄  ▀  ▄ ▄▀   ▀           ▀
▀   ▀ ▀  ▄    ▀         ▀ ▀▄     ▄  ▀  ▄       ▄               ▄  ▀  ▄      ▀
▀▄▀      ▄      ▀▄   ▄      ▀     ▀▄     ▄  ▀                        ▄    ▀▄
▀     ▀                    ▄▀    ▄▀▄▀  ▄▀     ▀           ▀▄▀   ▀▄    ▀    ▄
▀     ▀     ▀             ▀     ▀   ▀     ▀       ▀                 ▀   ▀

1 is the starting point, 6241 numbers used, 811 primes found, largest prime: 6229
```

## Ring

```# Project : Ulam spiral (for primes)

paint = null

new qapp
{
win1 = new qwidget() {
setwindowtitle("Ulam spiral")
setgeometry(100,100,560,600)
label1 = new qlabel(win1) {
setgeometry(10,10,800,600)
settext("")
}
new qpushbutton(win1) {
setgeometry(220,500,100,30)
settext("draw")
setclickevent("draw()")
}
show()
}
exec()
}

func draw
p1 = new qpicture()
color = new qcolor() {
setrgb(0,0,255,255)
}
pen = new qpen() {
setcolor(color)
setwidth(1)
}
paint = new qpainter() {
begin(p1)
setpen(pen)

usn = 81
ulamspiral(usn)

endpaint()
}
label1 { setpicture(p1) show() }
return

func ulamspiral(nr)
button = list(nr)
win1{
sizenew = sqrt(nr)
for n = 1 to nr
col = n%9
if col = 0 col = 9 ok
row = ceil(n/9)

button[n] = new qpushbutton(win1)
{
setgeometry(60+col*40,60+row*40,40,40)
setclickevent("movetile(" + string(n) +")")
show()
}
next
n = 9
result = newlist(n,n)
k = 1
top = 1
bottom = n
left = 1
right = n
while (k<=n*n)
for i=left to right
result[top][i]=k
k = k + 1
next
top = top + 1
for i=top to bottom
result[i][right]=k
k = k + 1
next
right = right - 1
for i=right to left step -1
result[bottom][i]=k
k = k + 1
next
bottom = bottom - 1
for i=bottom to top step -1
result[i][left] = k
k = k + 1
next
left = left + 1
end
for m = 1 to n
for p = 1 to n
pos = (m-1)*n + p
if isprime(result[m][p])
button[pos] {settext(string(result[m][p]))}
ok
next
next
}```

Outputimage:

## Ruby

It finds the number from the position ( the coordinates ).

Translation of: Python
```require 'prime'

def cell(n, x, y, start=1)
y, x = y - n/2, x - (n - 1)/2
l = 2 * [x.abs, y.abs].max
d = y >= x ? l*3 + x + y : l - x - y
(l - 1)**2 + d + start - 1
end

def show_spiral(n, symbol=nil, start=1)
puts "\nN : #{n}"
format = "%#{(start + n*n - 1).to_s.size}s "
n.times do |y|
n.times do |x|
i = cell(n,x,y,start)
if symbol
print i.prime? ? symbol[0] : symbol[1]
else
print format % (i.prime? ? i : '')
end
end
puts
end
end

show_spiral(9)
show_spiral(25)
show_spiral(25, "# ")
```
Output:
```N : 9
61    59
37                31
67    17          13
5     3    29
19        2 11    53
41     7
71          23
43          47
73                79

N : 25
577                     571     569                     563                     557
479                                             467             463
401             397                             389                     383
487                                     317             313     311             307     461
257                     251                                     241     379
197             193     191
139     137                     239             547
491             199     101              97                             181             457
61      59             131
331             103      37                      31      89     179
587     409     263     149      67      17              13                             373
5       3      29
151              19           2  11      53     127     233             541
107      41       7
71              23
499     337             109      43              47              83     173             449
593             269              73                      79                     229     367
113                                             293
271     157                     163             167             227
503             211                                             223
419                     277             281     283
347     349             353                     359             443
599     421                                     431     433                     439
509                                             521     523
601                     607                     613             617     619

N : 25
#     # #     #     #
#           #   #
#   #       #     #
#         #   # #   # #
#     #         # #
#   # #
# #     #   #
#   # #   #       #   #
# #   #
#   # #     # # #
# # # # # #   #       #
# # #
#   #  ## # # #   #
# # #
#   #
# #   # #   #   # #   #
#   #   #     #     # #
#           #
# #     #   #   #
#   #           #
#     #   # #
# #   #     #   #
# #         # #     #
#           # #
#     #     #   # #
```

### Another Version

computes the next spiral position.

```require 'prime'

def spiral_generator(x=0, y=0)
Enumerator.new do |yielder|
yielder << [x, y]                           # start position
dx, dy = 0, 1                               # first direction
yielder << [x+=dx, y+=dy]                   # second position
0.step do |i|
2.times do
i.times{ yielder << [x+=dx, y+=dy] }    # going straight
dx, dy = -dy, dx                        # 90 degree turn
yielder << [x+=dx, y+=dy]
end
end
end
end

def ulam_spiral(n, start=1)
h = Hash.new(0)
position = spiral_generator
(start ... start+n*n).each do |i|
pos = position.next
h[pos] = 1  if i.prime?
end

chr = [[' ', '▄'], ['▀', '█']]
(xmin, xmax), (ymin, ymax) = h.keys.transpose.map(&:minmax)
(xmin..xmax).step(2).each do |x|
puts (ymin..ymax).map{|y| chr[h[[x,y]]][h[[x+1,y]]]}.join
end
end

[11, 122].each do |n|
puts "\nN : #{n}"
ulam_spiral(n)
end
```
Output:
```N : 11
▀   ▀▄ ▄
▀▄▀▄   ▄▀ ▀
▄▀ █▄▀▄
▀▄▀ ▀▄
▀▄▀   ▀▄  ▀
▀

N : 122
▄    ▀      ▄ ▄▀ ▀              ▄▀       ▀           ▀▄  ▀  ▄  ▀       ▀  ▄   ▄ ▄      ▀          ▄  ▀   ▀  ▄    ▀   ▀  ▄
▄  ▀  ▄    ▀    ▄▀   ▀ ▀            ▄   ▄▀   ▀▄▀   ▀      ▄ ▄    ▀          ▄      ▀      ▄  ▀ ▀                     ▀
▄ ▄      ▀   ▀▄    ▀    ▄▀    ▄  ▀    ▄▀    ▄     ▄▀  ▄       ▄     ▄▀   ▀ ▀     ▀  ▄▀    ▄  ▀     ▀   ▀▄   ▄ ▄  ▀
▄   ▄▀   ▀    ▄                  ▀ ▀  ▄           ▄   ▄  ▀     ▀ ▀   ▀    ▄   ▄     ▄       ▄  ▀   ▀                  ▄
▀▄▀                      ▄    ▀    ▄       ▄  ▀      ▄            ▀   ▀▄▀         ▀ ▀▄     ▄  ▀▄     ▄          ▀
▄▀ ▀   ▀       ▀       ▀              ▄     ▄▀           ▀    ▄       ▄▀     ▀  ▄▀▄▀    ▄    ▀       ▀  ▄     ▄▀▄  ▀   ▀ ▀
▄▀         ▀    ▄     ▄  ▀▄           ▄     ▄       ▄        ▀  ▄▀  ▄    ▀▄    ▀        ▄  ▀▄     ▄  ▀     ▀▄ ▄   ▄
▄▀ ▀ ▀     ▀    ▄▀         ▀ ▀▄   ▄      ▀   ▀▄ ▄     ▄   ▄      ▀   ▀                 ▀▄ ▄    ▀    ▄▀          ▄
▀      ▄ ▄▀▄▀    ▄  ▀   ▀ ▀    ▄▀  ▄     ▄  ▀         ▀▄   ▄▀      ▄   ▄  ▀  ▄       ▄   ▄      ▀     ▀ ▀       ▀▄ ▄  ▀
▄    ▀▄   ▄       ▄  ▀          ▄   ▄        ▀  ▄       ▄     ▄▀ ▀        ▄   ▄  ▀ ▀▄       ▄▀    ▄      ▀▄
▀            ▄▀      ▄  ▀     ▀▄▀    ▄    ▀▄▀    ▄ ▄  ▀  ▄  ▀      ▄    ▀▄▀     ▀▄     ▄   ▄▀   ▀     ▀     ▀
▄ ▄   ▄▀▄   ▄              ▀     ▀     ▀          ▄  ▀  ▄ ▄▀  ▄▀     ▀       ▀    ▄     ▄      ▀  ▄▀   ▀     ▀   ▀       ▀
▀          ▄     ▄▀     ▀▄       ▄   ▄        ▀    ▄▀ ▀  ▄▀     ▀           ▀ ▀   ▀  ▄  ▀  ▄   ▄ ▄ ▄ ▄ ▄ ▄▀    ▄
▀ ▀ ▀     ▀ ▀      ▄      ▀          ▄▀    ▄▀    ▄    ▀  ▄               ▄     ▄    ▀     ▀     ▀     ▀ ▀     ▀
▄  ▀▄       ▄  ▀ ▀▄ ▄▀ ▀    ▄ ▄▀         ▀▄▀    ▄    ▀          ▄     ▄ ▄          ▀         ▀           ▀▄    ▀▄  ▀
▄     ▄    ▀    ▄ ▄    ▀    ▄         ▄  ▀      ▄ ▄▀ ▀      ▄          ▀▄ ▄  ▀   ▀  ▄     ▄  ▀  ▄ ▄ ▄ ▄ ▄   ▄   ▄     ▄ ▄
▄    ▀ ▀     ▀ ▀ ▀         ▀  ▄  ▀ ▀          ▄▀▄  ▀      ▄    ▀ ▀     ▀   ▀  ▄  ▀  ▄  ▀▄           ▄▀                ▄▀
▀  ▄            ▀ ▀     ▀      ▄▀    ▄▀  ▄ ▄▀  ▄     ▄▀    ▄  ▀    ▄   ▄ ▄     ▄  ▀▄ ▄  ▀▄     ▄▀▄     ▄    ▀▄
▄   ▄      ▀▄         ▄ ▄    ▀▄   ▄         ▄   ▄     ▄    ▀▄  ▀    ▄▀  ▄ ▄  ▀         ▀     ▀▄ ▄                 ▄ ▄
▄▀ ▀ ▀ ▀ ▀   ▀    ▄  ▀ ▀   ▀     ▀▄▀▄          ▀      ▄  ▀ ▀▄  ▀ ▀▄              ▀▄     ▄          ▀       ▀    ▄
▀ ▀  ▄      ▀    ▄ ▄     ▄    ▀  ▄ ▄   ▄   ▄▀     ▀     ▀▄   ▄▀      ▄▀  ▄      ▀ ▀ ▀▄▀ ▀  ▄  ▀ ▀▄ ▄        ▀▄▀         ▀
▄ ▄                     ▄ ▄   ▄ ▄     ▄    ▀▄ ▄  ▀  ▄▀ ▀▄ ▄▀             ▀  ▄▀▄ ▄     ▄ ▄      ▀▄ ▄     ▄  ▀
▀▄▀   ▀▄    ▀           ▀▄▀     ▀       ▀     ▀▄▀▄     ▄   ▄          ▀▄    ▀▄           ▄▀   ▀     ▀▄    ▀      ▄▀
▄         ▄         ▄ ▄       ▄         ▄ ▄               ▄▀  ▄▀ ▀   ▀▄   ▄ ▄      ▀ ▀ ▀▄  ▀ ▀   ▀     ▀     ▀ ▀ ▀  ▄▀▄▀ ▀
▄   ▄▀    ▄            ▀▄    ▀    ▄     ▄▀▄   ▄▀▄  ▀  ▄ ▄     ▄▀ ▀  ▄  ▀        ▄           ▄▀     ▀
▀   ▀▄  ▀  ▄      ▀ ▀  ▄          ▀▄  ▀ ▀▄     ▄   ▄▀      ▄    ▀▄  ▀     ▀ ▀    ▄▀          ▄          ▀           ▀ ▀
▄   ▄         ▄   ▄   ▄      ▀▄▀▄ ▄ ▄▀   ▀  ▄     ▄▀   ▀ ▀  ▄▀▄▀ ▀▄     ▄ ▄     ▄  ▀            ▄    ▀▄  ▀    ▄▀
▀           ▀     ▀                       ▀     ▀   ▀ ▀▄ ▄     ▄   ▄  ▀▄ ▄  ▀▄ ▄ ▄▀  ▄ ▄     ▄ ▄         ▄▀▄
▀       ▀       ▀     ▀     ▀ ▀ ▀     ▀   ▀   ▀   ▀ ▀   ▀▄ ▄   ▄▀   ▀ ▀         ▀▄          ▀▄    ▀       ▀   ▀ ▀
▄   ▄▀▄▀         ▀ ▀▄  ▀▄ ▄  ▀▄ ▄  ▀ ▀▄  ▀▄ ▄ ▄ ▄▀▄ ▄▀▄▀▄   ▄▀ ▀ ▀  ▄  ▀ ▀ ▀  ▄ ▄         ▄▀ ▀          ▄▀ ▀  ▄  ▀▄▀ ▀
▄   ▄ ▄         ▄           ▄ ▄   ▄     ▄             ▄   ▄▀ █▄▀▄ ▄ ▄   ▄ ▄▀▄     ▄    ▀  ▄ ▄▀▄ ▄             ▄▀  ▄ ▄   ▄
▀   ▀    ▄▀         ▀ ▀ ▀  ▄    ▀ ▀       ▀       ▀▄▀ ▀▄
▀   ▀  ▄ ▄       ▄ ▄   ▄   ▄▀ ▀  ▄  ▀  ▄▀ ▀▄  ▀▄▀   ▀▄  ▀ ▀▄ ▄▀  ▄▀ ▀   ▀▄  ▀ ▀▄     ▄▀  ▄ ▄▀   ▀ ▀    ▄  ▀▄▀   ▀
▀                ▄▀▄    ▀▄    ▀    ▄ ▄         ▄ ▄  ▀  ▄   ▄   ▄▀      ▄ ▄  ▀    ▄      ▀▄   ▄     ▄   ▄  ▀  ▄  ▀
▄  ▀   ▀ ▀        ▄▀ ▀ ▀ ▀             ▀ ▀▄    ▀▄  ▀  ▄   ▄ ▄  ▀       ▀     ▀         ▀     ▀           ▀     ▀
▀▄  ▀  ▄  ▀▄   ▄ ▄▀  ▄   ▄    ▀▄ ▄       ▄ ▄ ▄ ▄    ▀ ▀  ▄▀▄    ▀▄  ▀  ▄ ▄▀  ▄▀▄▀ ▀▄       ▄▀  ▄ ▄   ▄ ▄    ▀▄▀ ▀
▄ ▄     ▄    ▀    ▄ ▄     ▄     ▄     ▄   ▄▀▄  ▀  ▄     ▄  ▀▄▀▄           ▄     ▄   ▄ ▄ ▄     ▄ ▄         ▄   ▄
▀      ▄          ▀   ▀  ▄  ▀ ▀ ▀ ▀ ▀▄    ▀ ▀       ▀▄ ▄   ▄ ▄▀       ▀▄    ▀▄            ▀   ▀      ▄     ▄     ▄▀    ▄
▀        ▄ ▄ ▄▀   ▀    ▄▀      ▄      ▀▄       ▄ ▄▀   ▀▄    ▀     ▀      ▄  ▀ ▀     ▀  ▄    ▀▄  ▀▄▀   ▀ ▀▄▀          ▄
▄   ▄     ▄ ▄    ▀     ▀          ▄▀▄    ▀   ▀       ▀           ▀   ▀▄    ▀▄   ▄     ▄▀     ▀  ▄   ▄    ▀    ▄      ▀
▄        ▀   ▀    ▄▀   ▀ ▀    ▄  ▀   ▀ ▀   ▀    ▄▀    ▄   ▄ ▄▀             ▀▄    ▀▄▀     ▀    ▄    ▀ ▀   ▀▄    ▀ ▀
▄    ▀▄▀     ▀  ▄      ▀      ▄ ▄ ▄▀     ▀▄     ▄   ▄▀▄   ▄  ▀    ▄     ▄    ▀   ▀     ▀        ▄  ▀ ▀▄    ▀▄ ▄▀
▄    ▀          ▄     ▄      ▀    ▄            ▀▄     ▄   ▄ ▄     ▄   ▄▀   ▀▄               ▄ ▄ ▄ ▄   ▄         ▄ ▄
▀         ▀  ▄▀   ▀            ▄▀ ▀     ▀  ▄         ▄        ▀  ▄ ▄     ▄▀ ▀▄ ▄        ▀ ▀    ▄    ▀ ▀     ▀         ▀
▄▀     ▀  ▄ ▄ ▄ ▄ ▄▀▄▀▄     ▄ ▄  ▀        ▄     ▄       ▄   ▄▀ ▀    ▄    ▀       ▀   ▀   ▀   ▀             ▀ ▀     ▀ ▀ ▀
▄         ▄           ▄▀▄   ▄          ▀  ▄    ▀▄  ▀▄▀   ▀ ▀▄         ▄    ▀▄    ▀    ▄▀▄ ▄  ▀▄   ▄
▀ ▀    ▄     ▄    ▀▄▀ ▀   ▀     ▀ ▀  ▄▀     ▀ ▀           ▀  ▄▀        ▄     ▄ ▄  ▀           ▀▄▀    ▄    ▀▄
▄      ▀▄     ▄  ▀ ▀        ▄        ▀     ▀  ▄▀▄    ▀▄   ▄▀                ▄▀ ▀    ▄    ▀  ▄▀   ▀▄▀  ▄ ▄  ▀▄ ▄  ▀
▄      ▀          ▄    ▀▄           ▄▀    ▄▀▄    ▀   ▀     ▀▄▀    ▄    ▀▄▀            ▄  ▀          ▄ ▄       ▄  ▀
▄              ▀ ▀      ▄  ▀▄    ▀▄ ▄  ▀   ▀  ▄ ▄  ▀         ▀  ▄     ▄                   ▄  ▀▄            ▀         ▀
▀▄  ▀▄ ▄  ▀  ▄   ▄▀        ▄▀                       ▀ ▀  ▄▀      ▄▀     ▀   ▀      ▄▀  ▄ ▄        ▀ ▀▄▀▄  ▀▄    ▀   ▀
▄    ▀    ▄      ▀          ▄      ▀▄  ▀ ▀   ▀       ▀▄         ▄    ▀▄    ▀     ▀ ▀▄   ▄ ▄    ▀▄              ▀      ▄
▀ ▀         ▀ ▀▄        ▀  ▄    ▀        ▄▀    ▄▀  ▄ ▄▀  ▄    ▀   ▀     ▀ ▀▄     ▄  ▀ ▀      ▄     ▄           ▄
▀ ▀▄    ▀  ▄▀ ▀    ▄         ▄  ▀    ▄    ▀ ▀        ▄▀▄▀   ▀    ▄▀            ▄   ▄ ▄▀     ▀   ▀▄     ▄    ▀       ▀   ▀
▀    ▄    ▀  ▄   ▄▀         ▀  ▄   ▄ ▄  ▀  ▄  ▀ ▀                ▄     ▄    ▀ ▀     ▀▄  ▀ ▀▄     ▄       ▄ ▄   ▄   ▄
▀ ▀        ▄       ▄      ▀ ▀           ▀▄    ▀▄ ▄▀     ▀  ▄       ▄   ▄  ▀ ▀▄       ▄  ▀▄    ▀   ▀  ▄            ▀     ▀
▄ ▄          ▀        ▄ ▄    ▀ ▀  ▄       ▄               ▄▀    ▄  ▀    ▄     ▄         ▄▀       ▀   ▀     ▀   ▀     ▀
▄ ▄  ▀▄▀    ▄          ▀▄     ▄     ▄▀      ▄  ▀  ▄  ▀▄ ▄     ▄  ▀           ▀        ▄   ▄▀     ▀   ▀    ▄ ▄
▀ ▀▄           ▄  ▀           ▀ ▀▄       ▄▀ ▀  ▄      ▀  ▄  ▀    ▄  ▀   ▀       ▀  ▄   ▄    ▀        ▄     ▄        ▀
▄     ▄      ▀     ▀▄     ▄            ▀  ▄▀    ▄  ▀   ▀▄     ▄▀     ▀     ▀  ▄▀                  ▄         ▄▀▄▀    ▄  ▀
▀  ▄  ▀▄     ▄     ▄▀▄     ▄  ▀▄▀▄  ▀                   ▀    ▄ ▄                           ▄▀    ▄▀▄  ▀▄    ▀▄
```

The method of presentation of the result consulted " REXX ".

## Rust

Translation of: Kotlin
Works with: Rust version 1.11.0
```use std::fmt;

enum Direction { RIGHT, UP, LEFT, DOWN }
use ulam::Direction::*;

/// Indicates whether an integer is a prime number or not.
fn is_prime(a: u32) -> bool {
match a {
2 => true,
x if x <= 1 || x % 2 == 0 => false,
_ => {
let max = f64::sqrt(a as f64) as u32;
let mut x =  3;
while x <= max {
if a % x == 0 { return false; }
x += 2;
}
true
}
}
}

pub struct Ulam { u : Vec<Vec<String>> }

impl Ulam {
/// Generates one `Ulam` object.
pub fn new(n: u32, s: u32, c: char) -> Ulam {
let mut spiral = vec![vec![String::new(); n as usize]; n as usize];
let mut dir = RIGHT;
let mut y = (n / 2) as usize;
let mut x = if n % 2 == 0 { y - 1 } else { y }; // shift left for even n's
for j in s..n * n + s {
spiral[y][x] = if is_prime(j) {
if c == '\0' { format!("{:4}", j) } else { format!("  {} ", c) }
}
else { String::from(" ---") };

match dir {
RIGHT => if x as u32 <= n - 1 && spiral[y - 1][x].is_empty() && j > s { dir = UP; },
UP => if spiral[y][x - 1].is_empty() { dir = LEFT; },
LEFT => if x == 0 || spiral[y + 1][x].is_empty() { dir = DOWN; },
DOWN => if spiral[y][x + 1].is_empty() { dir = RIGHT; }
};

match dir { RIGHT => x += 1, UP => y -= 1, LEFT => x -= 1, DOWN => y += 1 };
}
Ulam { u: spiral }
}
}

impl fmt::Display for Ulam {
fn fmt(&self, f: &mut fmt::Formatter) -> fmt::Result {
for row in &self.u {
writeln!(f, "{}", format!("{:?}", row).replace("\"", "").replace(", ", ""));
};
writeln!(f, "")
}
}
```

main.rs :

```mod ulam;
use ulam::*;

// Program entry point.
fn main() {
print!("{}", Ulam::new(9, 1, '\0'));
print!("{}", Ulam::new(9, 1, '*'));
}
```
Output:
```[ --- --- --- ---  61 ---  59 --- ---]
[ ---  37 --- --- --- --- ---  31 ---]
[  67 ---  17 --- --- ---  13 --- ---]
[ --- --- ---   5 ---   3 ---  29 ---]
[ --- ---  19 --- ---   2  11 ---  53]
[ ---  41 ---   7 --- --- --- --- ---]
[  71 --- --- ---  23 --- --- --- ---]
[ ---  43 --- --- ---  47 --- --- ---]
[  73 --- --- --- --- ---  79 --- ---]

[ --- --- --- ---  *  ---  *  --- ---]
[ ---  *  --- --- --- --- ---  *  ---]
[  *  ---  *  --- --- ---  *  --- ---]
[ --- --- ---  *  ---  *  ---  *  ---]
[ --- ---  *  --- ---  *   *  ---  * ]
[ ---  *  ---  *  --- --- --- --- ---]
[  *  --- --- ---  *  --- --- --- ---]
[ ---  *  --- --- ---  *  --- --- ---]
[  *  --- --- --- --- ---  *  --- ---]```

## Scala

Translation of: Kotlin
```object Ulam extends App {
generate(9)()
generate(9)('*')

private object Direction extends Enumeration { val RIGHT, UP, LEFT, DOWN = Value }

private def generate(n: Int, i: Int = 1)(c: Char = 0) {
assert(n > 1, "n > 1")
val s = new Array[Array[String]](n).transform {_ => new Array[String](n) }

import Direction._
var dir = RIGHT
var y = n / 2
var x = if (n % 2 == 0) y - 1 else y // shift left for even n's
for (j <- i to n * n - 1 + i) {
s(y)(x) = if (isPrime(j)) if (c == 0) "%4d".format(j) else s"  \$c " else " ---"

dir match {
case RIGHT => if (x <= n - 1 && s(y - 1)(x) == null && j > i) dir = UP
case UP => if (s(y)(x - 1) == null) dir = LEFT
case LEFT => if (x == 0 || s(y + 1)(x) == null) dir = DOWN
case DOWN => if (s(y)(x + 1) == null) dir = RIGHT
}

dir match {
case RIGHT => x += 1
case UP => y -= 1
case LEFT => x -= 1
case DOWN => y += 1
}
}
println("[" + s.map(_.mkString("")).reduceLeft(_ + "]\n[" + _) + "]\n")
}

private def isPrime(a: Int): Boolean = {
if (a == 2) return true
if (a <= 1 || a % 2 == 0) return false
val max = Math.sqrt(a.toDouble).toInt
for (n <- 3 to max by 2)
if (a % n == 0) return false
true
}
}
```

## Sidef

Translation of: Perl
```require('Imager')

var (n=512, start=1, file='ulam.png')

ARGV.getopt(
'n=i' => \n,
's=i' => \start,
'f=s' => \file,
)

func cell(n, x, y, start) {
y -= (n   >> 1)
x -= (n-1 >> 1)
var l = 2*(x.abs > y.abs ? x.abs : y.abs)
var d = (y > x ? (l*3 + x + y) : (l - x - y))
(l-1)**2 + d + start - 1
}

var black = %O<Imager::Color>.new('#000000')
var white = %O<Imager::Color>.new('#FFFFFF')

var img = %O<Imager>.new(xsize => n, ysize => n, channels => 1)
img.box(filled => 1, color => white)

for y=(^n), x=(^n) {
if (cell(n, x, y, start).is_prime) {
img.setpixel(x => x, y => y, color => black)
}
}

img.write(file => file)
```

Output image: Ulam spiral

## Tcl

This uses a coroutine to walk around the circle, laying glyphs every prime number of tiles. Some more elaborate, interactive Tk GUIs for playing with Ulam spirals are at Ulam Spiral and Ulam Spiral Demo on the Tcl'ers Wiki.

```proc is_prime {n} {
if {\$n == 1} {return 0}
if {\$n in {2 3 5}} {return 1}
for {set i 2} {\$i*\$i <= \$n} {incr i} {
if {\$n % \$i == 0} {return 0}
}
return 1
}

proc spiral {w h} {
yield [info coroutine]
set x [expr {\$w / 2}]
set y [expr {\$h / 2}]
set n 1
set dir 0
set steps 1
set step 1
while {1} {
yield [list \$x \$y]
switch \$dir {
0   {incr x}
1   {incr y -1}
2   {incr x -1}
3   {incr y}
}
if {![incr step -1]} {
set dir [expr {(\$dir+1)%4}]
if {\$dir % 2 == 0} {
incr steps
}
set step \$steps
}
}
}

set side  [expr {1 + 2 * \$radius}]
set n     [expr {\$side * \$side}]
set cells [lrepeat \$side [lrepeat \$side ""]]
set i     1

coroutine spin spiral \$side \$side

while {\$i < \$n} {
lassign [spin] y x
set c [expr {[is_prime \$i] ? "\u169b" : " "}]
lset cells \$x \$y \$c
incr i
}

puts [join [lmap row \$cells {join \$row " "}] \n]
```

The mark used is Unicode's OGHAM FEATHER MARK .. the closest I could find to a Tcl logo.

Output:
```        ᚛   ᚛           ᚛       ᚛                       ᚛
᚛       ᚛   ᚛       ᚛
᚛       ᚛               ᚛       ᚛   ᚛
᚛       ᚛                       ᚛   ᚛           ᚛
᚛   ᚛           ᚛   ᚛           ᚛           ᚛
᚛                       ᚛       ᚛
᚛           ᚛       ᚛               ᚛           ᚛
᚛       ᚛                   ᚛       ᚛   ᚛       ᚛   ᚛   ᚛
᚛               ᚛           ᚛                   ᚛   ᚛       ᚛
᚛           ᚛       ᚛   ᚛                               ᚛
᚛   ᚛           ᚛       ᚛       ᚛
᚛       ᚛       ᚛   ᚛       ᚛               ᚛       ᚛   ᚛
᚛   ᚛       ᚛
᚛       ᚛   ᚛           ᚛   ᚛   ᚛           ᚛   ᚛
᚛   ᚛   ᚛   ᚛   ᚛   ᚛   ᚛   ᚛       ᚛               ᚛
᚛   ᚛   ᚛                       ᚛
᚛       ᚛     ᚛ ᚛   ᚛   ᚛   ᚛       ᚛   ᚛   ᚛
᚛               ᚛   ᚛   ᚛
᚛       ᚛
᚛       ᚛   ᚛       ᚛   ᚛       ᚛       ᚛   ᚛       ᚛       ᚛
᚛       ᚛       ᚛           ᚛           ᚛   ᚛       ᚛
᚛                       ᚛
᚛   ᚛           ᚛       ᚛       ᚛               ᚛
᚛       ᚛                       ᚛               ᚛
᚛           ᚛           ᚛       ᚛   ᚛
᚛   ᚛       ᚛           ᚛       ᚛
᚛   ᚛   ᚛   ᚛                   ᚛   ᚛           ᚛           ᚛   ᚛
᚛       ᚛                       ᚛   ᚛
᚛   ᚛           ᚛           ᚛       ᚛   ᚛
᚛               ᚛                   ᚛               ᚛
᚛   ᚛       ᚛   ᚛                   ᚛
᚛       ᚛           ᚛           ᚛
᚛   ᚛           ᚛                                   ᚛   ```

## VBScript

```Function build_spiral(n)
'declare a two dimentional array
Dim matrix()
ReDim matrix(n-1,n-1)
'determine starting point
x = (n-1)/2 : y = (n-1)/2
'set the initial iterations
x_max = 1 : y_max = 1 : count = 1
'set initial direction
dir = "R"
'populate the array
For i = 1 To n*n
l = Len(n*n)
If IsPrime(i) Then
matrix(x,y) = Right("000" & i,l)
Else
matrix(x,y) = String(l,"-")
End If
Select Case dir
Case "R"
If x_max > 0 Then
x = x + 1 : x_max = x_max - 1
Else
dir = "U" : y_max = count
y = y - 1 : y_max = y_max - 1
End If
Case "U"
If y_max > 0 Then
y = y - 1 : y_max = y_max - 1
Else
dir = "L" : count = count + 1 : x_max = count
x = x - 1 : x_max = x_max - 1
End If
Case "L"
If x_max > 0 Then
x = x - 1 : x_max = x_max - 1
Else
dir = "D" : y_max = count
y = y + 1 : y_max = y_max - 1
End If
Case "D"
If y_max > 0 Then
y = y + 1 : y_max = y_max - 1
Else
dir = "R" : count = count + 1 : x_max = count
x = x + 1 : x_max = x_max - 1
End If
End Select
Next
'print the matrix
For y = 0 To n - 1
For x = 0 To n - 1
If x = n - 1 Then
WScript.StdOut.Write matrix(x,y)
Else
WScript.StdOut.Write matrix(x,y) & vbTab
End If
Next
WScript.StdOut.WriteLine
Next
End Function

Function IsPrime(n)
If n = 2 Then
IsPrime = True
ElseIf n <= 1 Or n Mod 2 = 0 Then
IsPrime = False
Else
IsPrime = True
For i = 3 To Int(Sqr(n)) Step 2
If n Mod i = 0 Then
IsPrime = False
Exit For
End If
Next
End If
End Function

'test with 9
build_spiral(9)```
Output:
```--	--	--	--	61	--	59	--	--
--	37	--	--	--	--	--	31	--
67	--	17	--	--	--	13	--	--
--	--	--	05	--	03	--	29	--
--	--	19	--	--	02	11	--	53
--	41	--	07	--	--	--	--	--
71	--	--	--	23	--	--	--	--
--	43	--	--	--	47	--	--	--
73	--	--	--	--	--	79	--	--
```

## Wren

Translation of: Kotlin
Library: Wren-dynamic
Library: Wren-math
Library: Wren-str
Library: Wren-fmt
```import "./dynamic" for Enum
import "./math" for Int
import "./str" for Char
import "./fmt" for Fmt

var Direction = Enum.create("Direction", ["right", "up", "left", "down"])

class Ulam {
static generate(n, i, c) {
if (n <= 1) Fiber.abort ("'n' must be more than 1.")
var s = List.filled(n, null)
for (i in 0...n) s[i] = List.filled(n, "")
var dir = Direction.right
var y = (n/2).floor
var x = (n % 2 == 0) ? y - 1 : y  // shift left for even n's
for (j in i..n * n - 1 + i) {
s[y][x] = Int.isPrime(j) ? (Char.isDigit(c) ? Fmt.d(4, j) : "  %(c) ") : " ---"
if (dir == Direction.right) {
if (x <= n - 1 && s[y - 1][x] == "" && j > i) dir = Direction.up
} else if (dir == Direction.up) {
if (s[y][x - 1] == "") dir = Direction.left
} else if (dir == Direction.left) {
if (x == 0 || s[y + 1][x] == "") dir = Direction.down
} else if (dir == Direction.down) {
if (s[y][x + 1] == "") dir = Direction.right
}

if (dir == Direction.right) {
x = x + 1
} else if (dir == Direction.up) {
y = y - 1
} else if (dir == Direction.left) {
x = x - 1
} else if (dir == Direction.down) {
y = y + 1
}
}

for (row in s) Fmt.print("\$s", row)
System.print()
}
}

Ulam.generate(9, 1, "0") // with digits
Ulam.generate(9, 1, "*") // with *
```
Output:
``` ---  ---  ---  ---   61  ---   59  ---  ---
---   37  ---  ---  ---  ---  ---   31  ---
67  ---   17  ---  ---  ---   13  ---  ---
---  ---  ---    5  ---    3  ---   29  ---
---  ---   19  ---  ---    2   11  ---   53
---   41  ---    7  ---  ---  ---  ---  ---
71  ---  ---  ---   23  ---  ---  ---  ---
---   43  ---  ---  ---   47  ---  ---  ---
73  ---  ---  ---  ---  ---   79  ---  ---

---  ---  ---  ---   *   ---   *   ---  ---
---   *   ---  ---  ---  ---  ---   *   ---
*   ---   *   ---  ---  ---   *   ---  ---
---  ---  ---   *   ---   *   ---   *   ---
---  ---   *   ---  ---   *    *   ---   *
---   *   ---   *   ---  ---  ---  ---  ---
*   ---  ---  ---   *   ---  ---  ---  ---
---   *   ---  ---  ---   *   ---  ---  ---
*   ---  ---  ---  ---  ---   *   ---  ---
```

## XPL0

```func IsPrime(N);        \Return 'true' if N is prime
int  N, I;
[if N <= 2 then return N = 2;
if (N&1) = 0 then \even >2\ return false;
for I:= 3 to sqrt(N) do
[if rem(N/I) = 0 then return false;
I:= I+1;
];
return true;
];

int N, X, Y, Len, Dir, DX, DY, Side, Step;
[SetVid(\$13);
X:= 320/2;  Y:= 200/2;
N:= 1;
Len:= 1;
Dir:= 0;        \Rt, Up, Lt, Dn
DX:= [1, 0, -1, 0];
DY:= [0, -1, 0, 1];
repeat  for Side:= 1 to 2 do
[for Step:= 1 to Len do
[if IsPrime(N) then Point(X, Y, \$F);
N:= N+1;
X:= X + DX(Dir); \move in current direction
Y:= Y + DY(Dir);
];
Dir:= (Dir+1) & 3;   \set next direction
];
Len:= Len+1;
until   Y = 0;                  \reached top
]```

## Yabasic

Translation of: Phix
```sub is_prime(n)
local p

for p=2 to n
if p*p>n break
if mod(n,p)=0 return false
next
return n>=2
end sub

sub spiral(w, h, x, y)
if y then
return w+spiral(h-1,w,y-1,w-x-1)
else
return x
end if
end sub

w = 9 : h = 9
for i=h-1 to 0 step -1
for j=w-1 to 0 step -1
p = w*h-spiral(w,h,j,i)
print mid\$(" o", is_prime(p) + 1, 1);
next
print
next```

## zkl

Simulates turtle graphics, spiral by walking straight while holding left hand against the wall dropping prime breadcrumbs.

Using Extensible prime generator#zkl and the PPM class from http://rosettacode.org/wiki/Bitmap/Bresenham%27s_line_algorithm#zkl.

```var primes =Utils.Generator(Import("sieve.zkl").postponed_sieve);  // lazy
var offsets=Utils.cycle( T(0,1),T(-1,0),T(0,-1),T(1,0) );  // (N,E,S,W), lazy
const BLACK=0, WHITE=0xff|ff|ff, GREEN=0x00|ff|00, EMPTY=0x080|80|80;
fcn uspiral(N){
if((M:=N).isEven) M+=1;  // need odd width, height
img,p := PPM(M,M,EMPTY), primes.next(); // 2 .. 250,007: 22,045 primes
x,y,n := N/2,x,2; img[x,y]=GREEN; x+=1; // start on 2 facing "north"
while(True){
ox,oy:=offsets.next(); leftx,lefty:=offsets.peek();  // set direction
while(True){
img[x,y]=( if(n==p){ p=primes.next(); WHITE } else BLACK );
if(n==N*N) break(2); // all done
n+=1;
if(img[x+leftx,y+lefty]==EMPTY) // nothing to my left, turn left
{ x+=leftx; y+=lefty; break; }
x+=ox; y+=oy;	// move in a straight line
}
}
}

uspiral(500).write(File("ulamSpiral.ppm","wb"));```
Output:

A PPM image similar to that shown in Raku but denser. A green dot marks the center.

## ZX Spectrum Basic

a simplistic naive procedure that on a real machine will take some DAYS at the max of 176x176 numbers to check

RUN 10 , to start

<syntaxhighlight lang="ZX Spectrum Basic">

```  1 IF n<max THEN  LET n=n+1: FOR p=2 TO n-1: LET r= (INT (n/p)<>n/p): IF r THEN  NEXT p
2 IF p=n THEN  LET pr=pr+1: LET kx=(255-xx AND k<3)+(xx AND k>2): LET ky=(175-yy AND (k=1 OR k=3)+(yy AND (k=2 OR k=4))): PLOT kx,ky: PRINT #0;AT 0,0;n;" pr";pr
3 RETURN
10 CLS : PRINT "ULAM SPIRAL OF PRIME's""it takes DAYS at max level"'"and 3.5MHz"
12 INPUT "square size= LxL"'"l: ";l: IF l<>INT l OR l<1 OR l>176 THEN  GO TO 12
13 LET max=l*l: PRINT l;"x";l;"=";max;" positive integers"
15 INPUT "0,0 orientation  1-4: ";k: IF k<1 OR k>4 THEN  GO TO 15
20 CLS : LET xx=127: LET yy=88: LET n=0: LET pr=0: PRINT #0;AT 0,15;max
40 FOR q=0 TO l: LET m=INT (q/2)=q/2: LET m=-1*m+NOT m
60 FOR x=0 TO q*m STEP m: GO SUB 1 : LET xx=xx+m: NEXT x
80 FOR y=0 TO q*m STEP m: GO SUB 1 : LET yy=yy+m: NEXT y: NEXT q
```
